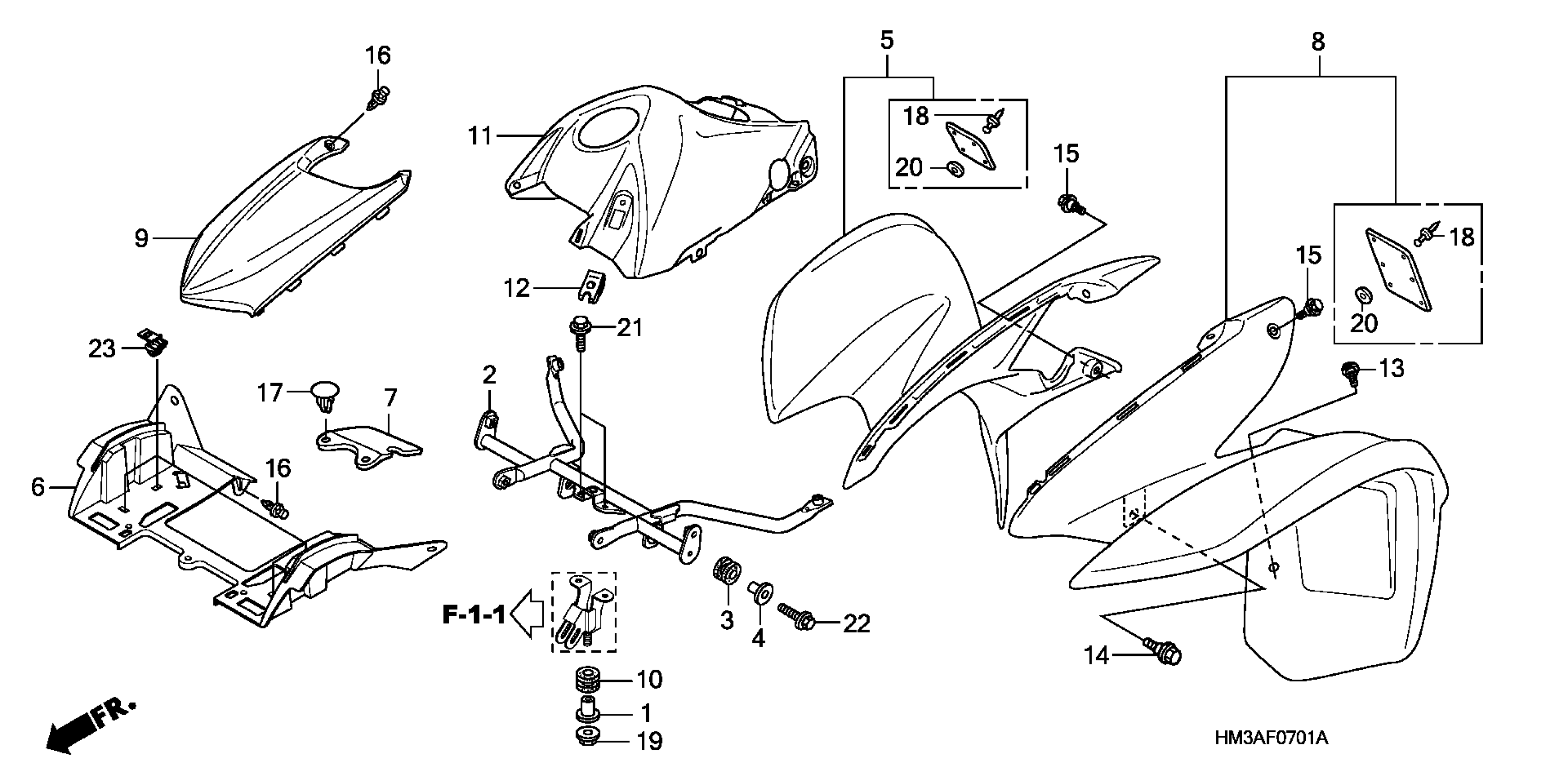

Honda TRX300EXA (07) SPORTRAX 300EX, JPN, VIN# JH2TE190-7K200001 TO JH2TE190-7K299999 FRONT FENDER (TRX300EX'07-) Diagram

COLLAR, MUFFLER MOUNTING

18423-KR3-600

$5.12

STAY, FR. FENDER

61103-HM3-A60

Unavailable

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

FENDER SET, R. FR. (TYPE1) (WL) | Nitro red R299R;

61110-HM3-A60ZC

Unavailable

FENDER SET, R. FR. (TYPE2) (WL) | Chaos black metallic-r NHA79MR;

61110-HM3-A60ZD

Unavailable

GUIDE, AIR

61120-HM3-A60

Unavailable

GUIDE, RR. AIR

61121-HC0-000

Unavailable

FENDER SET, L. FR. (TYPE1) (WL) | Nitro red R299R;

61210-HM3-A60ZC

Unavailable

FENDER SET, L. FR. (TYPE2) (WL) | Chaos black metallic-r NHA79MR;

61210-HM3-A60ZD

$307.46

COVER SET, FR. *NHA79MR* (WL) (CHAOS BLACK METALLIC-R)

61310-HM3-A60ZB

$53.46

RUBBER, HEADLIGHT MOUNTING

61328-MJ6-000

$2.83

COVER, TANK *NHA79MR* (CHAOS BLACK METALLIC-R)

83500-HM3-A60ZB

Unavailable

NUT, FENDER SETTING

84601-HA7-670

$5.54

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, TRIM (7MM)

90667-SL0-003

$5.85

RIVET, POP (3.2)

90841-HF1-670

$1.62

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (3MM)

94103-03800

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67
