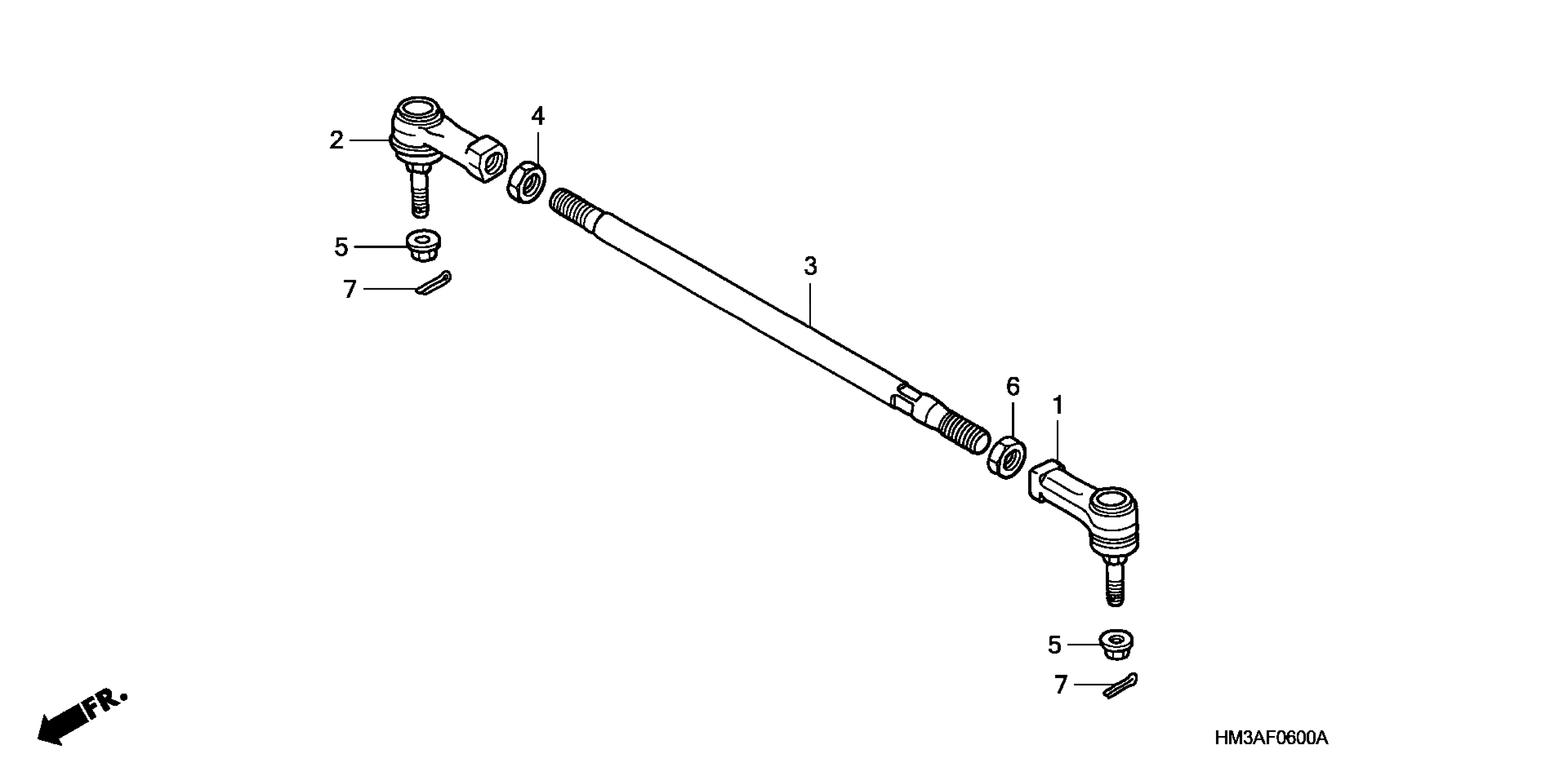

Honda TRX300EXA (06) SPORTRAX 300EX, JPN, VIN# JH2TE190-6K100001 TO JH2TE190-6K199999 TIE ROD Diagram

#

Description

Price

1

END, TIE ROD This part replaces 53157-HB9-003.

53157-HB9-004

Unavailable

2

END, TIE ROD (LEFT HAND THREAD) This part replaces 53158-HB9-003.

53158-HB9-004

Unavailable

3

TIE ROD This part replaces 53521-HC0-003.

53521-HC0-004

$19.98

3

TIE ROD

53521-HC0-004

$19.98

4

NUT, TIE ROD LOCK (LEFT HAND THREAD) (INSIDE)

53526-679-000

$3.10

5

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

6

NUT, HEX. (12MM) (OUTSIDE)

94031-12280

$1.49

7

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

7

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$1.49

7

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

7

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$1.49

7

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

7

PIN, COTTER (1.6X25)

94201-16250

$1.49
