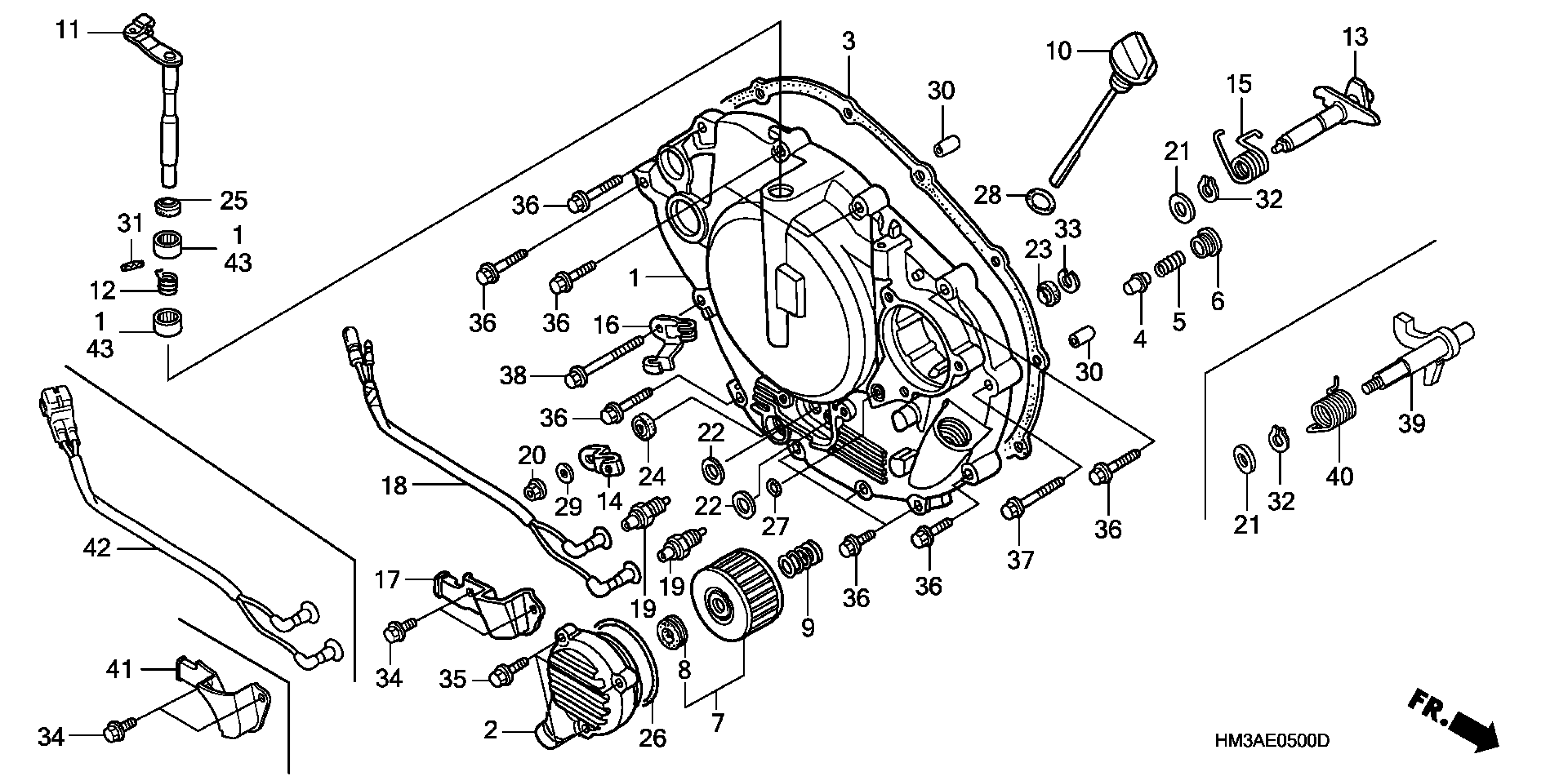

Honda TRX300EXA (06) SPORTRAX 300EX, JPN, VIN# JH2TE190-6K100001 TO JH2TE190-6K199999 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-HM3-670

Unavailable

2

COVER, OIL FILTER

11333-HC0-000

Unavailable

3

GASKET, R. CRANKCASE COVER

11394-HM3-670

$23.66

4

VALVE, RELIEF

15231-HM3-670

$12.43

5

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

6

CAP, RELIEF VALVE

15235-HM3-670

$21.69

7

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

8

RUBBER, FILTER

15413-MC8-000

$3.35

9

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

10

DIPSTICK, OIL

15650-HC0-000

$23.64

11

LEVER, CLUTCH

22810-HM3-670

$76.56

12

SPRING, CLUTCH LEVER

22815-HA5-000

$4.15

13

SHAFT, REVERSE STOPPER

24860-HC0-000

Unavailable

14

LEVER, REVERSE STOPPER

24865-HC0-000

$8.74

15

SPRING, REVERSE STOPPER

24867-HC0-000

Unavailable

16

HOLDER, REVERSE STOPPER WIRE

24871-HC0-000

Unavailable

17

COVER, SWITCH HARNESS

24880-HM3-670

Unavailable

18

WIRE, CHANGE SWITCH

32102-HM3-670

Unavailable

19

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

20

NUT, U (6MM)

90301-473-003

$4.07

21

WASHER, GEAR This part replaces 90531-ZV0-000.

90531-ZVA-000

$6.45

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

23

OIL SEAL (14X22X5) (ARAI)

91201-HM3-A61

$2.99

24

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

25

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

26

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

27

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

28

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

PIN, DOWEL (8X14)

94301-08140

$2.25

31

PIN, SPRING (3X10)

94305-30102

$1.74

32

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

33

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

34

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

35

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

36

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

37

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

38

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

43

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

43

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68
