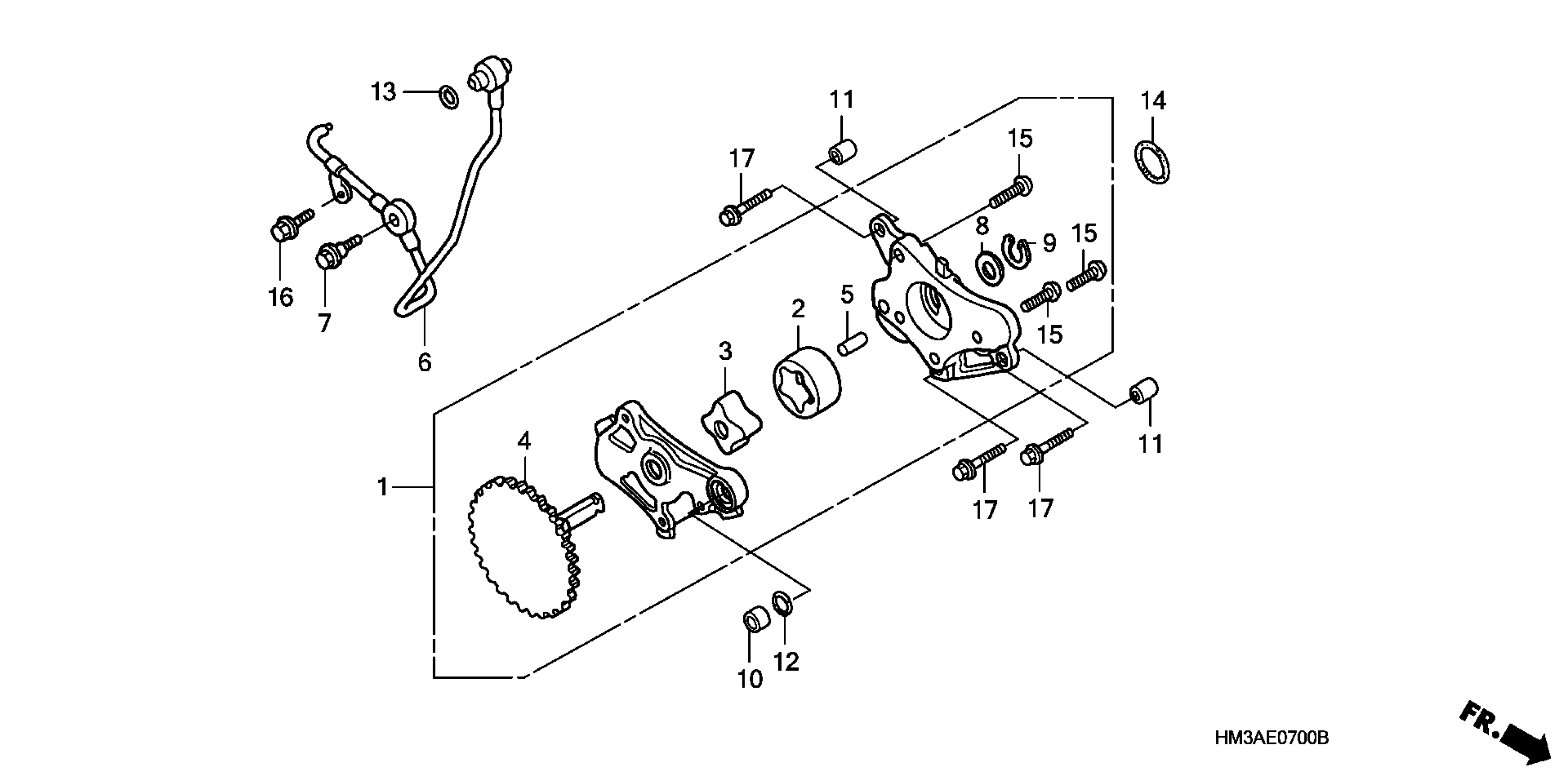

Honda TRX300EXA (06) SPORTRAX 300EX, JPN, VIN# JH2TE190-6K100001 TO JH2TE190-6K199999 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HC0-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15122-329-010

$19.96

ROTOR, OIL PUMP (INNER)

15123-329-010

$16.04

GEAR, OIL PUMP DRIVEN (34T)

15140-HC0-000

$108.62

ROLLER (6X8)

15141-KF0-000

Unavailable

PIPE, OIL

15510-HM3-670

Unavailable

BOLT, FLANGE (7X18.5)

15532-HA0-000

Unavailable

WASHER (8MM)

90465-HA0-000

Unavailable

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.79

PIN, DOWEL (10X10)

90702-MJ4-000

$3.01

PIN, DOWEL (8X10)

91103-429-000

$2.80

O-RING (10X2) (ARAI)

91304-HA5-003

$3.74

O-RING (8.2X1.5)

91308-MC7-000

$2.13

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.06

SCREW, PAN (5X22)

93500-05022-0A

$0.62

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
