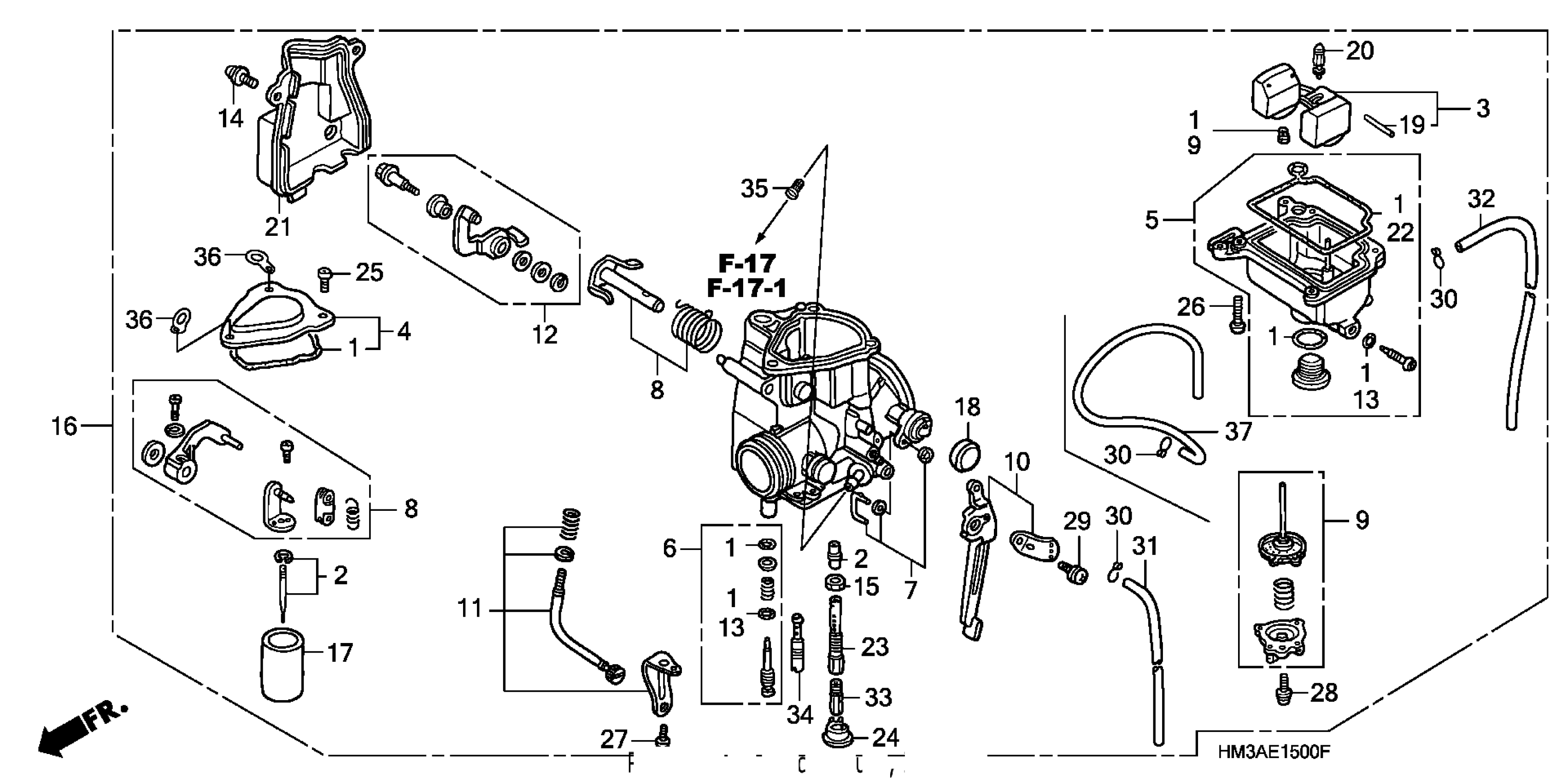

Honda TRX300EXA (06) SPORTRAX 300EX, JPN, VIN# JH2TE190-6K100001 TO JH2TE190-6K199999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HM3-L00.

16010-HM3-A61

$27.92

1

GASKET SET

16010-HM3-A61

$27.92

2

NEEDLE SET, JET

16012-HM3-L00

$56.79

3

FLOAT SET This part replaces 16013-HN0-003.

16013-KFR-701

Unavailable

3

FLOAT SET

16013-KFR-701

Unavailable

4

TOP SET

16014-HM3-L00

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-HM3-L00.

16015-HM3-A61

Unavailable

5

CHAMBER SET, FLOAT

16015-HM3-A61

Unavailable

6

SCREW SET

16016-HM3-L00

Unavailable

7

ROD SET, CHOKE

16017-HM3-L00

Unavailable

8

ARM SET, LINK

16018-HM3-L00

Unavailable

9

DIAPHRAGM SET, PUMP

16021-HM3-L00

$88.02

10

LEVER SET, CHOKE

16025-HM3-L00

$31.72

11

SCREW SET

16028-HM3-L00

$15.72

12

ARM SET, PUMP

16031-HM3-L00

$82.33

13

O-RING (1.3X4.3)

16076-ND5-004

$2.56

14

SCREW-WASHER

16080-HC0-003

$4.15

15

NUT, HEX.

16096-HC0-003

$4.15

16

CARBURETOR ASSY. (QB02B B)

16100-HM3-L01

Unavailable

17

VALVE, THROTTLE

16111-HC0-003

Unavailable

18

CAP, CHOKE DUST

16148-141-881

$4.75

19

PIN, ARM This part replaces 16152-HN5-671.

16152-HN8-003

$4.08

19

PIN, ARM

16152-HN8-003

$4.08

20

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$32.50

20

VALVE, FLOAT

16155-413-751

$32.50

21

COVER, BODY

16160-HC0-003

Unavailable

22

GASKET, FLOAT CHAMBER

16163-HM7-700

$10.04

23

HOLDER, NEEDLE JET

16165-MN9-004

Unavailable

24

HOLDER, JET

16168-HC4-003

$12.24

25

SCREW, PAN (4X8)

93500-04008-0H

$1.49

25

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

26

SCREW, PAN (4X14)

93500-04014-0H

$1.49

26

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

27

SCREW, PAN (6X10)

93500-06010-0H

$1.49

27

SCREW, PAN (6X10) This part replaces 93500-06010-1H.

93500-06010-0H

$1.49

28

SCREW-WASHER (4X12)

93892-04012-08

$1.49

28

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

29

SCREW-WASHER (5X10)

93892-05010-18

$1.49

30

CLIP, TUBE (B7)

95002-02079

$1.49

31

BULK HOSE, VACUUM (3.5X1000) (3.5X370)

95005-35001-50M

$13.72

32

BULK HOSE, VACUUM (3.5X1000) (3.5X420)

95005-35001-50M

$13.72

33

JET, MAIN (#122)

99101-357-1220

$17.99

33

JET, MAIN (#120) | (Optional).

99113-GHB-1200

$9.98

34

JET, SLOW (#38)

99103-420-0380

$10.80
