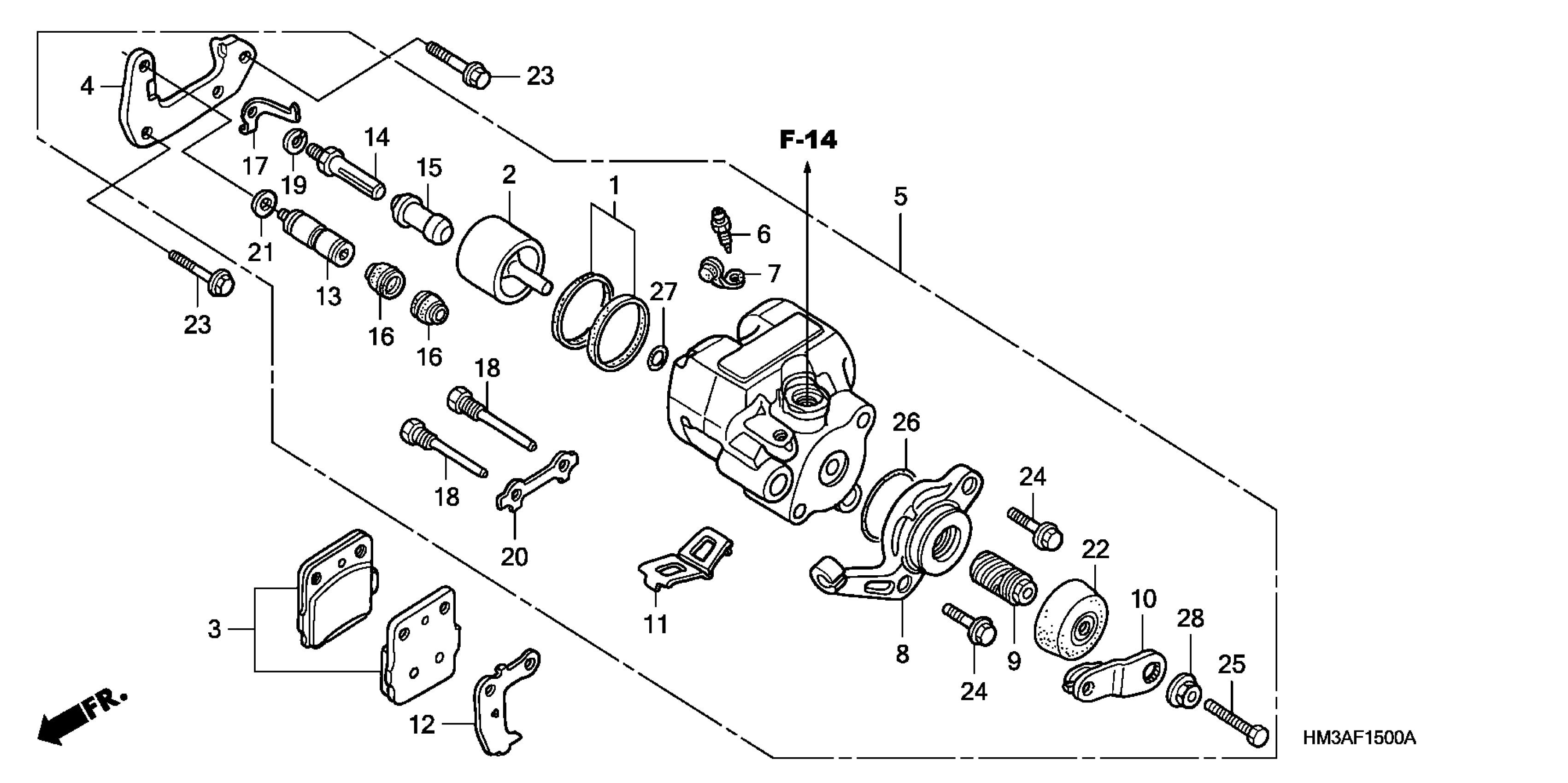

Honda TRX300EXA (04) SPORTRAX 300EX, JPN, VIN# JH3TE190-4K900001 TO JH3TE190-4K999999 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-961-405

$6.26

2

PISTON (NISSIN)

43109-HC0-681

$107.18

3

PAD SET, RR. (NISSIN)

43120-HA5-305

$39.09

4

BRACKET, RR.

43210-HC0-671

Unavailable

5

CALIPER SUB-ASSY., RR. BRAKE

43250-HM3-305

$377.06

6

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

7

CAP, BLEEDER

43353-461-771

Unavailable

8

BRAKE, PARKING

43360-HM3-006

Unavailable

9

SHAFT, L.

43361-961-006

$16.42

10

ARM

43362-HA2-006

Unavailable

11

SPRING, PAD

45108-166-006

$7.12

12

SHIM

45114-GE3-601

$5.65

13

PIN, SLIDE

45115-166-006

$15.86

14

BOLT, PIN

45131-166-016

$7.28

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

16

BOOT, PIN

45133-166-016

$3.43

17

INDICATOR, R.

45213-HC0-006

$3.38

18

PIN, HANGER

45215-166-006

$12.40

19

WASHER, WAVE

45216-166-006

$2.16

20

WASHER, TONGUED

45217-166-006

$5.08

21

WASHER, CONICAL SPRING

45218-166-006

$3.62

22

DUST SEAL, MASTER CYLINDER

46184-611-000

$12.17

23

BOLT, FLANGE (8X28)

90102-KV3-700

$3.74

24

BOLT (8X25)

90116-410-006

$5.80

25

BOLT (8X40)

90126-961-006

$4.92

26

O-RING (31)

91357-964-006

$4.12

27

O-RING (P8)

91358-964-006

$2.21

28

NUT-WASHER (8MM)

94071-08080

$1.46
