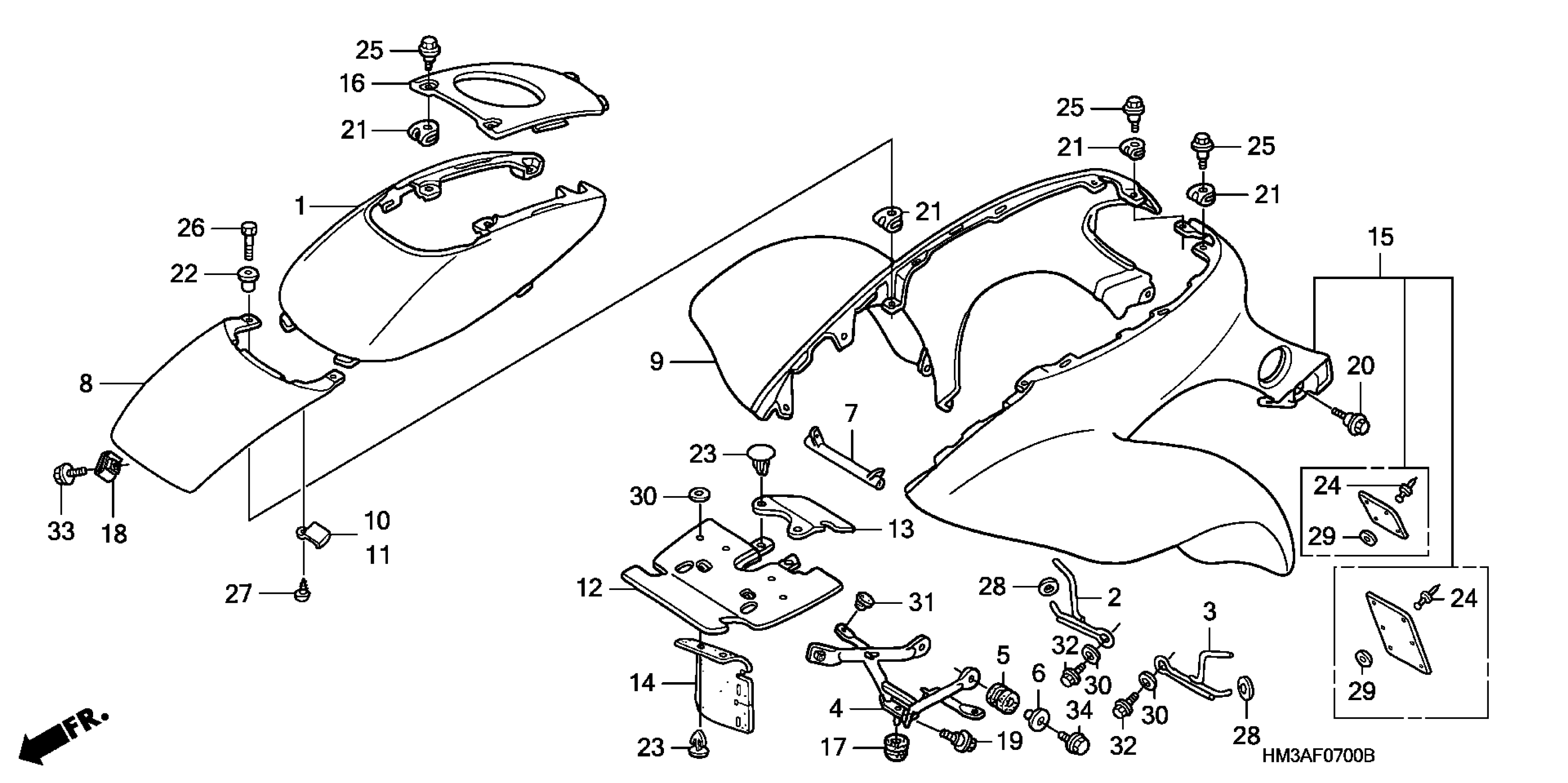

Honda TRX300EXA (04) SPORTRAX 300EX, JPN, VIN# JH3TE190-4K900001 TO JH3TE190-4K999999 FRONT FENDER (TRX300EX'01-'06) Diagram

#

Description
Price

1

COVER, FUEL TANK *NH1* (BLACK)

17610-HC0-670ZC

Unavailable

2

STAY, R. FR. FENDER SUPPORT

61101-HC0-670

$23.08

3

STAY, L. FR. FENDER SUPPORT

61102-HC0-670

Unavailable

4

STAY, FR. FENDER

61103-HC0-000

Unavailable

5

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

PIPE, FR. FENDER CROSS

61109-HC0-000

Unavailable

8

COVER, FR. *NH1* (BLACK)

61110-HC0-670ZC

Unavailable

9

FENDER SET, R. FR. (TYPE1) (WL) | Fighting red R134;

61110-HM3-870ZA

Unavailable

9

FENDER SET, R. FR. (TYPE2) (WL) | Starburst yellow Y151R;

61110-HM3-870ZB

Unavailable

10

PLATE, R. FR. FENDER SETTING

61111-HC0-000

Unavailable

11

PLATE, L. FR. FENDER SETTING

61112-HC0-000

$7.90

12

GUIDE, FR. AIR

61120-HC0-010

Unavailable

13

GUIDE, RR. AIR

61121-HC0-000

Unavailable

14

FENDER (INNER)

61122-HC0-000

Unavailable

15

FENDER SET, L. FR. (TYPE1) (WL) | Fighting red R134;

61210-HM3-870ZA

Unavailable

15

FENDER SET, L. FR. (TYPE2) (WL) | Starburst yellow Y151R;

61210-HM3-870ZB

Unavailable

16

COVER, TANK CENTER *NH1* (BLACK)

61701-HC0-670ZC

Unavailable

17

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

18

NUT, FENDER SETTING

84601-HA7-670

$5.54

19

BOLT, FLANGE (6MM)

90110-MG9-700

$4.45

20

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

21

NUT, SPRING (5MM)

90320-HB9-000

$3.12

22

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

23

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

24

RIVET, POP (3.2)

90841-HF1-670

$1.62

25

BOLT, FENDER SETTING (5X11.5)

91509-HC0-000

$3.89

26

BOLT, HEX. (5X14)

92101-05014-0A

$1.49

27

SCREW, TAPPING (4X12)

93903-24380

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, PLAIN (3MM)

94103-03800

$1.49

30

WASHER, PLAIN (6MM)

94103-06000

$1.49

31

RUBBER C, STAND STOPPER

95011-63000

$3.90

32

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

34

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
