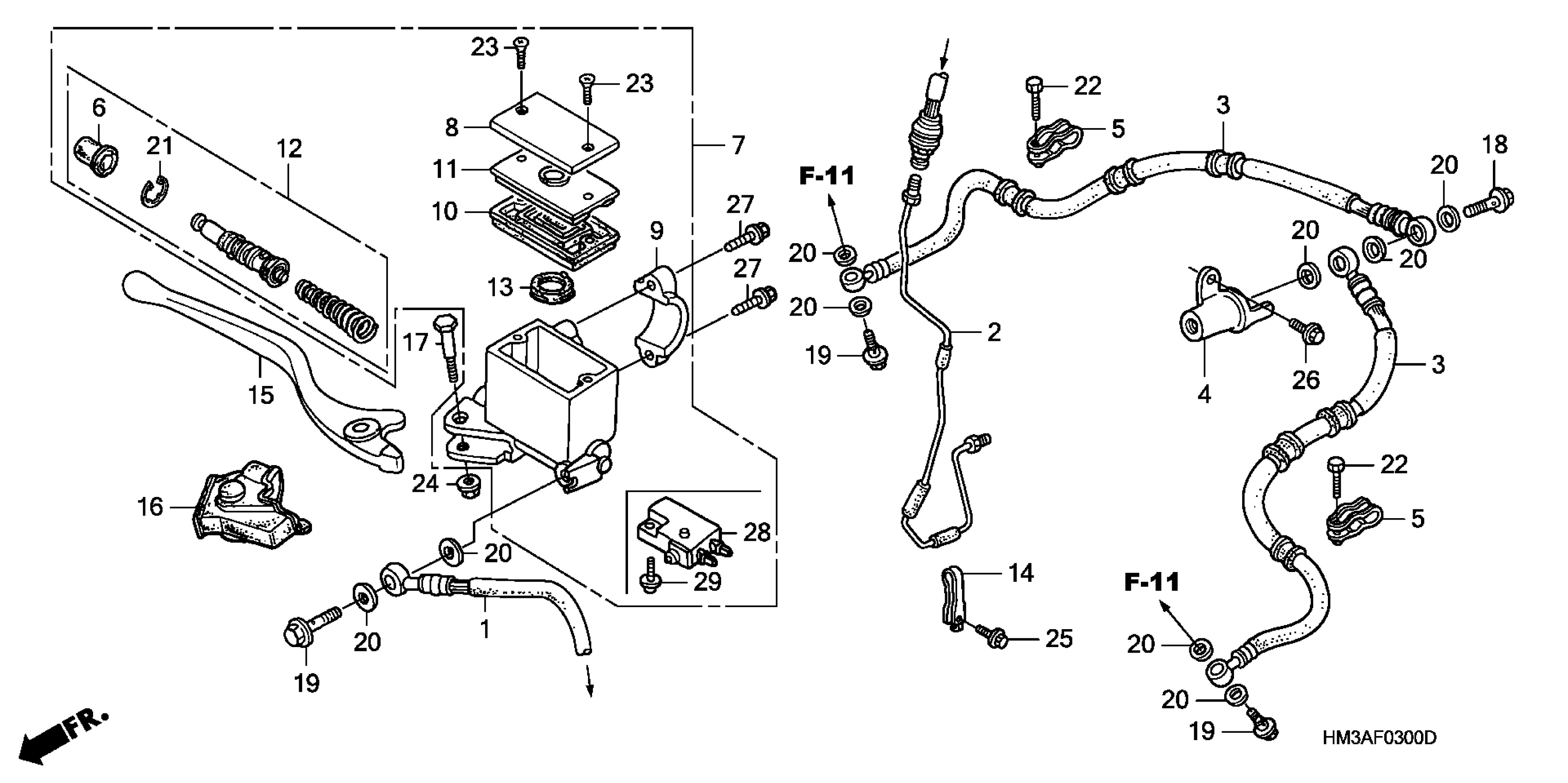

Honda TRX300EXA (04) SPORTRAX 300EX, JPN, VIN# JH3TE190-4K900001 TO JH3TE190-4K999999 FRONT BRAKE MASTER CYLINDER (TRX300EX'01-'06) Diagram

HOSE ASSY., FR. BRAKE (UPPER)

45126-HC0-671

Unavailable

PIPE, FR. BRAKE

45127-HC0-000

Unavailable

HOSE ASSY., FR. BRAKE

45128-HC0-671

Unavailable

JOINT (TWO-WAY) (NISSIN)

45129-HC0-016

Unavailable

CLAMP, FR. BRAKE MIDDLE

45464-HB9-000

Unavailable

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-HM3-305

Unavailable

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-KJ1-702

$51.71

SEPARATOR

46666-HB9-006

$9.38

CLAMP B, FR. BRAKE HOSE

51203-HA7-670

Unavailable

LEVER, R. HANDLEBAR

53175-HM3-000

$25.02

COVER, R. HANDLE LEVER

53176-HC0-671

$8.43

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X34)

90145-MR8-014

$7.28

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
