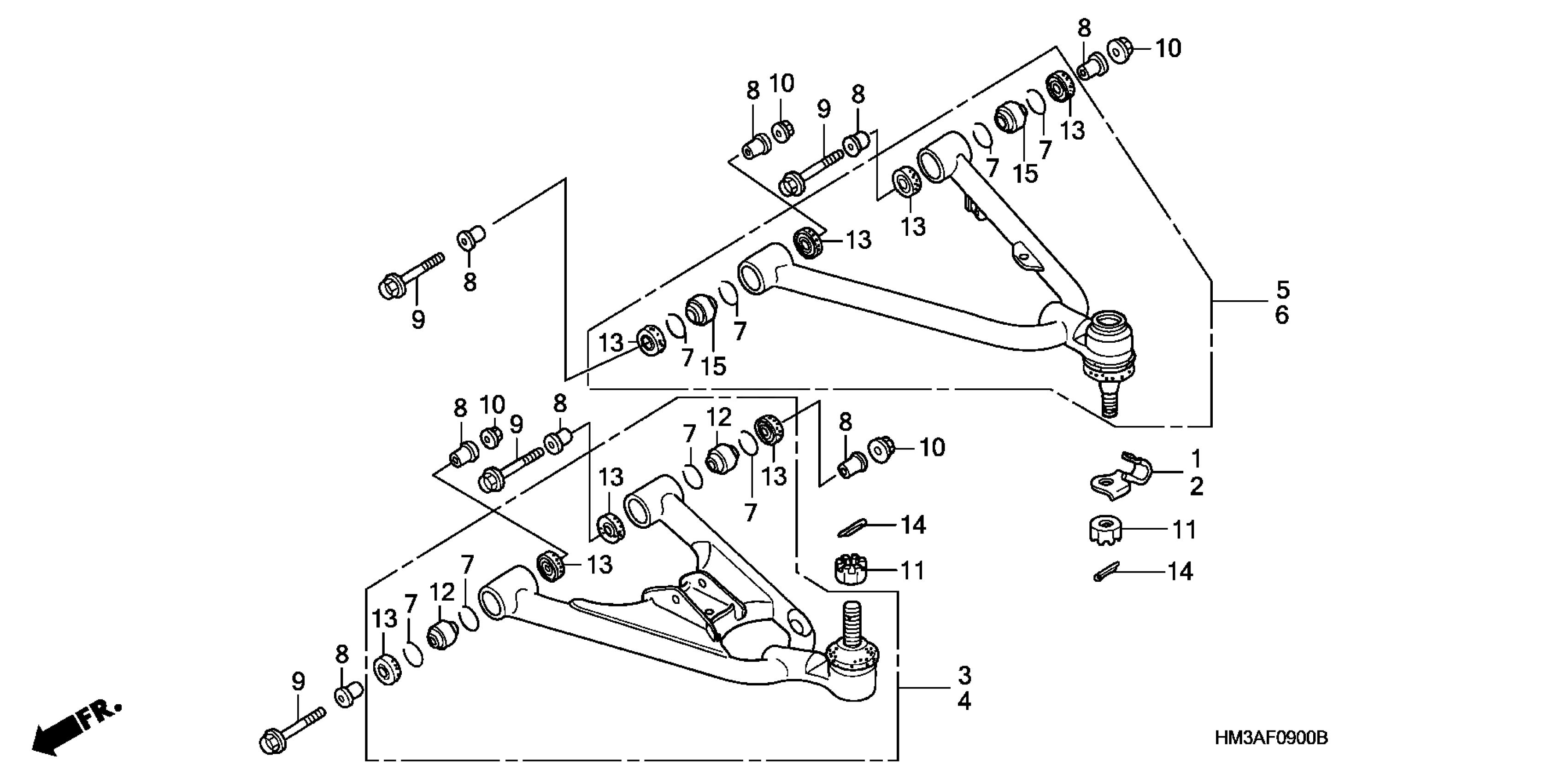

Honda TRX300EXA (04) SPORTRAX 300EX, JPN, VIN# JH3TE190-4K900001 TO JH3TE190-4K999999 FRONT ARM Diagram

CLIP, R. BRAKE HOSE

45462-HC0-010

$6.98

CLIP, L. BRAKE HOSE

45463-HC0-010

Unavailable

ARM ASSY., R. FR. (LOWER)

51350-HM3-A00

Unavailable

ARM ASSY., L. FR. (LOWER)

51360-HM3-A00

Unavailable

ARM ASSY., R. FR. (UPPER)

51370-HC0-680

Unavailable

ARM ASSY., L. FR. (UPPER)

51380-HC0-680

Unavailable

RING, STOPPER

51393-HB9-670

$4.98

COLLAR, FR. ARM PIVOT

51394-HC0-000

$11.26

BOLT, FLANGE (10X62)

90183-HC0-770

$10.50

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$38.29

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$38.29

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.92

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$38.29

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$38.29
