Partiron

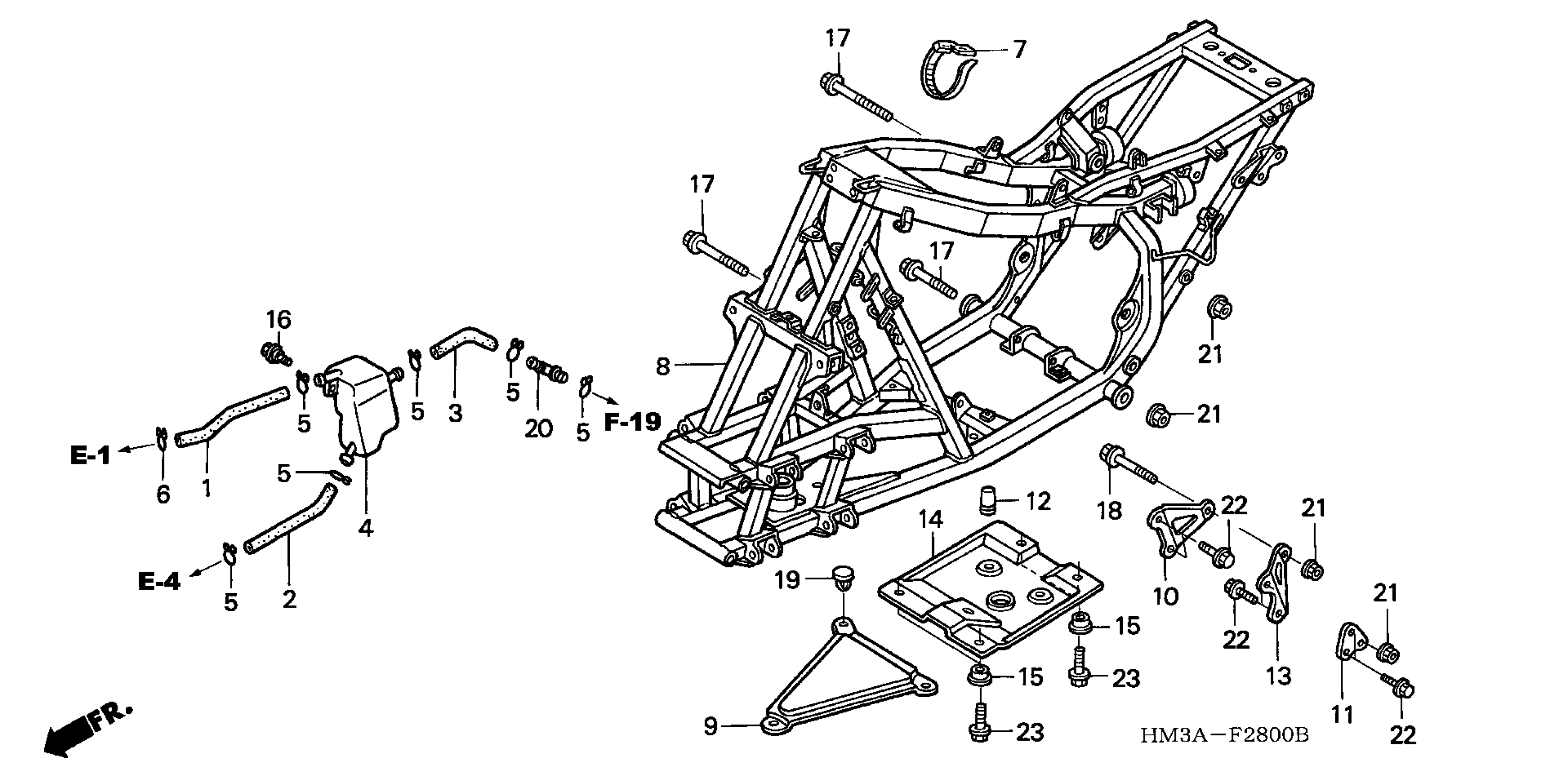

Honda TRX300EXA (02) SPORTRAX 300EX, JPN, VIN# JH3TE190-2K700001 TO JH3TE190-2K799999 FRAME Diagram

#

Description
Price

1

TUBE, BREATHER (UPPER)

15761-HM3-L00

Unavailable

2

TUBE, BREATHER (LOWER)

15762-HM3-L00

Unavailable

3

TUBE, RR. BREATHER

15763-HM3-L00

$10.00

4

CRANKCASE BREATHER STORAGE TANK

15765-HM3-L00

Unavailable

5

CLIP, BREATHER TUBE

17316-HA0-000

$4.38

6

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

7

BAND, WIRE

32161-438-000

$4.00

8

FRAME *NH262M* (TERRA SILVER METALLIC) | Fighting red R134;

50100-HM3-N00ZA

Unavailable

9

PLATE, FR. PROTECTOR

50181-HC0-000

Unavailable

10

HANGER, R. FR. ENGINE *NH262M* (TERRA SILVER METALLIC) This part replaces 50351-HC0-680.

50351-HC0-680ZA

Unavailable

11

HANGER, FR. ENGINE (LOWER) *NH262M* (TERRA SILVER METALLIC) This part replaces 50352-HC0-680.

50352-HC0-680ZA

Unavailable

12

RUBBER A, STOPPER

50352-428-000

$2.66

13

HANGER, L. FR. ENGINE *NH262M* (TERRA SILVER METALLIC) This part replaces 50353-HC0-680.

50353-HC0-680ZA

Unavailable

13

HANGER, L. FR. ENGINE *NH262M* (TERRA SILVER METALLIC)

50353-HC0-680ZA

Unavailable

14

GUARD, ENGINE

50360-HM3-000

Unavailable

15

COLLAR, TOOL BOX SETTING

83505-KM4-000

$4.66

16

BOLT, FLANGE (6MM)

90111-162-000

$2.66

17

BOLT, FLANGE (10X110)

90115-HA0-770

$8.53

18

BOLT, FLANGE (10X76)

90308-MC4-760

Unavailable

19

CLIP, COVER (LOWER)

90685-SA5-003

$9.50

20

JOINT, TUBE

91463-MC4-000

$5.64

21

NUT, FLANGE (10MM)

94050-10000

$1.66

22

BOLT, FLANGE (8X14)

95701-08014-00

$1.21

23

BOLT, FLANGE (8X16)

95701-08016-00

$1.79
