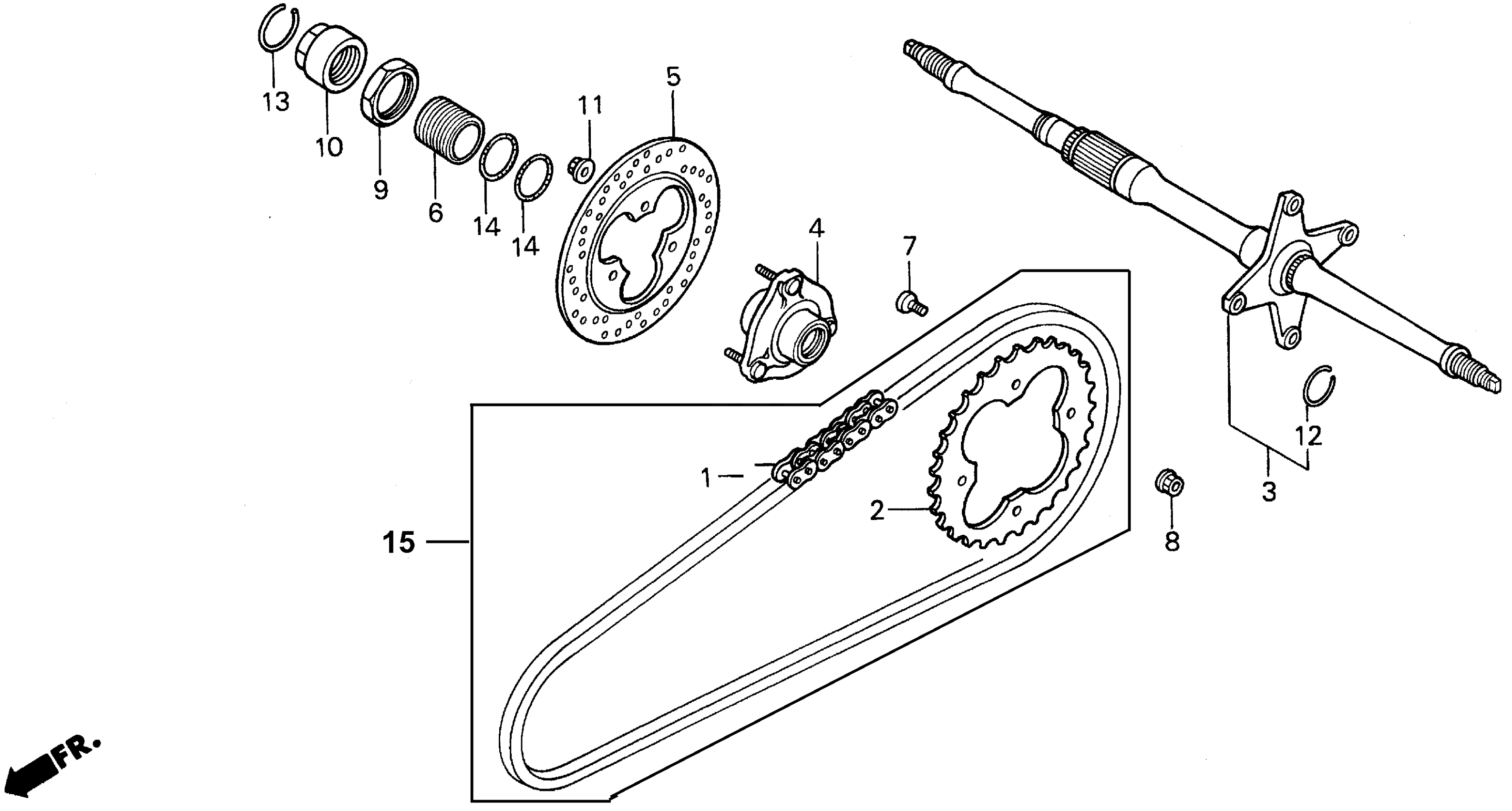

Honda TRX300EXA (00) FOURTRAX 300EX, JPN, VIN# JH3TE190-YK500001 REAR WHEEL AXLE Diagram

CHAIN, DRIVE (RK EXCEL) (RK520SMOZ10S-100CL) (STANDARD LINK 94L) This part replaces 40530-HM3-712.

40540-KB7-306

$175.11

CHAIN, DRIVE (RK EXCEL) (RK520SMOZ10S-100CL)

40540-KB7-306

$175.11

SPROCKET, FINAL DRIVEN (38T)

41201-HC0-000

$91.15

AXLE, RR.

42310-HC0-010

$519.52

FLANGE, BRAKE DISK

43120-HC0-010

$154.98

DISK, RR. BRAKE This part replaces 43122-HC0-000.

43122-HM3-A61

$237.41

BOLT, RR. AXLE

43127-HA2-000

$38.00

BOLT, DRIVEN SPROCKET (10MM) This part replaces 90114-HA2-670.

90114-HM3-A60

$4.45

BOLT, DRIVEN SPROCKET (10MM)

90114-HM3-A60

$4.45

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, RR. AXLE SPECIAL

90307-HA2-000

$23.04

NUT B, RR. AXLE

90308-HB9-000

$13.40

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

CLIP (OUTER) (40MM)

90651-HA2-000

$4.07

CLIP (OUTER) (37MM)

90652-HA2-000

$3.35

O-RING (39.7X1.3)

91351-HA5-003

$3.67

CHAIN KIT, DRIVE (NOT AVAILABLE)

06406-HM3-J10

Unavailable
