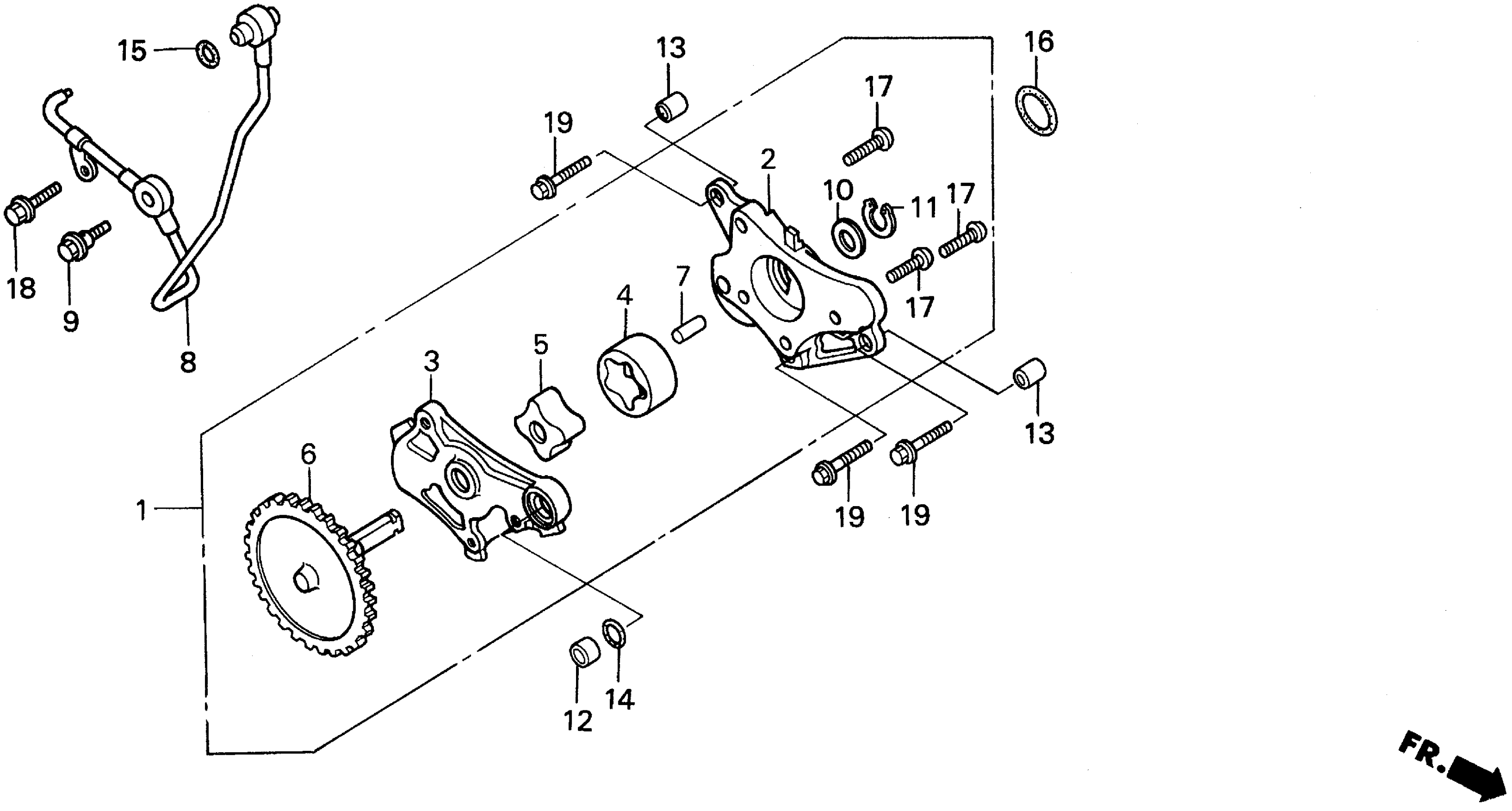

Honda TRX300EXA (00) FOURTRAX 300EX, JPN, VIN# JH3TE190-YK500001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HC0-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15122-329-010

$20.59

ROTOR, OIL PUMP (INNER)

15123-329-010

$17.36

GEAR, OIL PUMP DRIVEN (34T)

15140-HC0-000

$117.57

ROLLER (6X8)

15141-KF0-000

$4.51

PIPE, OIL

15510-HM3-670

Unavailable

BOLT, FLANGE (7X18.5)

15532-HA0-000

$9.59

WASHER (8MM)

90465-HA0-000

Unavailable

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.94

PIN, DOWEL (10X10)

90702-MJ4-000

$3.26

PIN, DOWEL (8X10)

91103-429-000

$2.56

O-RING (10X2) (ARAI)

91304-HA5-003

$3.92

O-RING (8.2X1.5)

91308-MC7-000

$2.31

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

SCREW, PAN (5X22)

93500-05022-0A

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
