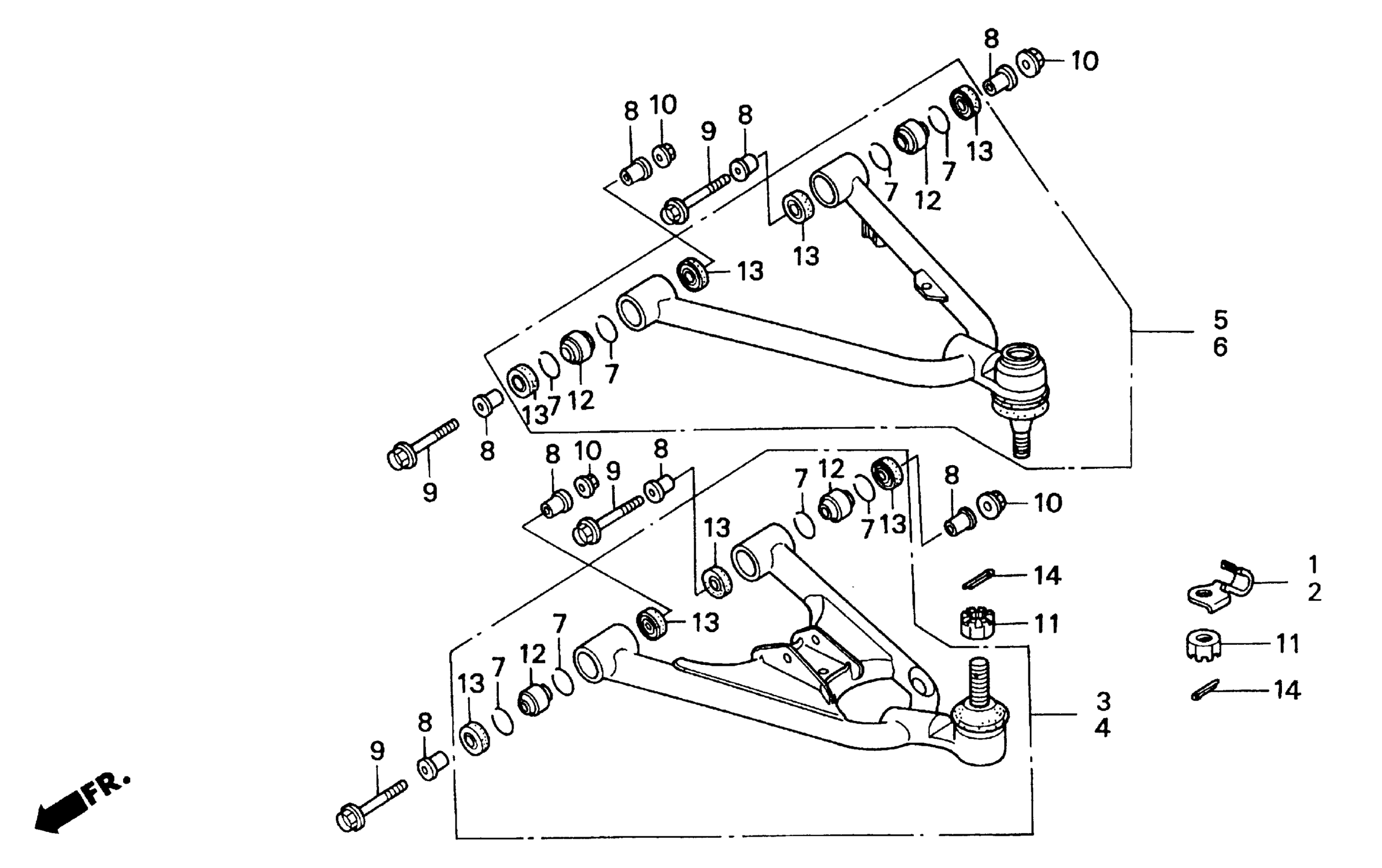

Honda TRX300EXA (00) FOURTRAX 300EX, JPN, VIN# JH3TE190-YK500001 FRONT ARM Diagram

#

Description
Price

1

CLIP, R. BRAKE HOSE

45462-HC0-010

$6.26

2

CLIP, L. BRAKE HOSE

45463-HC0-010

Unavailable

3

ARM ASSY., R. FR. (LOWER)

51350-HM3-A00

Unavailable

4

ARM ASSY., L. FR. (LOWER)

51360-HM3-A00

Unavailable

5

ARM ASSY., R. FR. (UPPER)

51370-HC0-680

Unavailable

6

ARM ASSY., L. FR. (UPPER)

51380-HC0-680

Unavailable

7

RING, STOPPER

51393-HB9-670

$4.75

8

COLLAR, FR. ARM PIVOT

51394-HC0-000

$10.35

9

BOLT, FLANGE (10X62)

90183-HC0-770

$9.63

10

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

11

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

12

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$35.17

12

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$35.17

13

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.74

14

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.96

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

14

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.96

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

14

PIN, SPLIT (3.0X45)

94201-30450

$0.96
