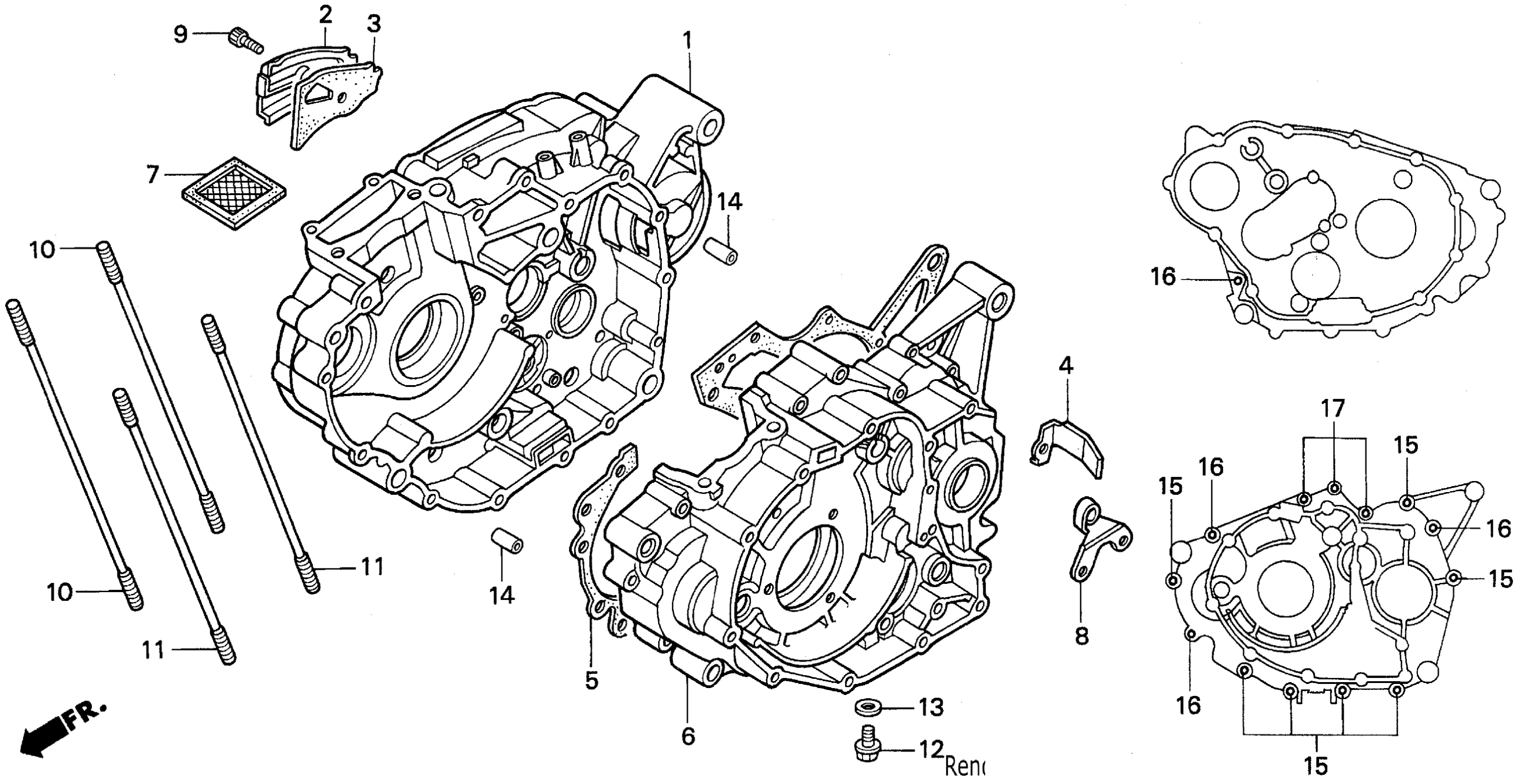

Honda TRX300EXA (00) FOURTRAX 300EX, JPN, VIN# JH3TE190-YK500001 CRANKCASE Diagram

CRANKCASE, R.

11100-HM3-670

Unavailable

PLATE, BREATHER

11104-HA5-000

Unavailable

GASKET, BREATHER PLATE

11105-HC0-680

Unavailable

CLAMP, BREATHER TUBE (B)

11107-HC0-000

$7.03

GASKET, CRANKCASE

11191-HM3-670

$35.62

CRANKCASE, L.

11200-HM3-671

$557.11

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

RECEIVER, CLUTCH WIRE

22838-HM3-670

Unavailable

BOLT, SOCKET (6X12)

90003-HA0-003

$2.61

BOLT, STUD (10X166)

90031-HC0-000

$11.54

BOLT, STUD (10X158)

90032-HC0-000

$15.15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X65)

95701-06065-00

$1.51
