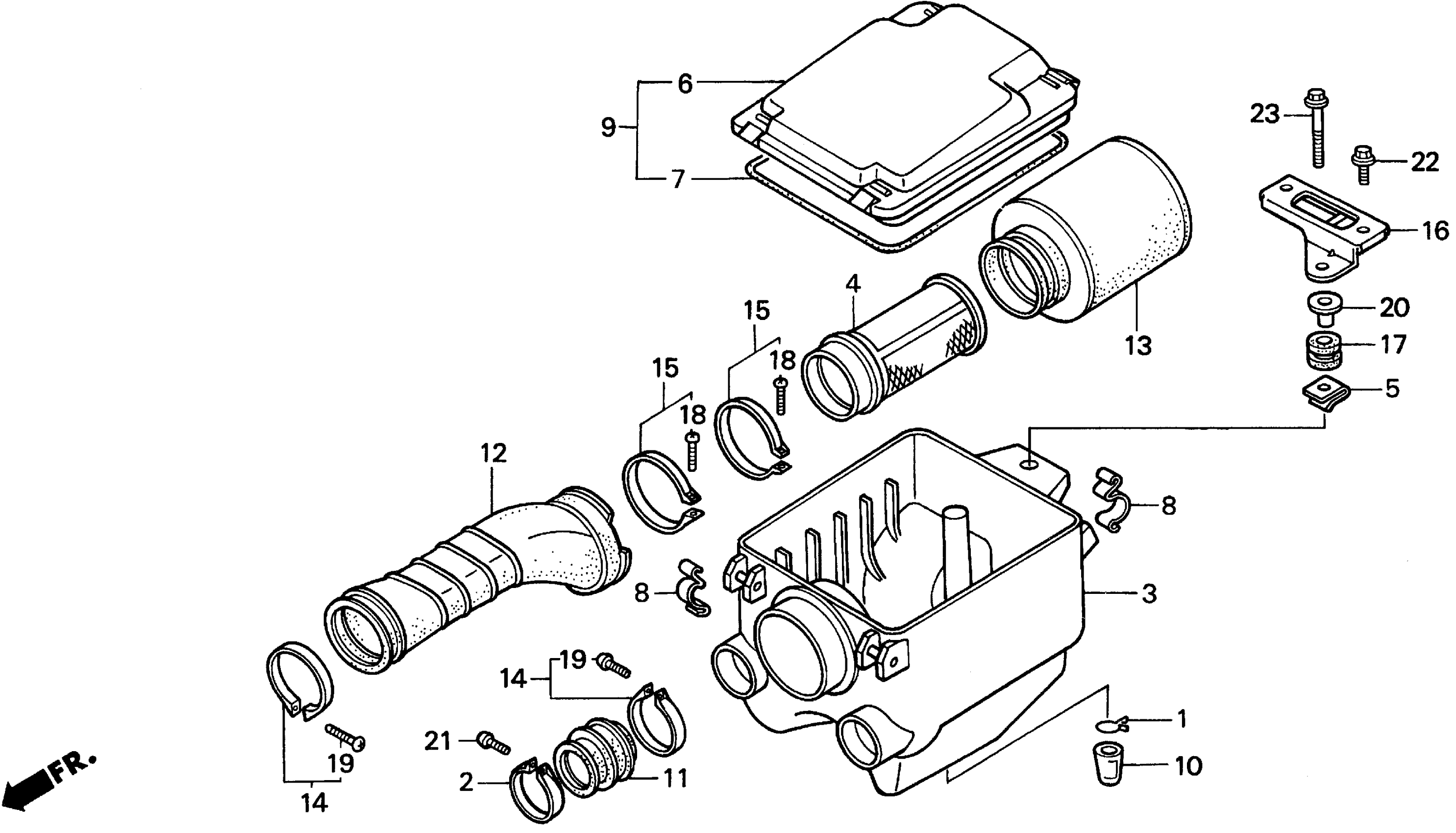

Honda TRX300EXA (00) FOURTRAX 300EX, JPN, VIN# JH3TE190-YK500001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

BAND, INSULATOR

16223-KA3-740

Unavailable

3

AIR CLEANER HOUSING

17210-HC0-010

Unavailable

4

BODY, AIR CLEANER

17211-HC0-000

$68.35

5

NUT, AIR CLEANER HOUSING SETTING

17212-965-000

$8.09

6

LID, AIR CLEANER HOUSING

17217-HC0-000

$45.48

7

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

7

SEAL, AIR CLEANER COVER This part replaces 17219-HC0-000.

17219-HA2-405

$5.96

8

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

9

LID ASSY., AIR CLEANER HOUSING

17225-HM3-L00

$53.05

10

TUBE, VINYL (11X15X45)

17227-HC0-000

$7.52

11

SEAL, AIR IN.

17252-HC0-000

$15.61

12

TUBE, AIR CLEANER CONNECTING

17253-HM3-L00

$61.54

13

AIR CLEANER

17254-HC0-680

$26.85

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-680.

95018-60250

$6.25

14

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

15

BAND, AIR CLEANER

17257-HB5-000

$14.02

16

PLATE, SEAT LOCK

50190-HC0-000

Unavailable

17

RUBBER, SEAT SETTING

77206-MJ0-000

$3.92

18

SCREW

90101-HB5-000

$2.69

19

SCREW, PAN (4X25)

90107-HA0-680

$2.52

20

COLLAR (6X14.8)

90501-438-000

$5.05

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

23

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
