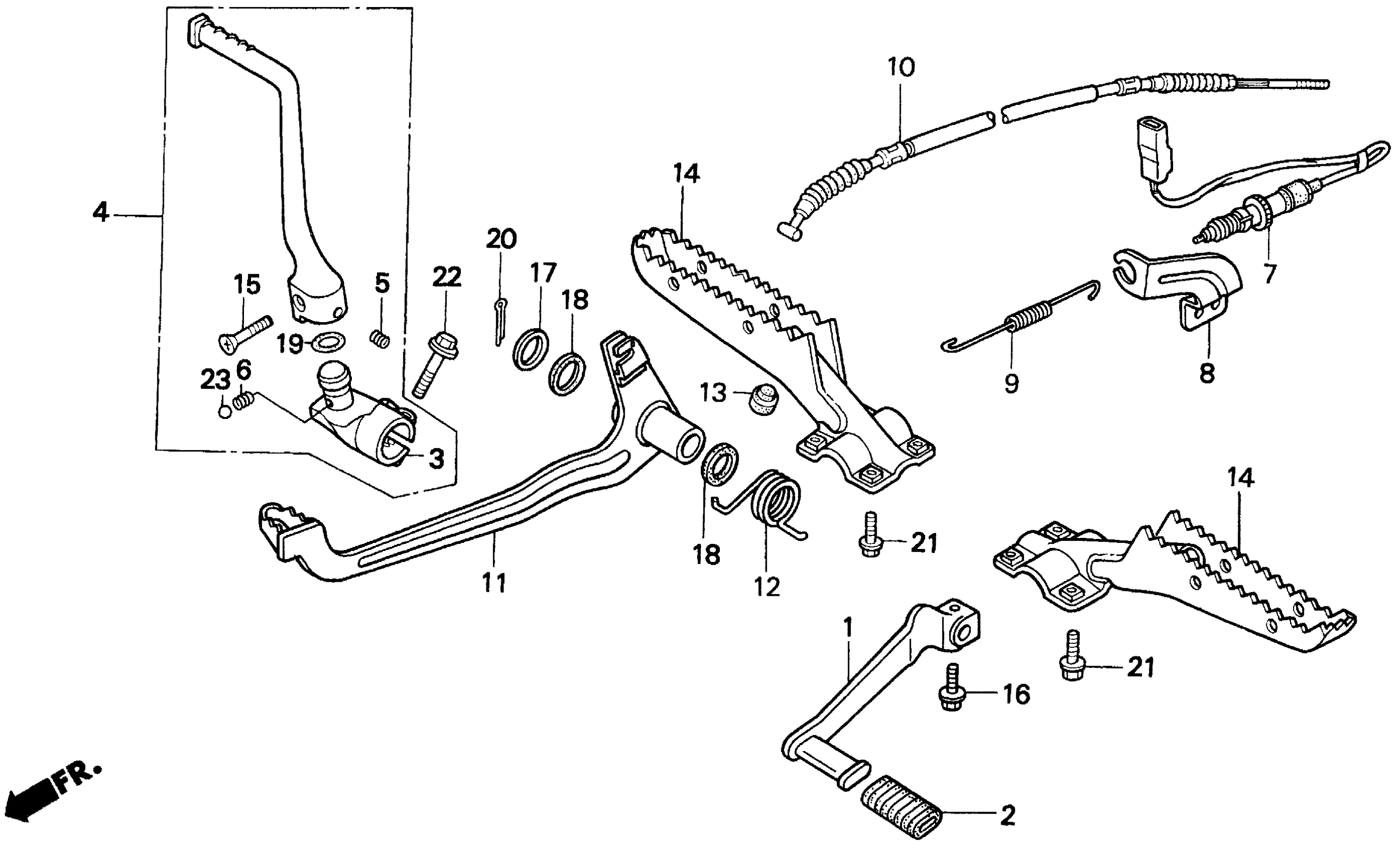

Honda TRX300AN (96) FOURTRAX 300, USA, VIN# 478TE143-TA800001 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-HM5-850

$65.77

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

3

JOINT, KICK ARM This part replaces 28241-HA8-681.

28241-HA6-680

Unavailable

4

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-HC4-750

Unavailable

5

PLUG, KICK ARM

28302-965-000

$2.59

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-HC5-880

Unavailable

8

STAY, STOP SWITCH (NOT AVAILABLE)

35351-HC5-880

Unavailable

9

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

9

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

10

CABLE, FOOT BRAKE This part replaces 43470-HC5-971.

43470-HM5-630

$31.94

10

CABLE, FOOT BRAKE

43470-HM5-630

$31.94

11

PEDAL, BRAKE

46500-HC5-970

$376.72

12

SPRING, BRAKE PEDAL

46514-HM5-730

$34.17

13

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

14

BAR, STEP

50610-HC5-970

Unavailable

15

SCREW, OVAL (6X28) (NOT AVAILABLE)

90101-HC4-000

Unavailable

16

BOLT, FLANGE (6X20)

90118-968-000

$4.24

17

WASHER (17.5MM)

90512-303-000

$1.77

18

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

18

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

19

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, SPLIT (3.0X45)

94201-30450

$1.49

21

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

22

BOLT, FLANGE (8X28)

95701-08028-07

$1.49

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
