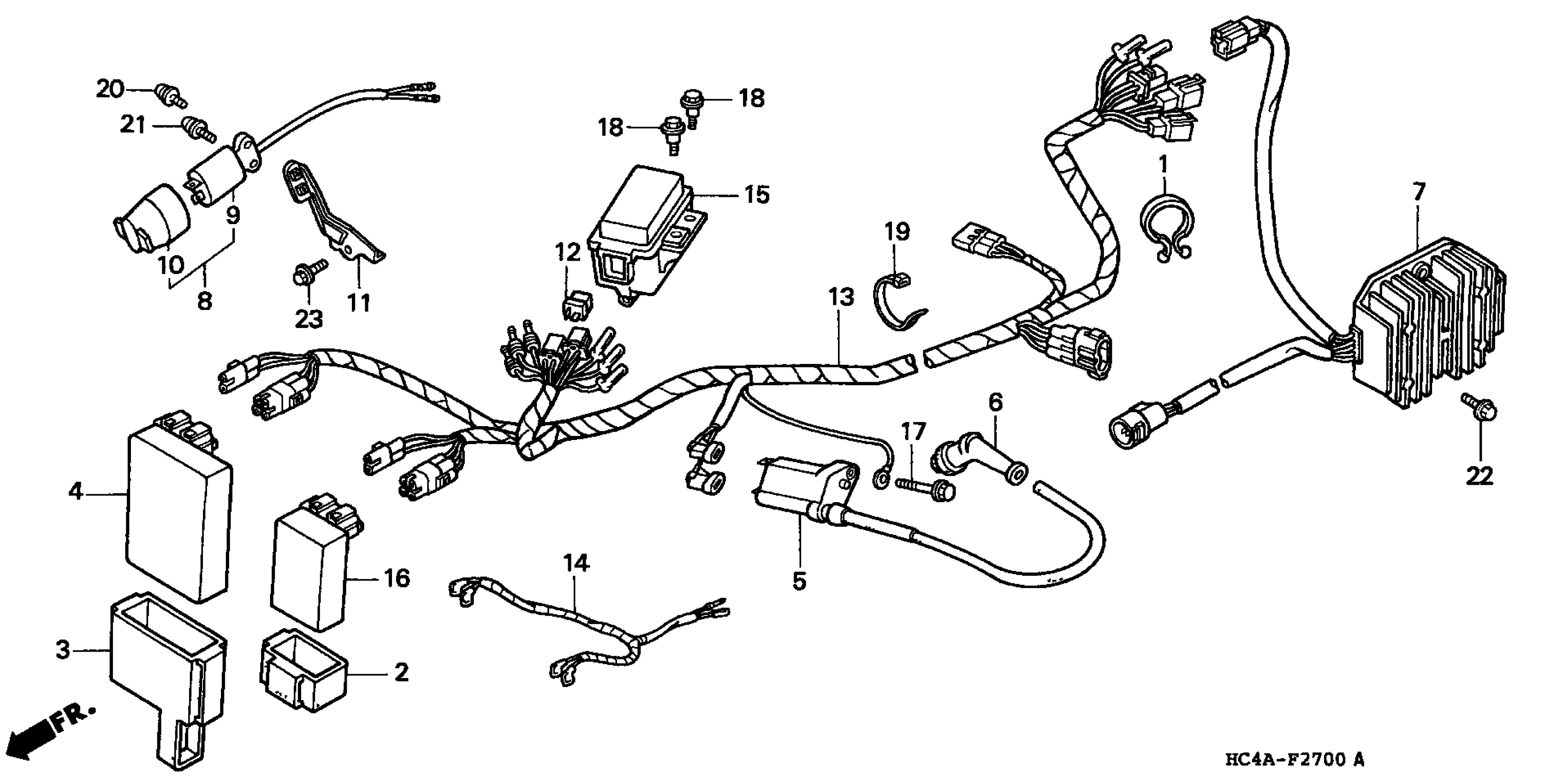

Honda TRX300AN (94) FOURTRAX 300, USA, VIN# 478TE143-RA600001 TO 478TE143-RA699999 WIRE HARNESS Diagram

#

Description
Price

1

CLIP, TUBE (26)

17916-PE1-671

Unavailable

2

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$5.17

3

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$10.00

4

MODULE, IGNITION CONTROL (CDI)

30410-HM5-505

$237.92

4

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-HM5-671.

30410-HM5-505

$237.92

4

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-HM5-672.

30410-HM5-505

$237.92

5

COIL, IGNITION

30510-HM5-670

$65.28

6

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

7

RECTIFIER ASSY., REGULATE

31600-HC5-970

Unavailable

8

RECEPTACLE ASSY., D.C. (NOT AVAILABLE) This part replaces 31650-HC4-020.

31650-HC4-030

Unavailable

9

RECEPTACLE (NOT AVAILABLE)

31651-HC4-000

Unavailable

10

PLUG, RECEPTACLE (NOT AVAILABLE)

31652-HA0-680

Unavailable

11

STAY, D.C. RECEPTACLE (NA USE ALT:31655-HM5-850)

31655-HC4-000

$11.77

12

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

13

WIRE HARNESS (NOT AVAILABLE)

32100-HM5-691

Unavailable

14

SUB-HARNESS, FR. STOP SWITCH (NOT AVAILABLE)

32105-HC4-831

Unavailable

15

BOX, CONNECTOR

32300-HC4-670

Unavailable

16

ALARM (NOT AVAILABLE)

38710-HC4-003

Unavailable

17

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

18

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

19

BAND, WIRE HARNESS

90650-MA6-720

$4.15

20

SCREW-WASHER (5X25)

93894-05025-07

$1.49

21

SCREW-WASHER (5X25)

93894-05025-07

$1.49

22

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

23

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
