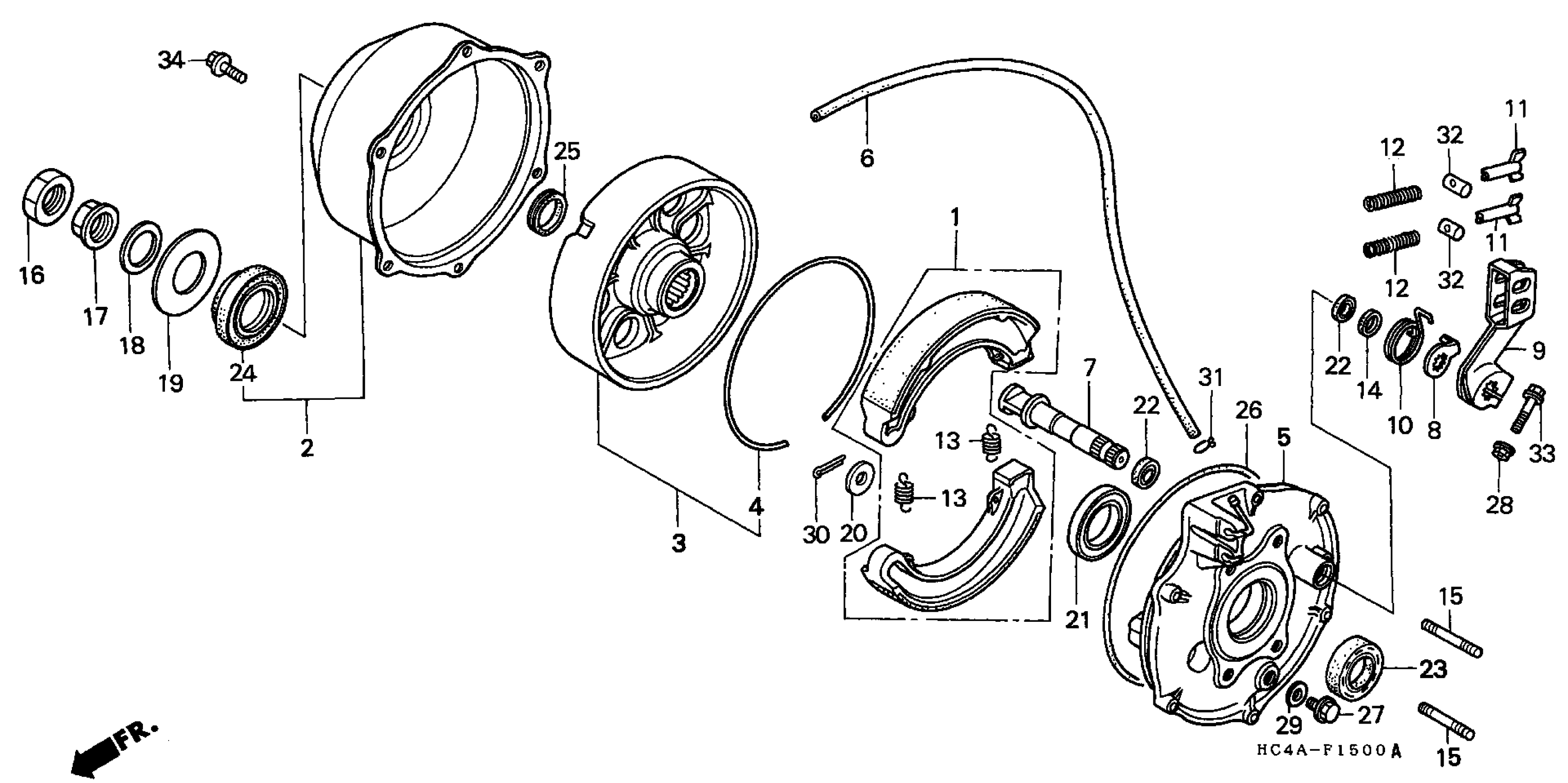

Honda TRX300AN (94) FOURTRAX 300, USA, VIN# 478TE143-RA600001 TO 478TE143-RA699999 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

1

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

2

COVER ASSY., DRUM BRAKE

40520-HC4-000

$92.59

3

DRUM ASSY., RR. BRAKE

42620-HC4-670

$318.62

4

RING, DAMPER

42624-HC4-000

$26.21

5

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-HC4-010

Unavailable

6

TUBE, BREATHER (3.5X1320)

43132-HC5-970

$4.88

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-HC4-000

Unavailable

8

INDICATOR, RR. BRAKE

43145-HC4-000

$5.85

9

ARM, RR. BRAKE

43410-HC4-000

$31.36

10

SPRING, RR. BRAKE ARM

43415-HC4-000

$7.36

11

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

11

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

12

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

13

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

14

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

15

BOLT, STUD (10X25)

90137-HA7-770

Unavailable

15

BOLT, STUD (10X25) This part replaces 90151-HC4-300.

90137-HA7-770

Unavailable

16

NUT, RR. AXLE This part replaces 90307-HC4-000.

90307-HM5-930

$3.40

16

NUT, RR. AXLE

90307-HM5-930

$3.40

17

NUT A, RR. AXLE This part replaces 90308-HC4-000.

90308-HM5-930

$3.83

17

NUT A, RR. AXLE

90308-HM5-930

$3.83

18

WASHER, TAPER

90481-HC4-000

$7.70

19

WASHER (32X86X1.5)

90501-HB3-000

$26.23

20

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

21

DUST SEAL (44X62X9) This part replaces 91252-HB3-003.

91252-HM5-630

$16.69

21

DUST SEAL B (44X62X9)

91252-HM5-630

$16.69

22

DUST SEAL (14X20X4) (NOK)

91208-HF7-005

$5.80

23

BEARING, RADIAL BALL (6007)

91052-HB3-771

$45.62

24

DUST SEAL (45X76X19)

91253-HC4-003

$15.86

25

RING, SEAL

91351-HB3-004

$3.78

26

O-RING (181X3.1) (ARAI)

91355-HC4-003

$15.99

27

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

30

PIN, SPLIT (2.0X22)

94201-20220

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

30

PIN, SPLIT (2.0X35)

94201-20350

$1.49

30

PIN, COTTER (2.0X22)

94201-29220

$1.49

31

CLIP, TUBE (C6.5)

95002-35000

$1.49

32

JOINT B, BRAKE ARM

95015-32001

$1.49

33

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

34

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
