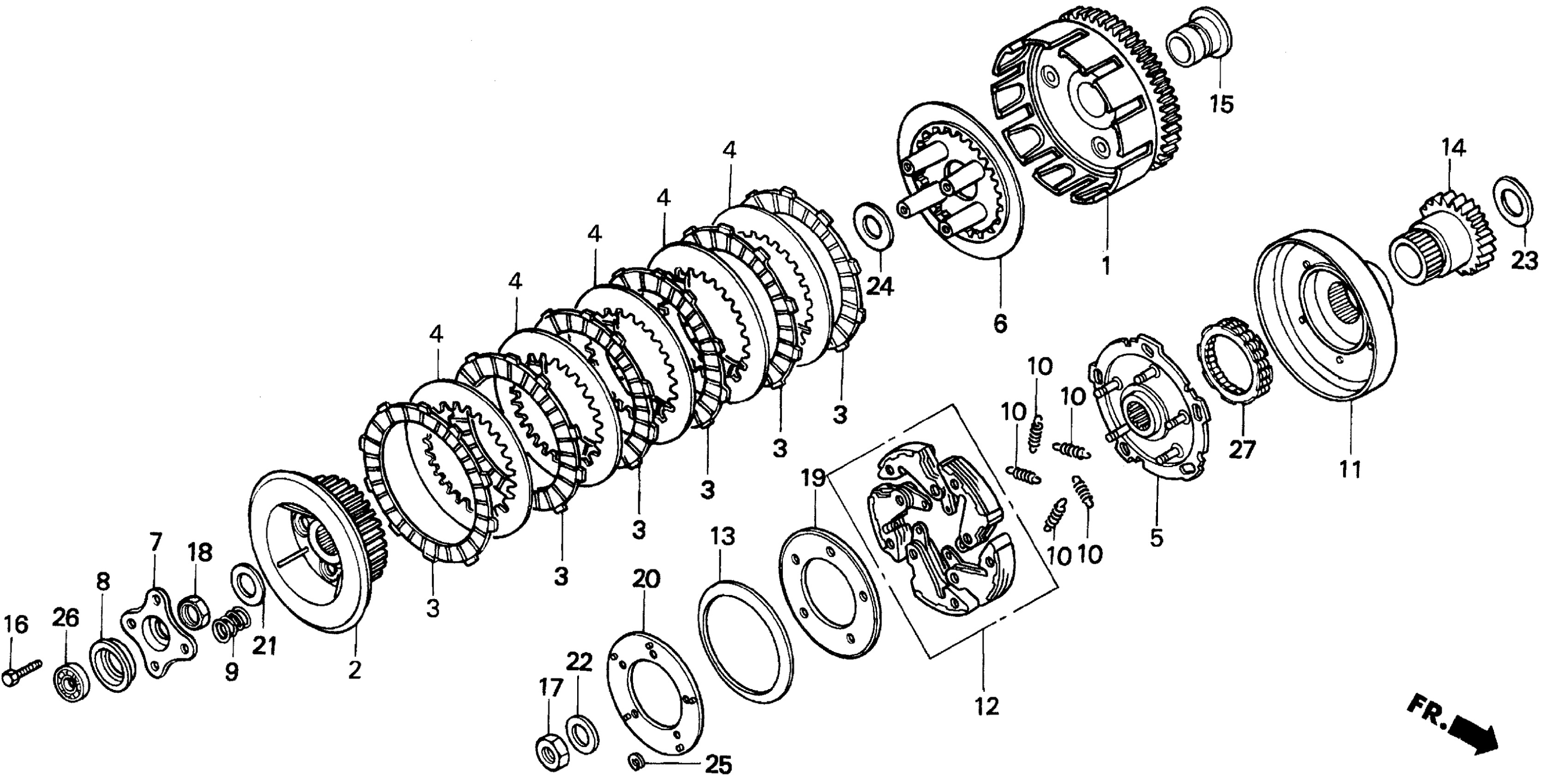

Honda TRX300A (99) FOURTRAX 300, USA, VIN# 478TE140-XA000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER (NOT AVAILABLE)

22100-HC4-000

Unavailable

2

CENTER, CLUTCH

22120-HA7-670

Unavailable

3

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

3

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

4

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$14.92

4

PLATE, CLUTCH

22321-KF0-770

$14.92

5

PLATE, DRIVE (NOT AVAILABLE)

22350-HM5-850

Unavailable

6

PLATE, CLUTCH PRESSURE

22351-HA7-670

Unavailable

7

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22366-HM7-000

Unavailable

8

COLLAR, CLUTCH LIFTER

22367-HM7-000

Unavailable

9

SPRING, CLUTCH

22401-HA7-670

$4.94

10

SPRING, CLUTCH DRIVE

22451-HC4-000

$5.79

11

CLUTCH OUTER (NOT AVAILABLE)

22500-HC4-000

Unavailable

12

WEIGHT SET, CLUTCH

22535-HM5-305

Unavailable

12

WEIGHT SET, CLUTCH This part replaces 22535-HM5-630.

22535-HM5-305

Unavailable

13

SPRING, CONE DISK

22714-HA0-010

Unavailable

14

GEAR, DRIVE (27T) (NOT AVAILABLE)

23120-HC4-750

Unavailable

15

BUSH (22MM)

23213-HA0-000

Unavailable

16

BOLT, HEX. (6X25) This part replaces 90001-HM7-000.

90001-HN0-670

$2.25

16

BOLT, HEX. (6X25)

90001-HN0-670

$2.25

17

NUT, LOCK (20MM)

90235-HA0-680

$11.54

18

NUT, LOCK (18MM)

90236-HA0-000

$10.45

19

WASHER (64X122X1.0) (NOT AVAILABLE)

90406-HA7-671

Unavailable

20

WASHER (64X105X1.6) (NOT AVAILABLE)

90407-HA7-671

$18.18

21

WASHER, LOCK

90432-KF0-000

$9.63

22

WASHER, SPRING (20MM)

90432-426-000

$9.98

23

WASHER, THRUST (27X40)

90457-HC4-000

Unavailable

24

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

25

CIRCLIP (7MM)

90605-166-720

$1.80

26

BEARING, BALL (6903) (KOYO)

91008-HC4-004

$23.06

27

CLUTCH, ONE-WAY

91101-HA0-004

$119.68
