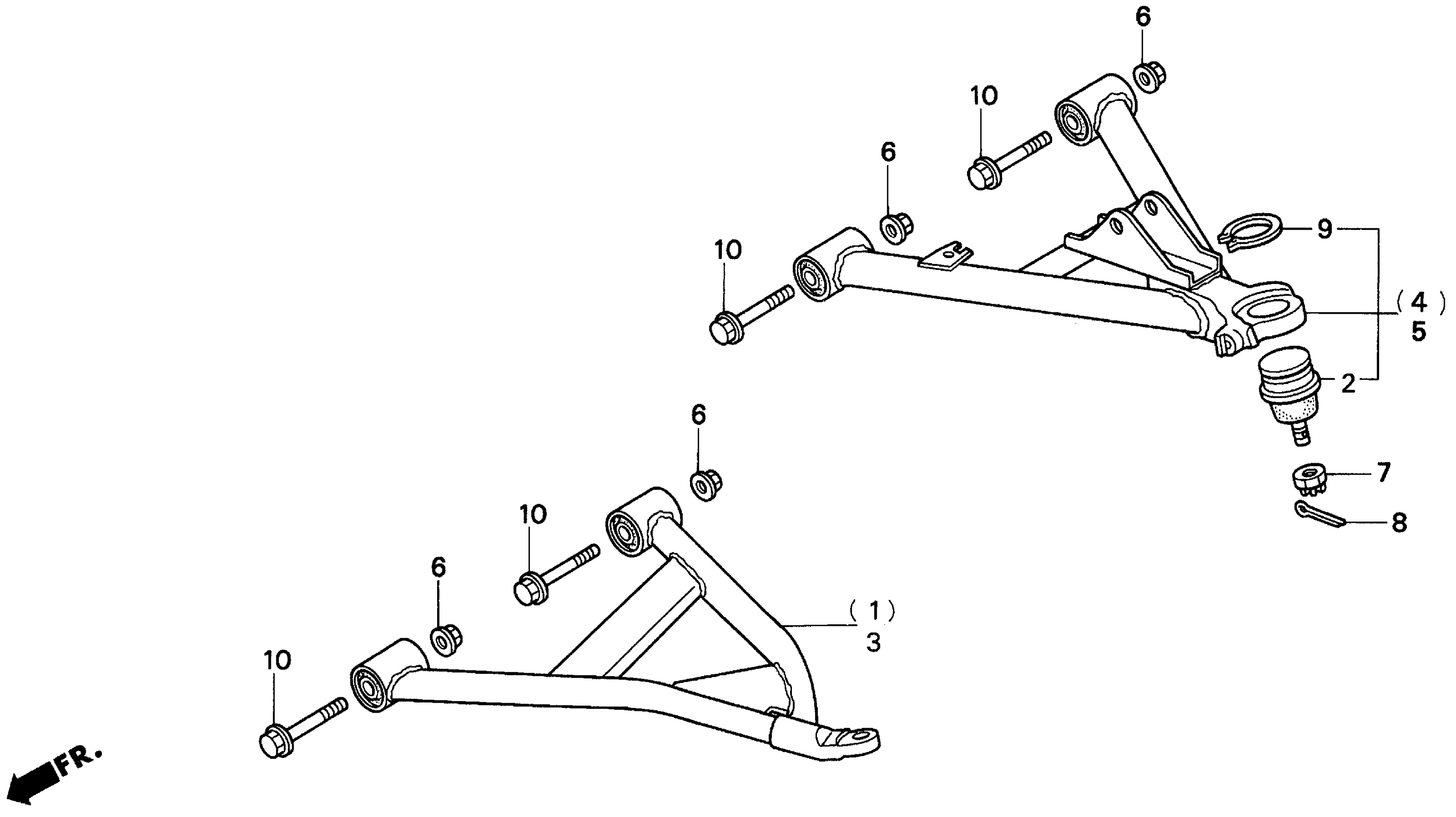

Honda TRX300A (99) FOURTRAX 300, USA, VIN# 478TE140-XA000001 300 FRONT ARM Diagram

#

Description

Price

1

ARM ASSY., R. FR. (LOWER) (SOURCE: VINTAGE PARTS INC.)

51350-HM4-850

$206.32

2

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

2

JOINT A, ARM BALL

51355-HP5-601

$19.41

3

ARM ASSY., L. FR. (LOWER)

51360-HM4-850

$206.32

4

ARM ASSY., R. (UPPER) (SOURCE: VINTAGE PARTS INC.)

51370-HM4-A20

Unavailable

5

ARM ASSY., L. (UPPER) (SOURCE: VINTAGE PARTS INC.)

51380-HM4-A20

$281.31

6

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

7

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

8

PIN, SPLIT (3.0X18)

94201-30180

$1.49

9

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

10

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

10

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
