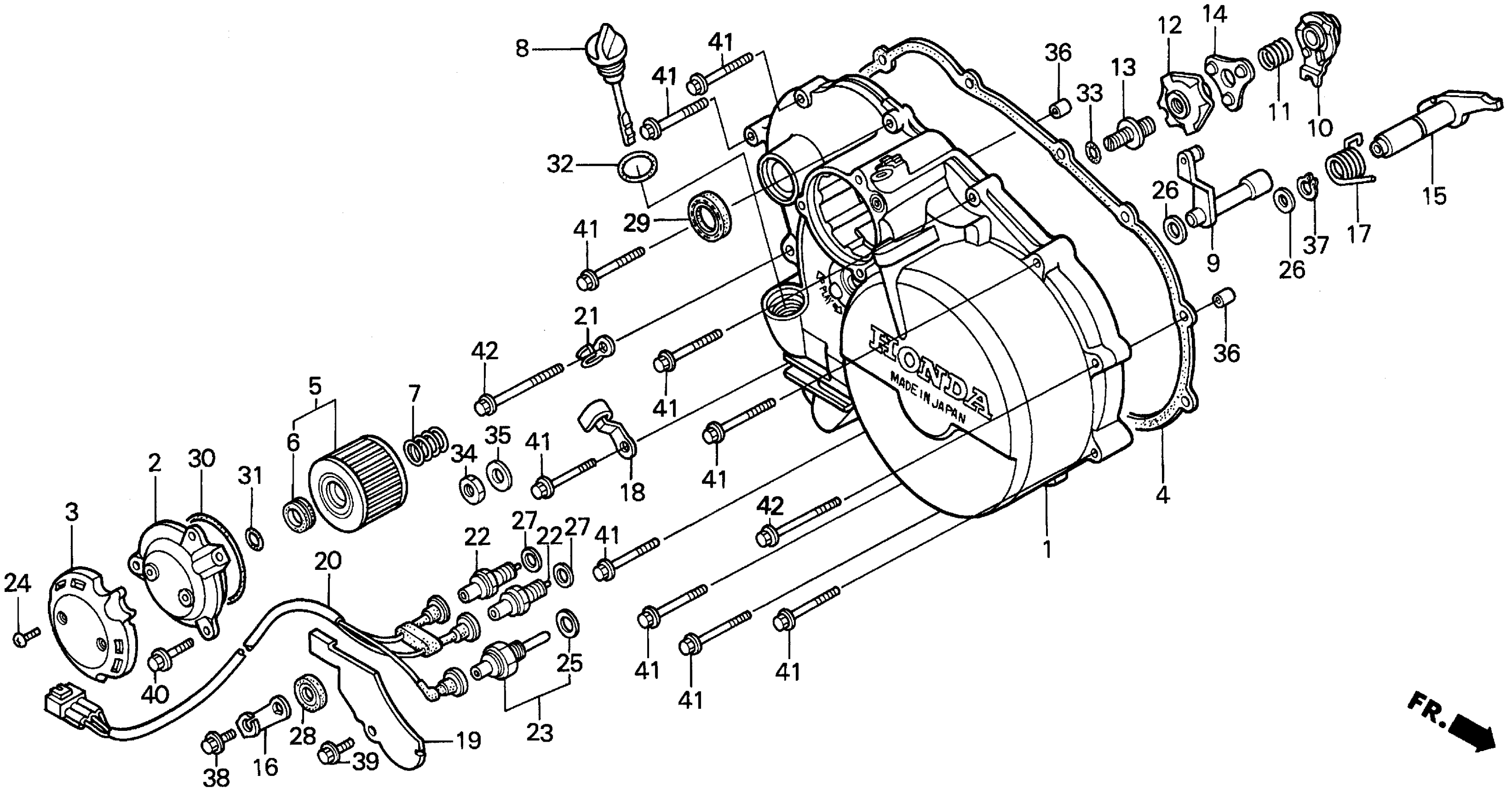

Honda TRX300A (97) FOURTRAX 300, USA, VIN# 478TE140-VA900001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-HC4-010.

11330-HM5-A10

Unavailable

2

COVER, OIL FILTER

11333-HC4-000

Unavailable

3

PROTECTOR, OIL FILTER COVER (NOT AVAILABLE)

11334-HC4-000

Unavailable

4

GASKET, R. CRANKCASE COVER

11394-HC4-840

$29.65

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

RUBBER, FILTER

15413-MC8-000

$3.35

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

8

DIPSTICK, OIL

15650-HC4-000

Unavailable

9

LEVER, CLUTCH (NOT AVAILABLE)

22810-HC4-000

Unavailable

10

PLATE, CLUTCH CAM (NOT AVAILABLE)

22820-HC4-000

Unavailable

11

SPRING, CAM PLATE SIDE

22825-HB3-003

$2.57

12

PLATE, CLUTCH LIFTER

22830-HC4-000

Unavailable

13

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

14

RETAINER, BALL

22860-HB3-000

$7.81

15

SHAFT, REVERSE STOPPER (NOT AVAILABLE)

24860-HC4-000

Unavailable

16

LEVER, REVERSE STOPPER This part replaces 24865-HC4-000.

24865-HP0-A00

$4.94

16

LEVER, REVERSE STOPPER

24865-HP0-A00

$4.94

17

SPRING, REVERSE STOPPER (NOT AVAILABLE)

24867-HC4-000

Unavailable

18

HOLDER, REVERSE STOPPER WIRE (NOT AVAILABLE)

24871-HC4-000

Unavailable

19

COVER, SWITCH HARNESS (NOT AVAILABLE)

24880-HC4-000

Unavailable

20

SUB-WIRE, CHANGE SWITCH (NOT AVAILABLE)

32410-HC4-000

Unavailable

21

CLAMP, WIRE

32922-HC4-000

Unavailable

22

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

23

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HA8-034.

37750-HC4-751

$62.59

23

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$62.59

23

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HM5-630.

37750-HC4-751

$62.59

24

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

25

WASHER, SEALING

90401-HA8-000

$3.81

25

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.81

26

WASHER, THRUST (12MM)

90452-166-600

$2.39

27

WASHER, OIL BOLT

90545-300-000

$3.99

28

OIL SEAL (12X22X5)

91201-965-000

$4.06

28

OIL SEAL (12X22X5) (KOYO)

91202-HC4-005

$5.46

29

OIL SEAL (20X28X5) (KOYO)

91204-HC4-005

$7.08

29

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

30

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

31

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

32

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

33

O-RING (8.2X1.5)

91308-MC7-000

$2.31

34

NUT, HEX. (8MM)

94030-08000

$1.49

35

WASHER, PLAIN (8MM)

94102-08800

$1.49

36

PIN, DOWEL (8X14)

94301-08140

$2.25

37

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

38

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

39

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

40

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

41

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

42

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
