Description

Price

1

BAND B1, WIRE

32161-404-000

$2.23

2

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.31

3

SWITCH ASSY., IGNITION

35100-HM5-671

$68.56

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

5

RUBBER, MOUNTING

37215-HM5-670

$2.20

6

SOCKET ASSY., INDICATOR

37600-HM5-670

Unavailable

7

LENS, OIL INDICATOR (RED)

37602-HM5-670

$3.81

8

LENS, NEUTRAL INDICATOR (GREEN)

37603-HM5-670

$3.73

9

HANDLEBAR

53100-HC5-970

$68.48

10

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$18.84

11

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$18.84

12

HOLDER, HANDLE (LOWER)

53130-HB3-770

$21.17

13

COVER, HANDLE (TYPE2)

53205-HM5-A10ZA

$67.79

13

COVER, HANDLE (TYPE2) This part replaces 53205-HM5-670ZB.

53205-HM5-A10ZA

$67.79

14

CAP, HANDLE COVER NHA85 (TYPE2) (BLACK)

53206-HM5-730ZA

Unavailable

15

COLLAR, COVER SETTING

83601-357-000

$5.56

16

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

17

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

18

SCREW-WASHER (6X20)

93891-06020-08

$1.80

19

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

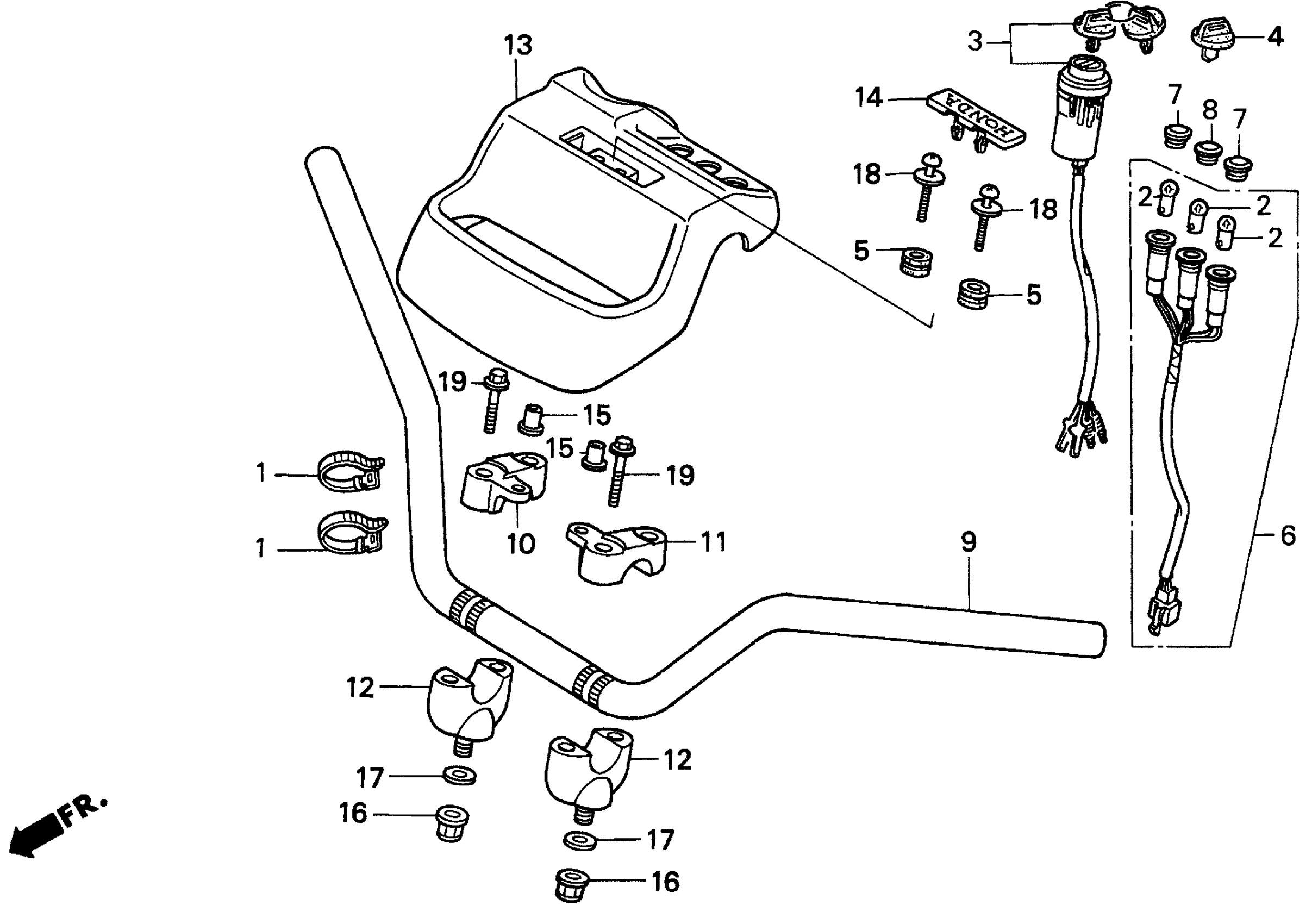

Honda TRX300A (97) FOURTRAX 300, USA, VIN# 478TE140-VA900001 HANDLEBAR Diagram
