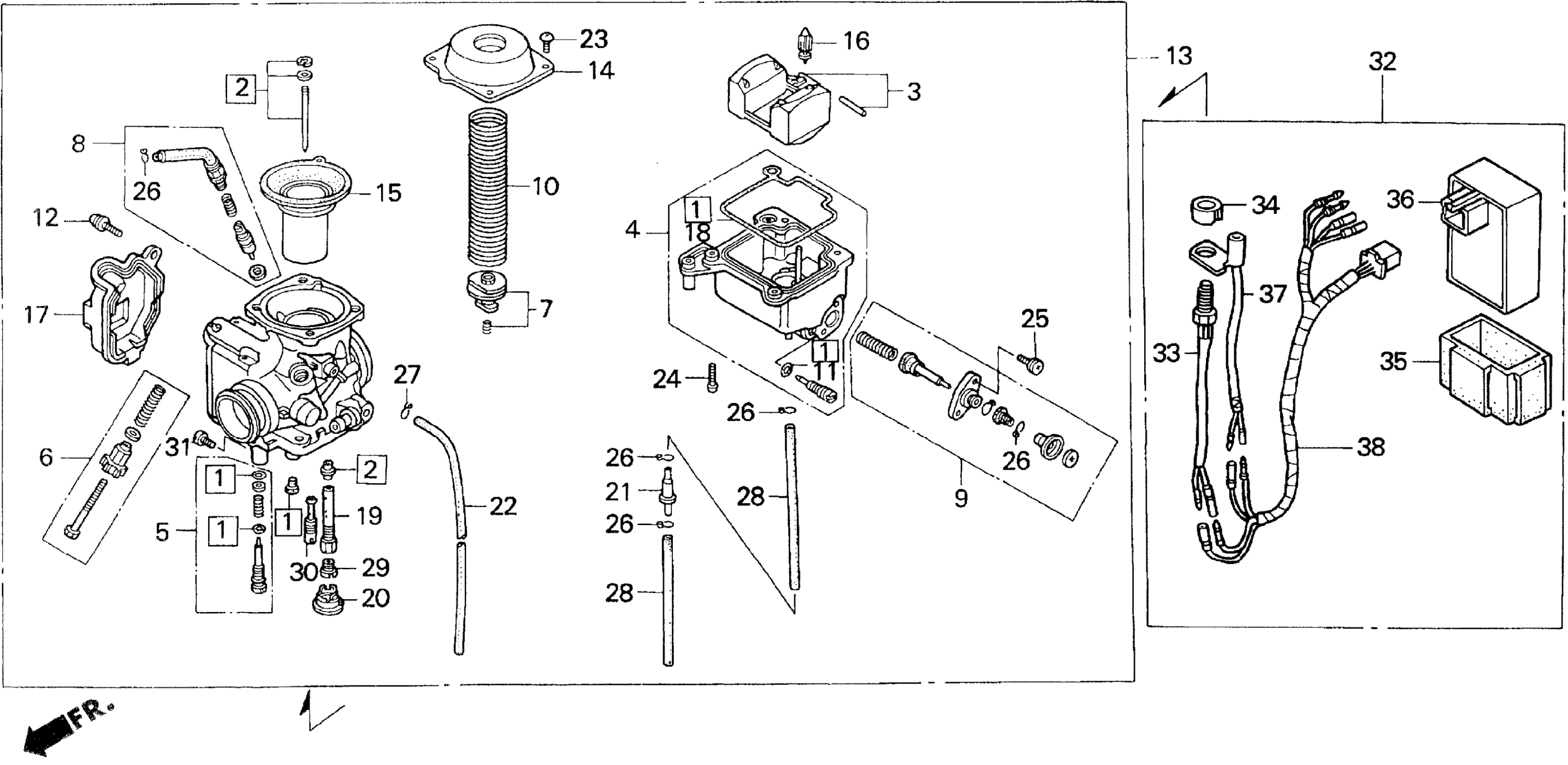

Honda TRX300A (97) FOURTRAX 300, USA, VIN# 478TE140-VA900001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HM5-730.

16010-HM7-700

$24.92

1

GASKET SET

16010-HM7-700

$24.92

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-HM5-730

Unavailable

3

FLOAT SET

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-HM5-730

Unavailable

5

SCREW SET

16016-HM5-730

Unavailable

6

SCREW SET

16028-HM5-730

$17.08

7

PLATE SET, VALVE

16037-HM5-L00

$19.00

7

PLATE SET, VALVE This part replaces 16037-KM3-751.

16037-HM5-L00

$19.00

8

VALVE SET, STARTER

16046-HM5-730

$67.50

9

PUMP SET This part replaces 16048-HC4-013.

16048-HN7-003

$87.67

9

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$87.67

9

PUMP SET

16048-HN7-003

$87.67

10

SPRING, COMPRESSION COIL This part replaces 16050-HC4-003.

16050-HM5-L00

$11.90

10

SPRING, COMPRESSION COIL

16050-HM5-L00

$11.90

12

SCREW-WASHER

16080-HC0-003

$4.15

13

CARBURETOR ASSY. (VE91D A)

16100-HM5-L01

$468.43

13

CARBURETOR ASSY. (VE91D A) This part replaces 16100-HM5-850.

16100-HM5-L01

$468.43

14

TOP

16107-KM3-702

Unavailable

15

PISTON, VACUUM

16111-HC4-003

Unavailable

16

VALVE, FLOAT

16155-397-971

$41.45

17

COVER, BODY This part replaces 16157-HC4-003.

16157-HN8-003

$27.51

17

COVER, BODY

16157-HN8-003

$27.51

19

HOLDER, NEEDLE JET This part replaces 16165-HC4-840.

16165-HN5-B01

$35.53

19

HOLDER, NEEDLE JET

16165-HN5-B01

$35.53

20

HOLDER, JET

16168-HC4-003

$12.24

21

VALVE, ONE-WAY

16180-HC4-003

$18.02

22

TUBE (NOT AVAILABLE)

16199-HM5-850

Unavailable

23

SCREW, PAN (4X8)

93500-04008-0H

$1.49

23

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

24

SCREW, PAN (4X14)

93500-04014-0H

$1.49

24

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

25

SCREW-WASHER (4X12)

93892-04012-08

$1.49

25

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

26

CLIP, TUBE (B7)

95002-02079

$1.49

27

CLIP, TUBE (B1 8)

95002-02089

$1.49

28

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-50M

$13.72

29

JET, MAIN (#120) | (Optional). This part replaces 99101-GHB-1200.

99101-MBZ-1200

$9.11

29

JET, MAIN (#125) This part replaces 99101-GHB-1250.

99101-443-1250

$5.78

29

JET, MAIN (#120) | (Optional).

99101-MBZ-1200

$9.11

29

JET, MAIN (#125)

99101-443-1250

$5.78

30

JET (#40) This part replaces 99103-MA1-0400.

99103-MAZ-0400

$11.06

31

JET (#85) This part replaces 99112-HC4-0850.

99112-HN2-0850

$16.95

31

JET (#85)

99112-HN2-0850

$16.95
