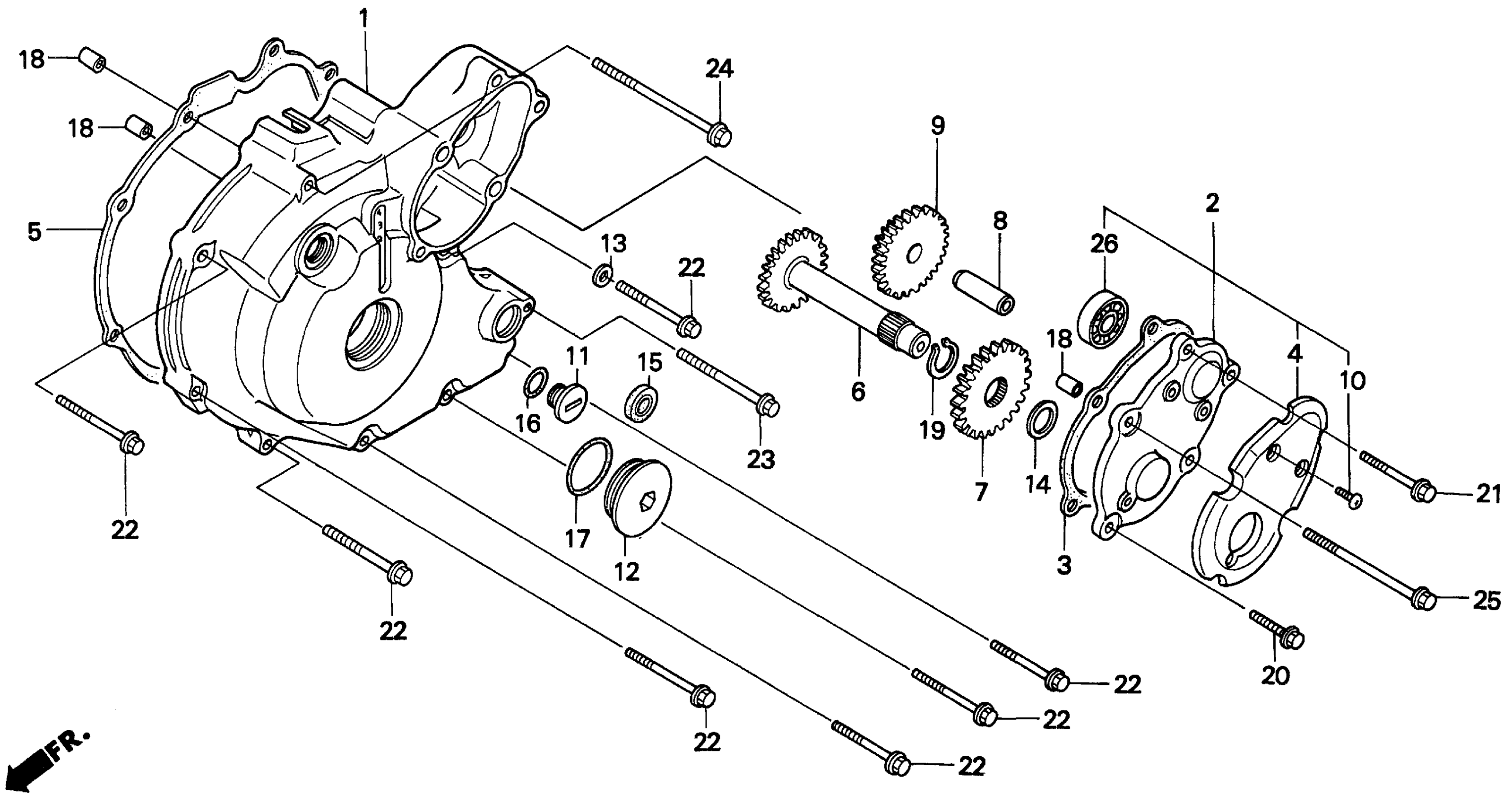

Honda TRX300A (97) FOURTRAX 300, USA, VIN# 478TE140-VA900001 300 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-HC4-000

Unavailable

2

COVER, STARTING GEAR (NOT AVAILABLE)

11350-HC4-000

Unavailable

3

GASKET, STARTING GEAR COVER

11356-HC5-741

$5.27

4

PROTECTOR, STARTING GEAR COVER (NOT AVAILABLE)

11357-HC4-000

Unavailable

5

GASKET, L. CRANKCASE COVER

11395-HC5-740

$15.68

6

SHAFT, STARTER REDUCTION (NOT AVAILABLE)

28130-HC4-000

Unavailable

7

GEAR C, STARTER REDUCTION (25T) (NOT AVAILABLE)

28131-HA0-770

Unavailable

8

SHAFT A, STARTER REDUCTION

28133-HA0-770

$10.88

9

GEAR, STARTER REDUCTION (43T/18T)

28140-HA0-770

Unavailable

10

SCREW, TAPPING (4X12)

90017-HA0-000

$2.36

11

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

11

CAP, ALTERNATOR

90084-471-000

Unavailable

12

CAP (30MM)

90087-HB5-000

$14.98

13

WASHER, SEALING (6MM)

90441-706-000

$1.06

14

WASHER, THRUST (12MM)

90451-GF6-000

$2.03

15

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$5.99

15

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$5.99

16

O-RING (13.8X2.5)

91303-377-000

$3.18

17

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

18

PIN, DOWEL (8X14)

94301-08140

$2.04

19

CIRCLIP (OUTER) (15MM)

94510-15000

$1.04

20

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

22

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

23

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

24

BOLT, FLANGE (6X70)

96001-06070-00

$1.78

25

BOLT, FLANGE (6X90)

96001-06090-00

$1.78

26

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
