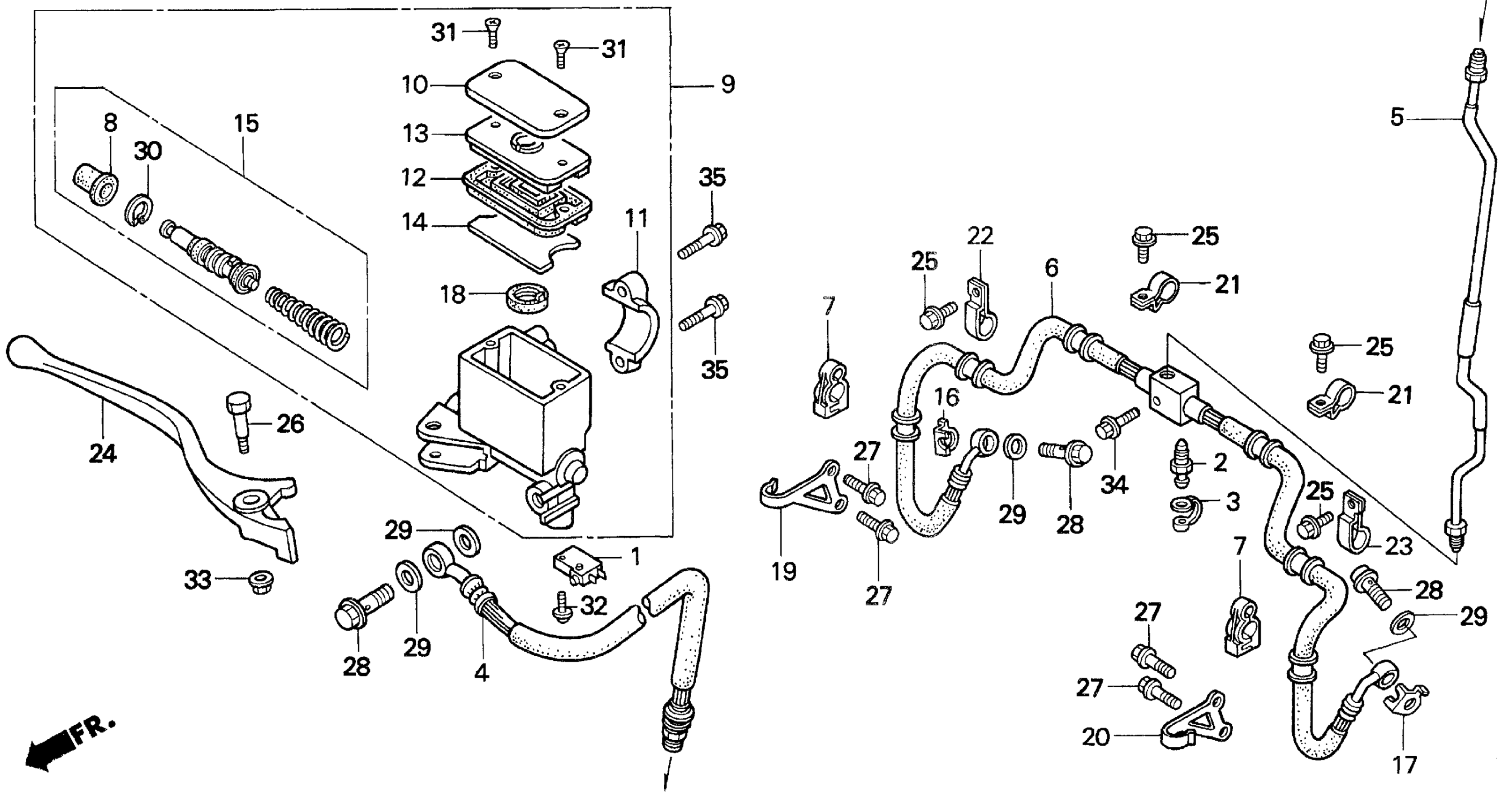

Honda TRX300A (97) FOURTRAX 300, USA, VIN# 478TE140-VA900001 300 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

2

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.21

3

CAP, BLEEDER

43353-461-771

$5.03

4

HOSE ASSY., FR. BRAKE (UPPER)

45126-HC4-841

Unavailable

4

HOSE ASSY., FR. BRAKE (UPPER) This part replaces 45126-HM4-830.

45126-HC4-841

Unavailable

5

PIPE A, FR. BRAKE (NOT AVAILABLE)

45127-HC4-840

Unavailable

6

HOSE B, FR. BRAKE

45128-HM4-851

Unavailable

6

HOSE B, FR. BRAKE This part replaces 45128-HM4-830.

45128-HM4-851

Unavailable

7

CLIP, BRAKE HOSE

45401-HM5-850

$1.82

8

BOOT

45504-410-003

$11.68

8

BOOT This part replaces 45504-HM4-830.

45504-410-003

$11.68

9

MASTER CYLINDER SUB-ASSY., FR.

45510-HC4-305

$220.92

9

MASTER CYLINDER SUB-ASSY., FR. This part replaces 45510-HM4-830.

45510-HC4-305

$220.92

10

CAP, MASTER CYLINDER

45513-HA2-006

$26.34

10

CAP, MASTER CYLINDER This part replaces 45513-HM5-830.

45513-HA2-006

$26.34

11

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

HOLDER, MASTER CYLINDER This part replaces 45517-HM4-830.

45517-166-006

Unavailable

12

DIAPHRAGM

45520-MG7-006

$10.17

12

DIAPHRAGM This part replaces 45520-HM4-830.

45520-MG7-006

$10.17

13

PLATE, DIAPHRAGM

45521-HA2-006

$10.41

13

PLATE, DIAPHRAGM This part replaces 45521-HM4-830.

45521-HA2-006

$10.41

14

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC4-841

Unavailable

14

FLOAT, FR. MASTER CYLINDER (NISSIN) This part replaces 45523-HM4-830.

45523-HC4-841

Unavailable

15

MASTER CYLINDER SET

45530-471-831

$37.94

15

MASTER CYLINDER SET This part replaces 45530-HM4-830.

45530-471-831

$37.94

16

WASHER, R. OIL BOLT

45535-HC4-840

$9.05

17

WASHER, L. OIL BOLT

45545-HC4-840

$9.05

18

SEPARATOR

46666-HB9-006

$9.00

18

SEPARATOR This part replaces 46666-HM4-830.

46666-HB9-006

$9.00

19

CLAMP, R. BRAKE HOSE (NOT AVAILABLE)

51201-HM4-850

Unavailable

20

CLAMP, L. BRAKE HOSE (NOT AVAILABLE)

51202-HM4-850

Unavailable

21

CLAMP A, FR. BRAKE HOSE (NOT AVAILABLE)

51207-HM4-850

Unavailable

22

CLAMP C, R. FR. BRAKE HOSE (SOURCE: VINTAGE PARTS INC.)

51208-HM4-850

Unavailable

23

CLAMP C, L. FR. BRAKE HOSE

51209-HM4-850

Unavailable

24

LEVER, R. HANDLEBAR

53175-HM3-000

$24.02

25

BOLT, FLANGE (6X10)

90107-HC5-000

$2.25

26

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.46

26

BOLT, HANDLE LEVER PIVOT This part replaces 90114-HM4-830.

90114-166-006

$6.46

27

BOLT, FLANGE (8X12)

90115-HM4-930

$3.86

28

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.29

28

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.29

29

WASHER, OIL BOLT

90545-300-000

$6.06

30

CIRCLIP

90651-MA5-671

$2.48

30

CIRCLIP This part replaces 90651-HM4-830.

90651-MA5-671

$2.48

31

SCREW, FLAT (4X12)

93600-04012-0G

$0.94

31

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.94

33

NUT, FLANGE (6MM)

94050-06000

$0.63

34

BOLT, FLANGE (6X16)

95701-06016-07

$1.71

35

BOLT, FLANGE (6X22)

96001-06022-07

$1.78
