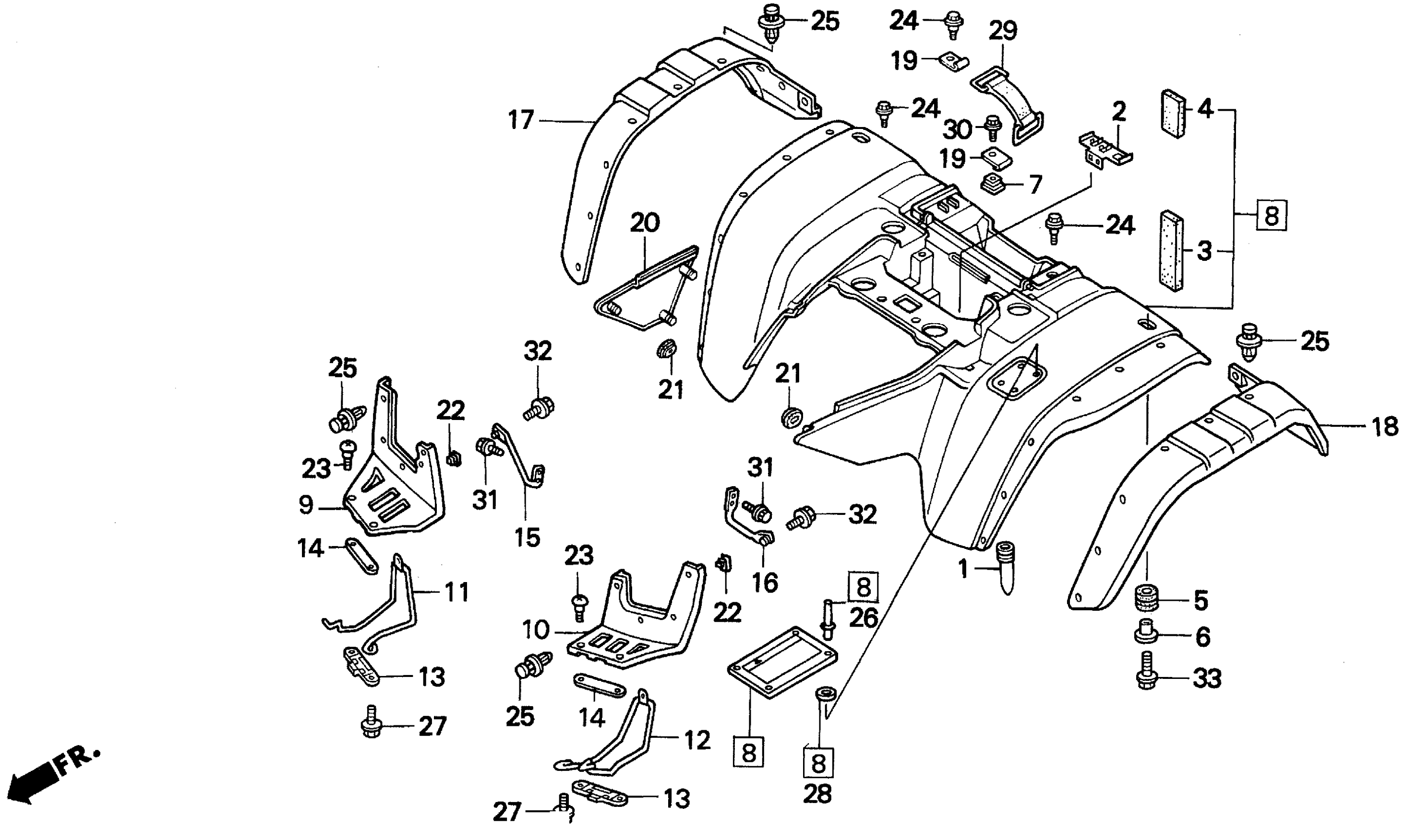

Honda TRX300A (96) FOURTRAX 300, USA, VIN# 478TE140-TA800001 REAR FENDER Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$10.24

2

STAY, CONNECTOR (NOT AVAILABLE)

50328-HM5-850

Unavailable

3

RUBBER, RR. BATTERY (NOT AVAILABLE)

50383-HM5-670

Unavailable

4

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.33

5

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

8

FENDER, RR. *G152* (ADVENTURE GREEN) FENDER, RR. *R232* This part replaces 80100-HM4-850ZA.

80100-HM4-A10ZA

Unavailable

8

FENDER, RR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 80100-HM4-850ZC.

80100-HM4-930ZC

Unavailable

8

FENDER, RR. *YR176* (HARVEST BEIGE) This part replaces 80100-HM4-850ZD.

80100-HM4-A10ZD

Unavailable

8

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HM4-A10ZA

Unavailable

8

FENDER, RR. *G152* (ADVENTURE GREEN) FENDER, RR. *R232* This part replaces 80100-HM4-930ZA.

80100-HM4-A10ZA

Unavailable

9

SPLASH GUARD, R. *NH1* (RR/FR) (BLACK)

80121-HC4-670ZA

$92.35

10

SPLASH GUARD, L. *NH1* (RR/FR) (BLACK)

80122-HC4-670ZA

$92.35

11

STAY, R. RR. SPLASH GUARD

80123-HM5-670

$58.96

12

STAY, L. RR. SPLASH GUARD

80124-HM5-670

Unavailable

13

HOLDER, SPLASH GUARD (LOWER)

80127-HM5-850

$36.74

14

HOLDER, SPLASH GUARD (UPPER)

80128-HA7-830

$5.85

14

HOLDER, SPLASH GUARD (UPPER) This part replaces 80128-HM5-850.

80128-HA7-830

$5.85

15

STAY, R. RR. FENDER

80217-HC5-970

Unavailable

16

STAY, L. RR. FENDER

80218-HC5-970

$46.62

17

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HM5-850ZA

$91.95

18

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HM5-850ZA

$91.95

19

HOOK, TOOL SETTING This part replaces 80312-HM5-850.

80312-HC4-000

Unavailable

20

COVER, R. SIDE *G152* (ADVENTURE GREEN)

83500-HM4-A10ZA

$37.59

20

COVER, R. SIDE *YR176* (HARVEST BEIGE)

83500-HM4-A10ZD

$33.80

20

COVER, R. SIDE *G152* (ADVENTURE GREEN) This part replaces 83500-HM4-730ZA.

83500-HM4-A10ZA

$37.59

20

COVER, R. SIDE *R109* (PASSION RED)

83500-HM4-730ZB

$44.94

20

COVER, R. SIDE *YR176* (HARVEST BEIGE) This part replaces 83500-HM4-730ZC.

83500-HM4-A10ZD

$33.80

21

GROMMET, SIDE COVER

83551-HM5-730

$1.49

22

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

23

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

24

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

25

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

26

RIVET, POP (3.2)

90841-HF1-910

$1.49

27

BOLT-WASHER (6X16)

93404-06016-07

$1.55

28

WASHER, PLAIN (3MM)

94103-03800

$1.49

29

BAND B1, BATTERY

95012-12001

$5.90

30

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

31

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

32

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

33

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
