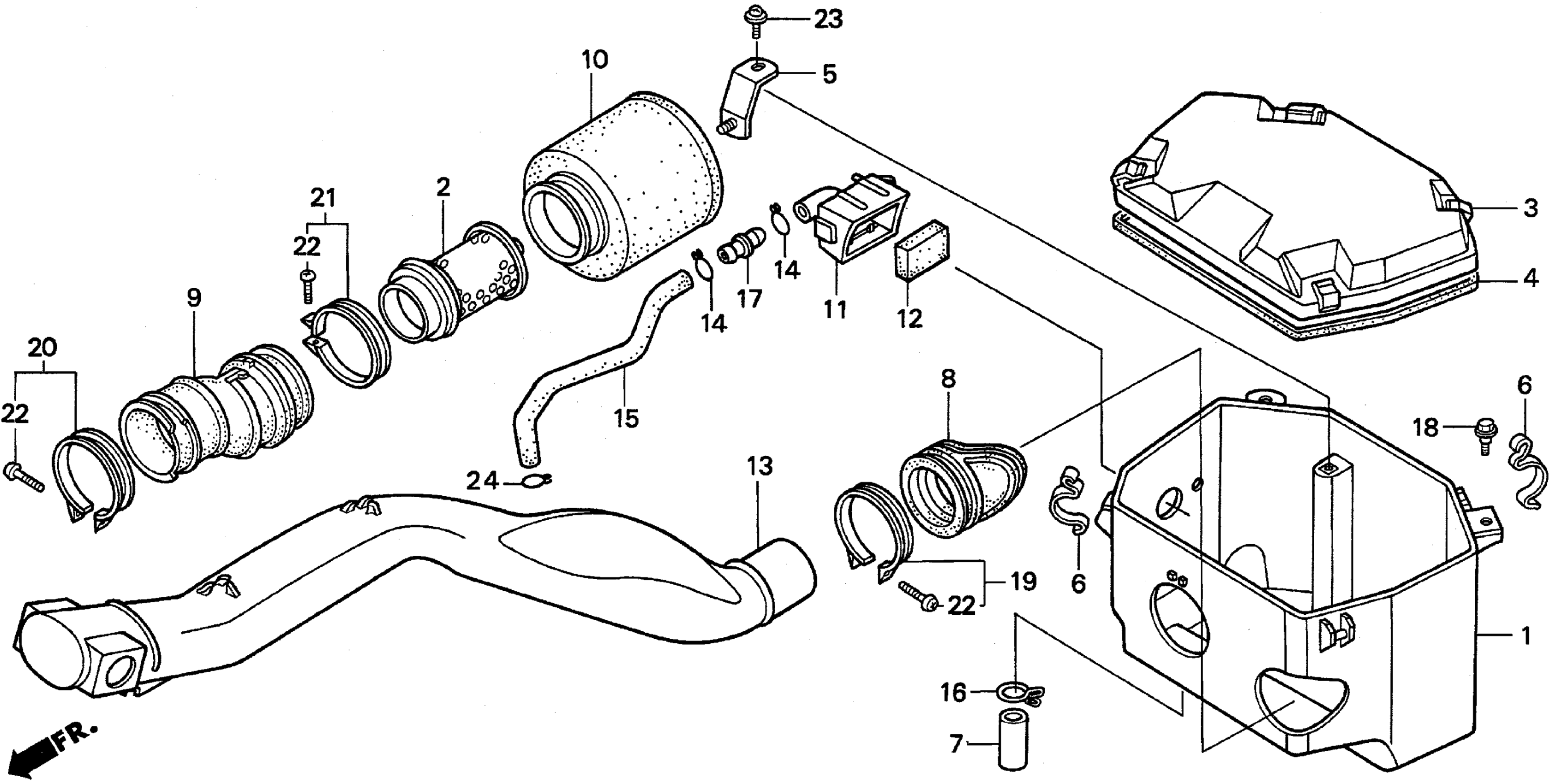

Honda TRX300A (96) FOURTRAX 300, USA, VIN# 478TE140-TA800001 AIR CLEANER Diagram

#

Description
Price

1

AIR CLEANER HOUSING

17210-HC5-970

Unavailable

2

BODY, AIR CLEANER

17211-HC5-970

$87.20

3

COVER, AIR CLEANER HOUSING

17217-HC4-000

$34.60

4

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.69

4

SEAL, AIR CLEANER COVER This part replaces 17219-HC5-900.

17219-HA2-405

$5.69

5

STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17221-HC5-900

Unavailable

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

7

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$9.67

7

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$9.67

8

SEAL B, AIR CLEANER DUCT This part replaces 17252-HM5-730.

17252-HC4-000

$16.06

8

SEAL B, AIR CLEANER DUCT

17252-HC4-000

$16.06

9

TUBE, AIR CLEANER CONNECTING

17253-HC5-970

Unavailable

10

AIR CLEANER

17254-HC5-900

$15.42

13

DUCT, SNORKEL

17259-HC5-970

Unavailable

16

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

18

BOLT, FLANGE (6MM)

90112-GC6-000

$3.60

19

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 90652-GHB-690.

95018-52250

$4.90

19

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$4.90

20

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$5.97

20

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$5.97

21

BAND, AIR CLEANER CONNECTING TUBE (74) This part replaces 90652-GHB-800.

95018-74250

$6.48

21

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.48

22

SCREW, PAN (4X25)

93500-04025-0G

$0.60

23

SCREW-WASHER (6X12)

93891-06012-08

$1.13
