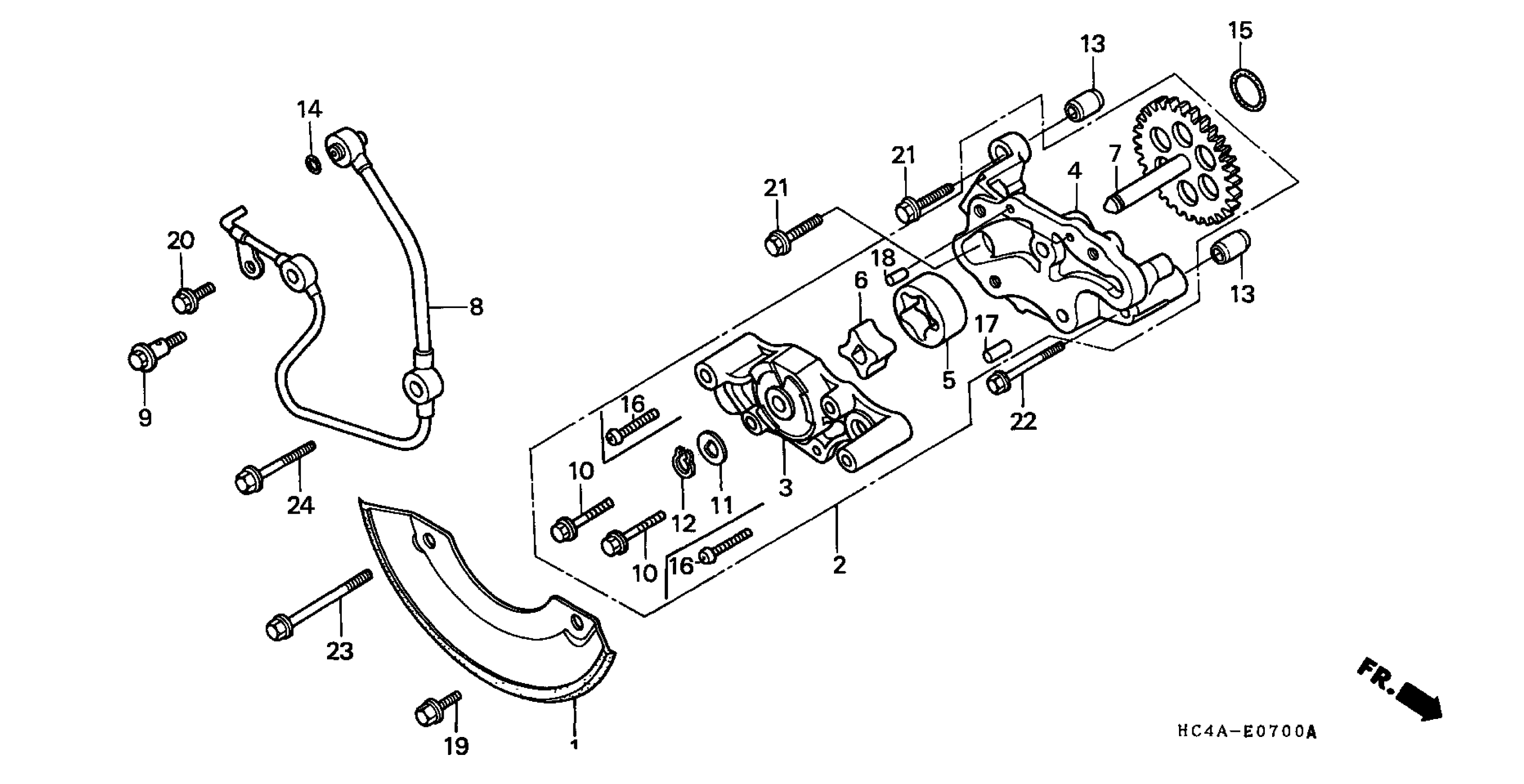

Honda TRX300A (95) FOURTRAX 300, USA, VIN# 478TE140-SA700001 TO 478TE140-SA799999 OIL PUMP Diagram

PLATE, OIL SEPARATE (KOYO) (NOT AVAILABLE)

11140-HC4-005

Unavailable

PUMP ASSY., OIL (NOT AVAILABLE)

15100-HM5-670

Unavailable

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$30.62

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$23.70

GEAR, OIL PUMP DRIVEN (30T) (NOT AVAILABLE)

15140-HA0-010

Unavailable

PIPE, OIL (NOT AVAILABLE)

15510-HA7-670

Unavailable

BOLT, FLANGE (7X18.5)

15532-HA0-000

$9.59

BOLT, FLANGE (5X22) This part replaces 90014-ZV1-000.

90014-ZV1-010

$1.49

BOLT, FLANGE (5X22)

90014-ZV1-010

$1.49

WASHER (8MM)

90465-HA0-000

Unavailable

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.94

PIN, DOWEL (8X10)

91103-429-000

$2.56

O-RING (8.2X1.5)

91308-MC7-000

$2.31

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X35)

95801-06035-08

$1.89
