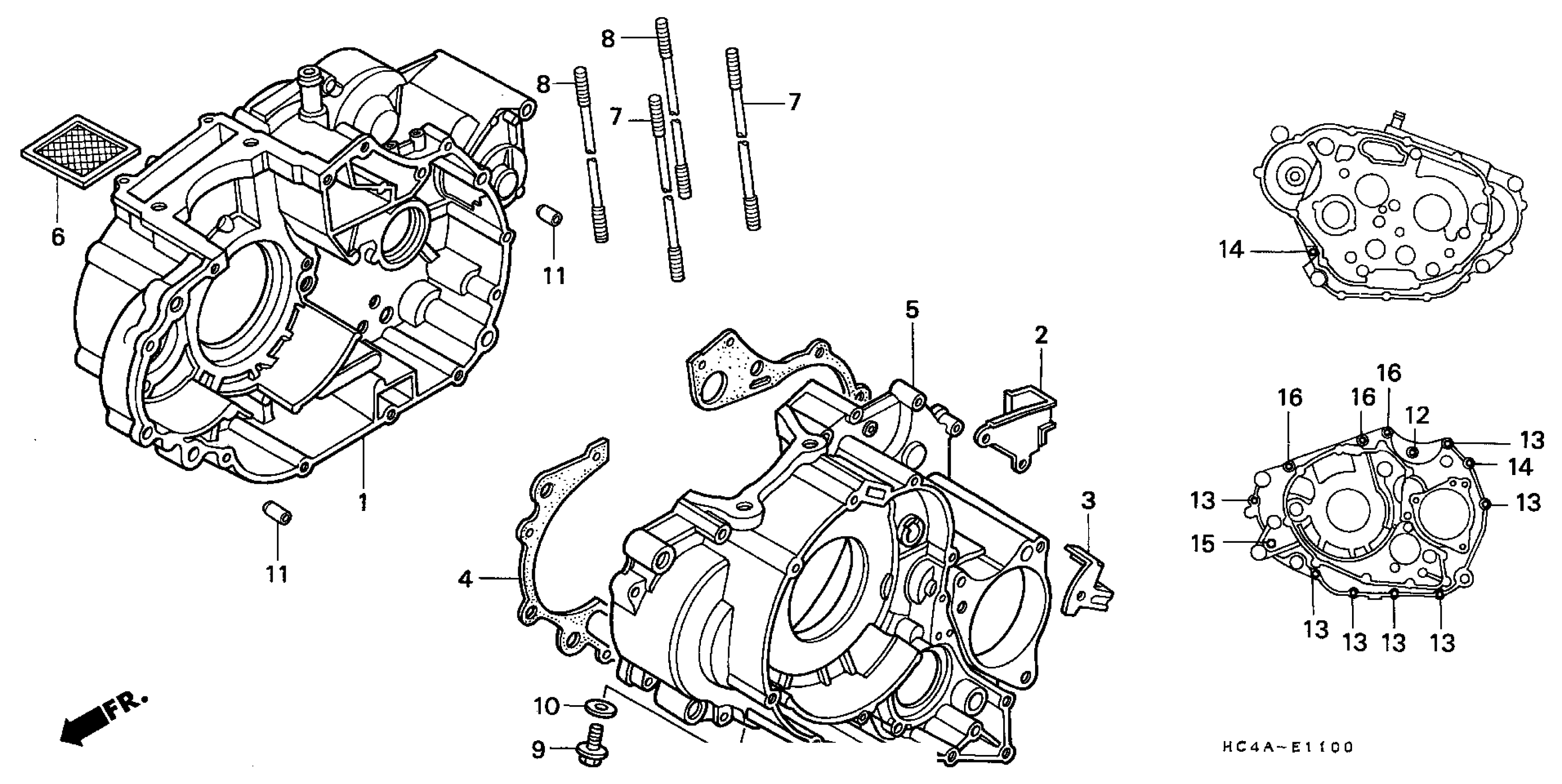

Honda TRX300A (95) FOURTRAX 300, USA, VIN# 478TE140-SA700001 TO 478TE140-SA799999 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-HC4-010.

11100-HM5-A10

Unavailable

CLAMP, BREATHER TUBE (SOURCE: VINTAGE PARTS INC.)

11106-HC4-010

Unavailable

CLAMP B, BREATHER TUBE (NOT AVAILABLE)

11107-HA0-680

Unavailable

GASKET, CRANKCASE (NOT AVAILABLE)

11191-HC5-740

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-HC4-000

Unavailable

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

BOLT, STUD (10X156)

90031-HA0-000

Unavailable

BOLT, STUD (10X166) (NOT AVAILABLE)

90032-HA0-000

Unavailable

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X60)

96001-06060-00

$2.06
