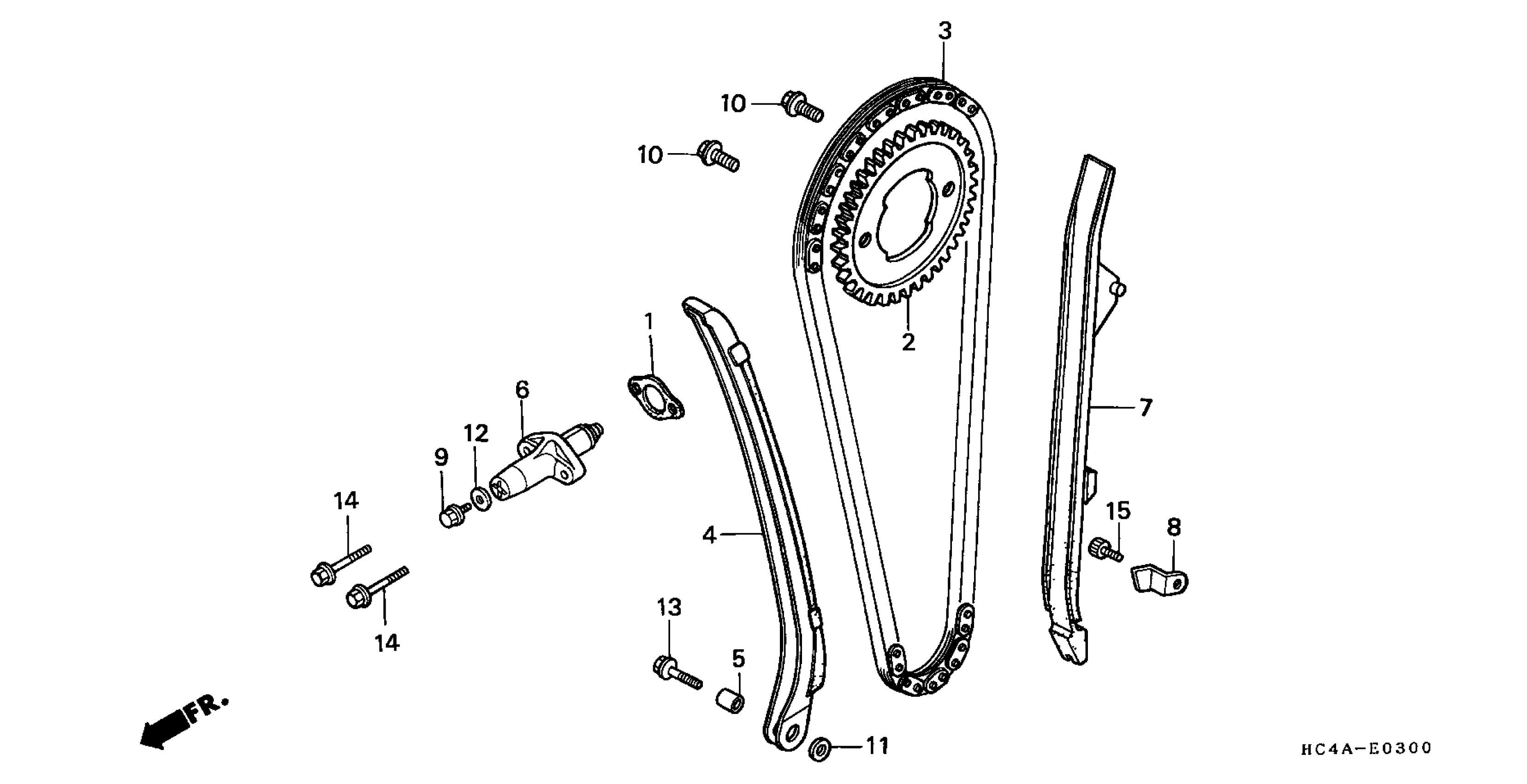

Honda TRX300A (95) FOURTRAX 300, USA, VIN# 478TE140-SA700001 TO 478TE140-SA799999 CAM CHAIN Diagram

GASKET, TENSIONER HOLE

12194-HC5-740

$2.48

SPROCKET, CAMSHAFT (38T) (NOT AVAILABLE)

14321-HC4-000

Unavailable

CHAIN, CAM (110L) (BORG WARNER)

14401-HC0-003

$182.42

TENSIONER, CAM CHAIN (KOYO)

14511-HC4-005

$81.74

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-HA0-771

$117.71

GUIDE, CAM CHAIN (KOYO)

14620-HC4-005

$48.46

HOLDER, CHAIN GUIDE (NOT AVAILABLE)

14625-HA0-000

Unavailable

BOLT, FLANGE (6X13)

90002-HA7-670

$4.24

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, SOCKET (6X12)

96600-06012-00

$1.74
