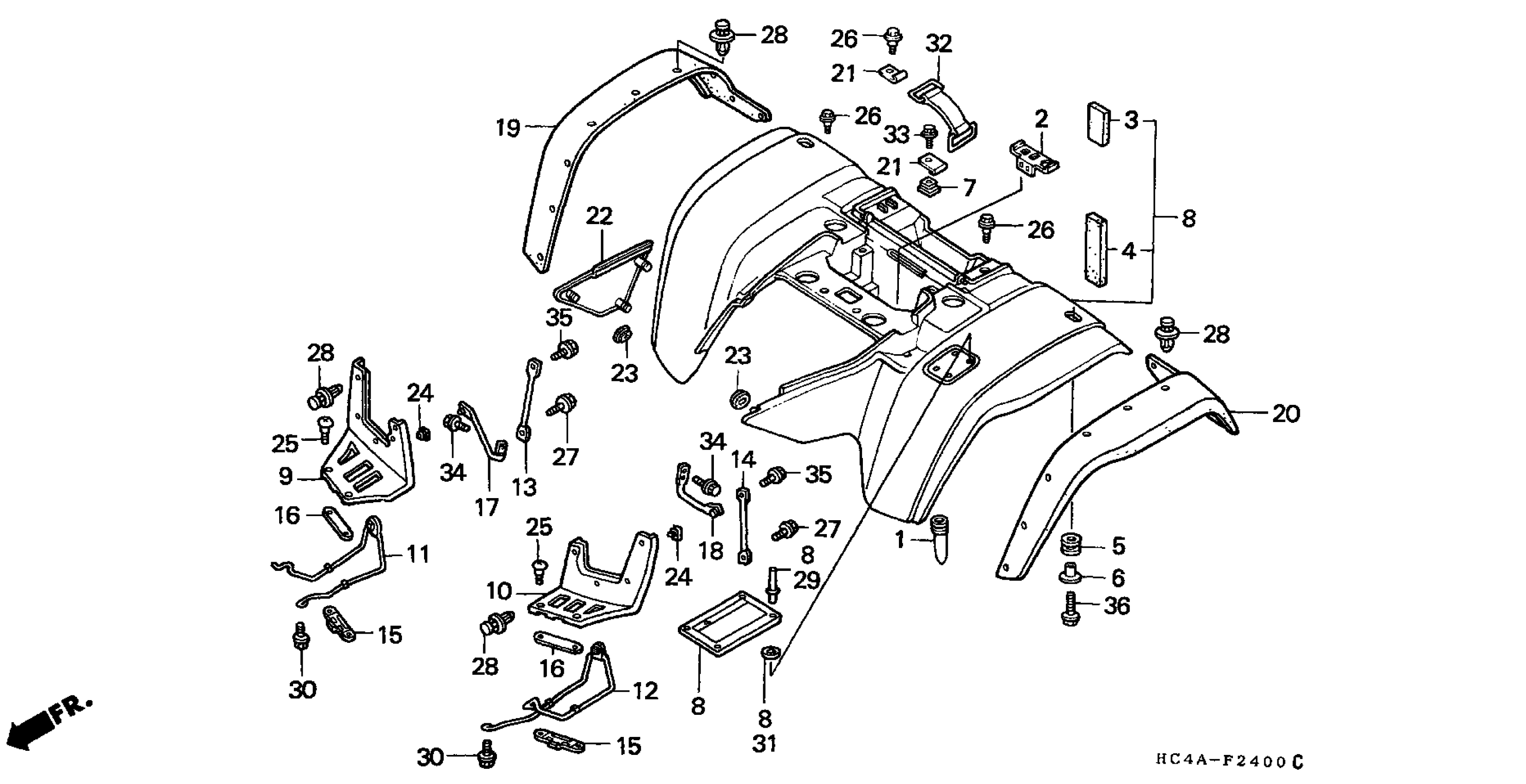

Honda TRX300A (93) FOURTRAX 300, USA, VIN# 478TE140-PA500001 TO 478TE140-PA599999 REAR FENDER Diagram

#

Description
Price

1

TUBE, DRAIN

17358-VM4-000

$10.24

2

STAY, CONNECTOR (SOURCE: VINTAGE PARTS INC.)

50328-HC4-000

Unavailable

3

RUBBER, RR. BATTERY

50383-HC4-750

$7.26

5

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

6

COLLAR, FR. FENDER (WHITE)

61104-428-010

$4.42

6

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.21

7

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

8

FENDER, RR. *R109* (PASSION RED) (NOT AVAILABLE)

80100-HC4-840ZA

Unavailable

8

FENDER, RR. *PB149* (SOUTHERN BLUE) (NOT AVAILABLE)

80100-HC4-840ZB

Unavailable

9

SPLASH GUARD, R. *NH1* (RR/FR) (BLACK)

80121-HC4-670ZA

$92.35

10

SPLASH GUARD, L. *NH1* (RR/FR) (BLACK)

80122-HC4-670ZA

$92.35

11

STAY, R. RR. SPLASH GUARD (NOT AVAILABLE)

80123-HC5-970

Unavailable

12

STAY, L. RR. SPLASH GUARD (NOT AVAILABLE)

80124-HC5-970

Unavailable

15

HOLDER, SPLASH GUARD (LOWER) This part replaces 80127-HC4-770.

80127-HM5-850

$36.74

15

HOLDER, SPLASH GUARD (LOWER)

80127-HM5-850

$36.74

16

HOLDER, SPLASH GUARD (UPPER)

80128-HA7-830

$5.85

17

STAY, R. RR. FENDER

80217-HC5-970

Unavailable

18

STAY, L. RR. FENDER

80218-HC5-970

$46.62

21

HOOK, TOOL SETTING (NOT AVAILABLE)

80312-HC4-000

Unavailable

22

COVER, R. SIDE *R109* (PASSION RED) This part replaces 83500-HC4-671ZA.

83500-HM4-730ZB

$44.94

22

COVER, R. SIDE *R109* (PASSION RED)

83500-HM4-730ZB

$44.94

22

COVER, R. SIDE *PB149* (SOUTHERN BLUE) This part replaces 83500-HC4-671ZB.

83500-HM4-730ZD

$37.33

22

COVER, R. SIDE *PB149* (SOUTHERN BLUE)

83500-HM4-730ZD

$37.33

23

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

24

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

25

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

26

BOLT, FLANGE (6X14)

90111-HC4-000

$2.99

28

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

29

RIVET, POP (3.2)

90841-HF1-670

$1.62

30

BOLT-WASHER (6X16)

93404-06016-07

$1.55

31

WASHER, PLAIN (3MM)

94103-03800

$1.49

32

BAND B1, BATTERY

95012-12001

$5.90

33

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

34

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

35

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

36

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
