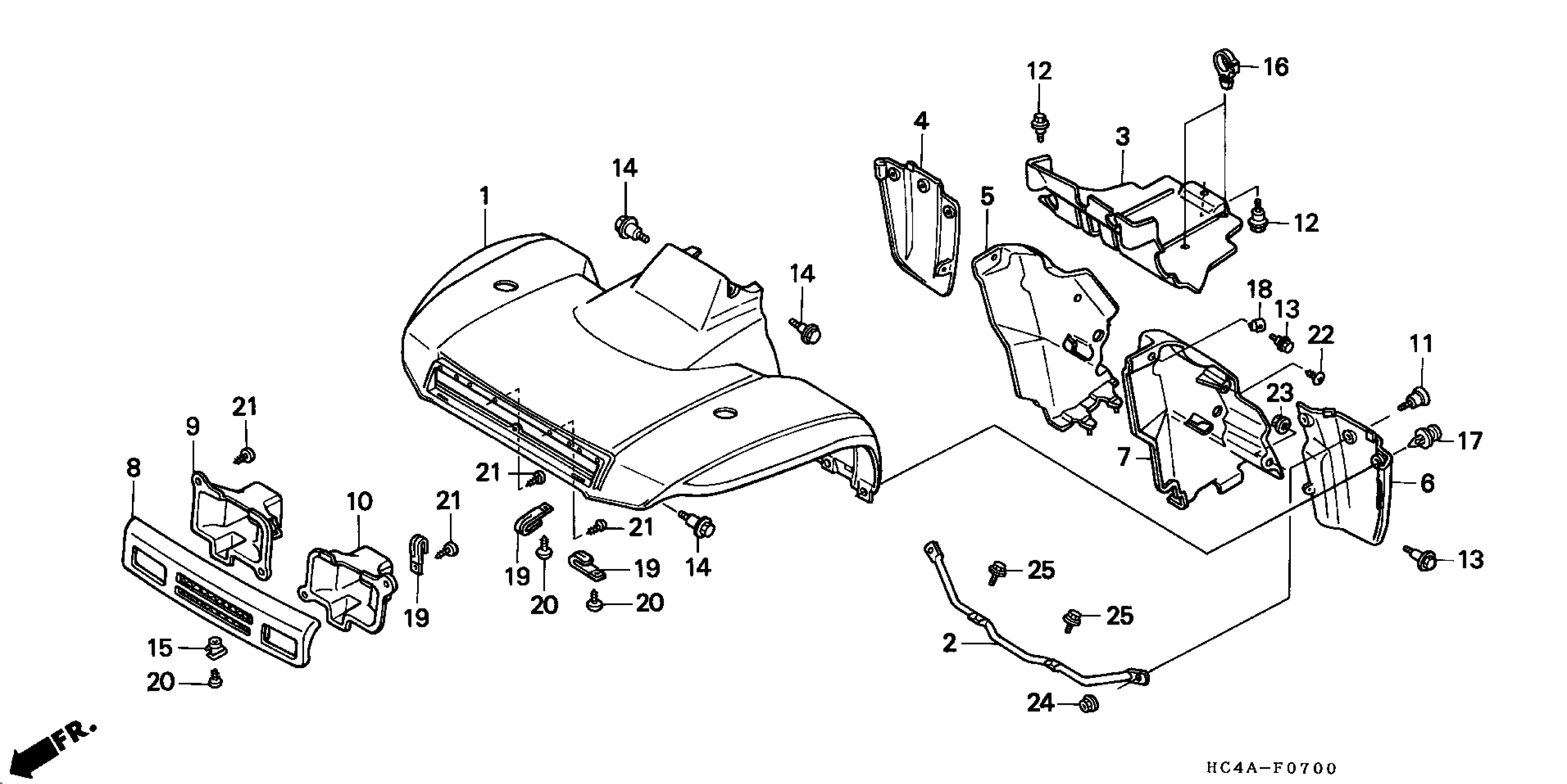

Honda TRX300A (92) FOURTRAX 300, USA, VIN# 478TE140-NA400003 TO 478TE140-NA414142 TRX300 FRONT FENDER (TRX300) ('92) 92 Diagram

FENDER, FR. *R109* (PASSION RED)

61100-HC4-672ZA

Unavailable

STAY, FENDER SUPPORT (NOT AVAILABLE)

61101-HC4-010

Unavailable

PLATE, SNORKEL (LOWER) (SOURCE: VINTAGE PARTS INC.)

61720-HC4-000

$25.39

SPLASH GUARD, R. FR. *NH1* (BLACK) (NOT AVAILABLE)

61861-HC4-000ZA

Unavailable

FENDER, R. FR. (INNER) (NOT AVAILABLE)

61862-HC4-000

Unavailable

SPLASH GUARD, L. FR. *NH1* (BLACK) (SOURCE: VINTAGE PARTS INC.)

61866-HC4-000ZA

Unavailable

FENDER, L. FR. (INNER) (SOURCE: VINTAGE PARTS INC.)

61867-HC4-000

Unavailable

GRILLE, FR. *R109* (PASSION RED) This part replaces 66300-HC4-671ZA.

66300-HM4-730ZB

Unavailable

GRILLE, FR. *R109* (PASSION RED)

66300-HM4-730ZB

Unavailable

COVER, R. HEADLIGHT

66301-HC4-000

Unavailable

COVER, L. HEADLIGHT

66302-HC4-000

Unavailable

SCREW, SPLASH GUARD This part replaces 90101-HB3-003.

90101-HB3-004

$5.23

SCREW, SPLASH GUARD

90101-HB3-004

$5.23

BOLT, FLANGE (6MM)

90111-GJ5-000

$3.95

BOLT, FLANGE (6MM)

90111-147-000

$2.62

BOLT, FLANGE (6MM)

90111-162-000

$2.62

NUT, SPRING (4MM)

90302-SA4-003

$4.91

CLAMP, HARNESS

90652-HC4-003

$5.54

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

NUT, CLIP (6MM)

90673-SB2-000

$6.48

CLIP (4X60)

91410-KT7-000

$4.58

SCREW, TAPPING (4X12)

93903-24320

$0.83

SCREW, TAPPING (5X16)

93903-25320

$0.83

SCREW, TAPPING (6X16)

93904-26210

$0.55

NUT, FLANGE (6MM)

94050-06000

$0.59

NUT, FLANGE (6MM)

94050-06080

$0.59

BOLT, FLANGE (6X14)

95701-06014-08

$1.48
