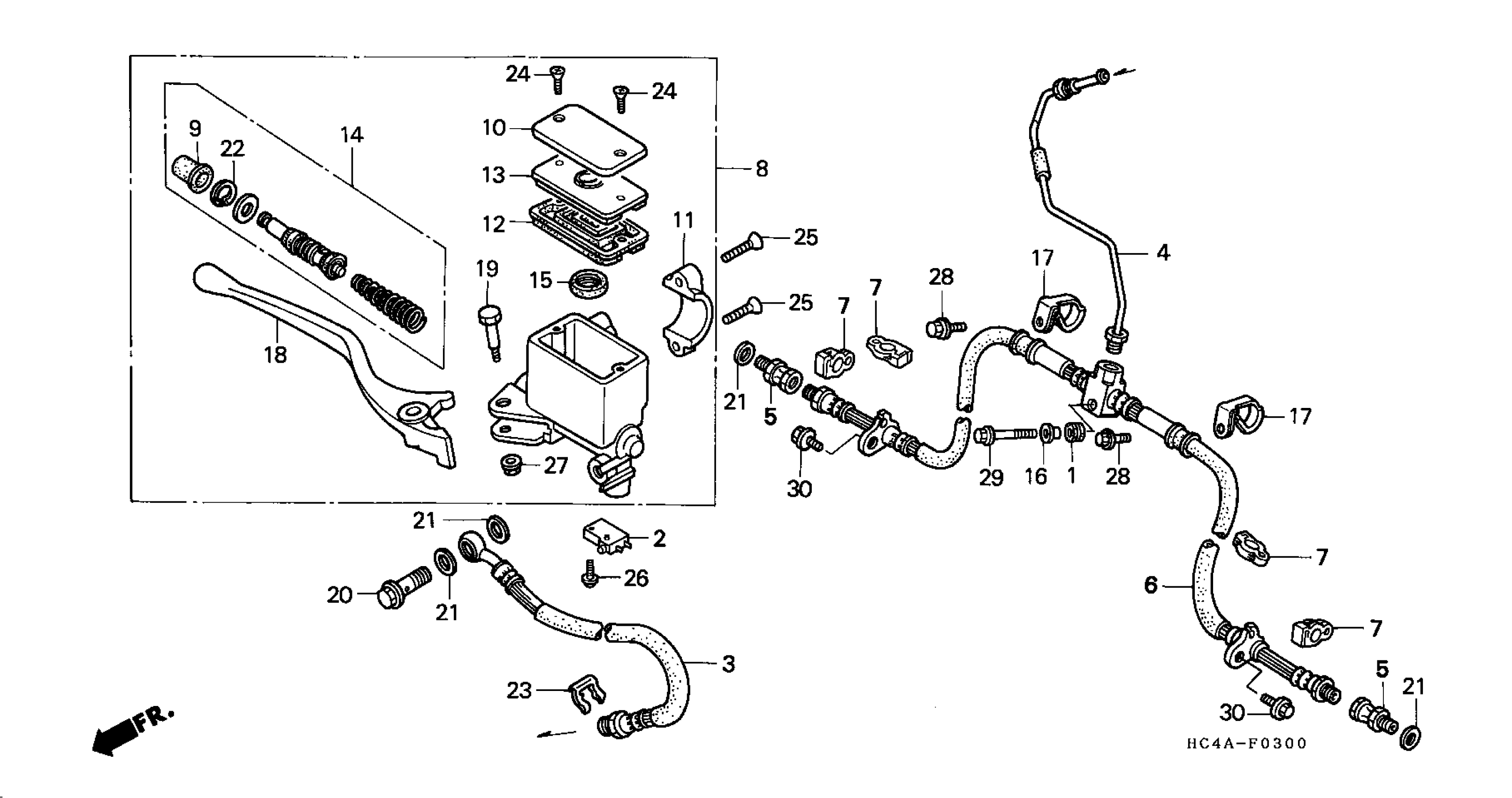

Honda TRX300A (92) FOURTRAX 300, USA, VIN# 478TE140-NA400003 TO 478TE140-NA414142 TRX300 FRONT BRAKE MASTER CYLINDER 92 Diagram

#

Description
Price

1

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

HOSE, FR. BRAKE (UPPER) (NOT AVAILABLE)

45126-HC4-751

Unavailable

4

PIPE A, FR. BRAKE (NOT AVAILABLE)

45127-HC4-010

Unavailable

5

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

6

HOSE, FR. BRAKE (LOWER) (NOT AVAILABLE)

45128-HC4-751

Unavailable

7

CLIP, BRAKE HOSE (NOT AVAILABLE)

45401-HC4-771

Unavailable

8

MASTER CYLINDER ASSY., FR. (NISSIN) (NA USE ALT:45510-HC4-405)

45500-HC4-016

Unavailable

9

BOOT

45504-410-003

$12.16

10

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

11

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-961-000

Unavailable

12

DIAPHRAGM

45520-MG7-006

$10.61

13

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

14

MASTER CYLINDER SET

45530-471-831

$40.86

15

SEPARATOR

46666-HB9-006

$9.38

16

COLLAR, ELECTRIC PLATE

50302-KG1-000

Unavailable

17

CLAMP, FR. BRAKE HOSE (NOT AVAILABLE)

51201-HC4-000

Unavailable

18

LEVER, R. HANDLEBAR

53175-HC4-010

$22.79

19

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

20

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

CLIP, BRAKE HOSE

90651-538-000

$6.77

24

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

24

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

25

SCREW, OVAL (6X22) (NOT AVAILABLE)

93700-06022-0G

Unavailable

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

30

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
