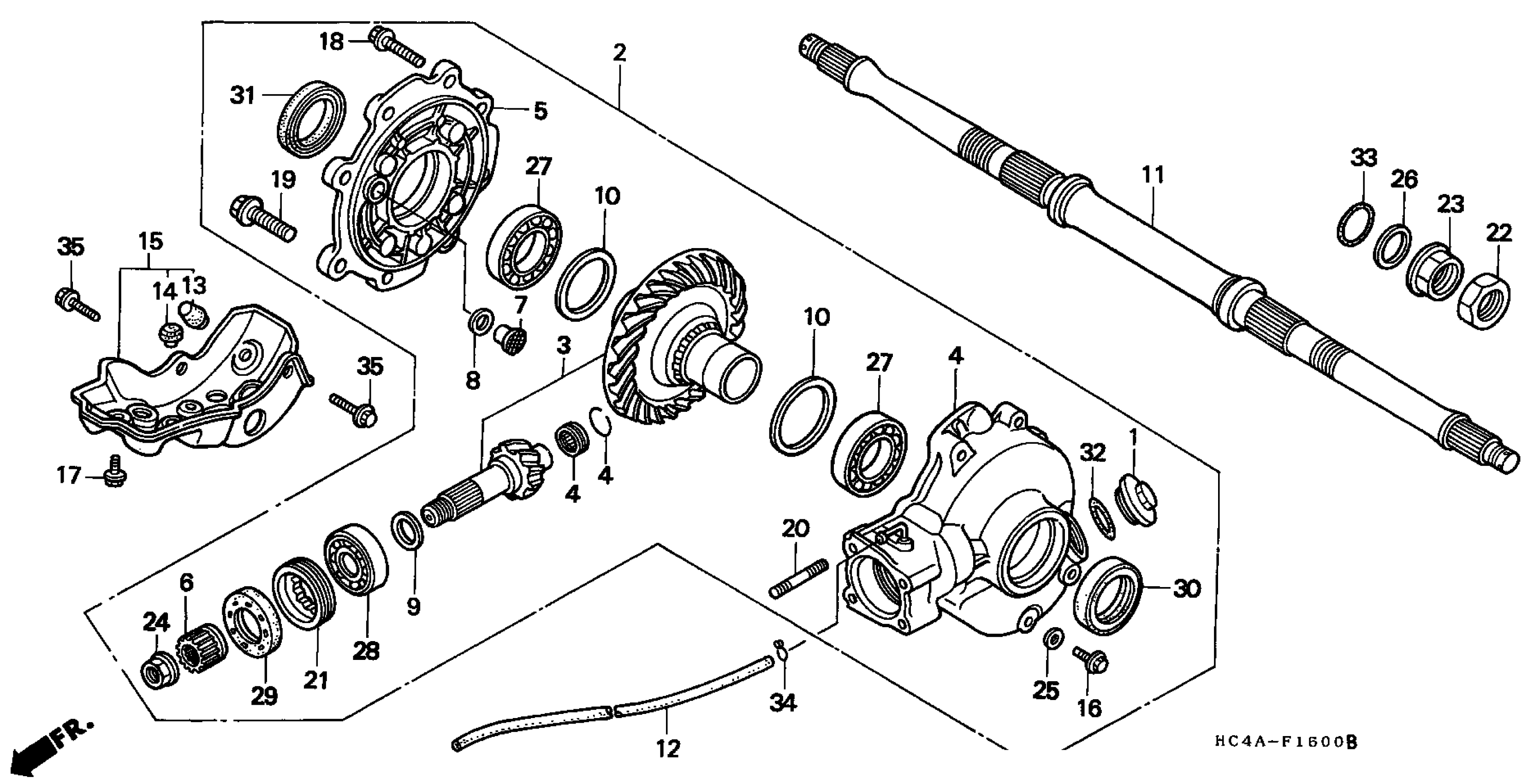

Honda TRX300A (92) FOURTRAX 300, USA, VIN# 478TE140-NA400003 TO 478TE140-NA414142 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL (NOT AVAILABLE)

41300-HC4-000

Unavailable

3

GEAR SET, FINAL (NOT AVAILABLE)

41310-HC4-300

Unavailable

4

CASE SET, FINAL (NOT AVAILABLE)

41311-HC5-305

Unavailable

5

COVER, FINAL GEAR CASE (NOT AVAILABLE)

41321-HC4-000

Unavailable

6

JOINT, PINION (NOT AVAILABLE)

41411-HA0-000

Unavailable

7

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

8

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

8

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

9

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$8.03

9

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

9

SHIM C, PINION GEAR (1.94)

41453-HA0-000

$6.70

9

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$8.03

9

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

9

SHIM F, PINION GEAR (2.12)

41456-HA0-000

$6.26

9

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

10

SPACER U, RING GEAR (0.96) (NOT AVAILABLE)

41535-HC4-000

Unavailable

10

SPACER V, RING GEAR (1.02) (NOT AVAILABLE)

41536-HC4-000

Unavailable

10

SPACER W, RING GEAR (1.08) (NOT AVAILABLE)

41537-HC4-000

Unavailable

10

SPACER X, RING GEAR (1.14) (NOT AVAILABLE)

41538-HC4-000

Unavailable

10

SPACER Y, RING GEAR (1.20) (NOT AVAILABLE)

41539-HC4-000

Unavailable

10

SPACER A, RING GEAR (1.26)

41540-HC4-000

$12.72

10

SPACER B, RING GEAR (1.32)

41541-HC4-000

$12.72

10

SPACER C, RING GEAR (1.38)

41542-HC4-000

$12.72

10

SPACER D, RING GEAR (1.44)

41543-HC4-000

$12.72

10

SPACER E, RING GEAR (1.50)

41544-HC4-000

$12.72

10

SPACER F, RING GEAR (1.56)

41545-HC4-000

$11.99

10

SPACER G, RING GEAR (1.62)

41546-HC4-000

$12.72

10

SPACER H, RING GEAR (1.68)

41547-HC4-000

$11.99

10

SPACER I, RING GEAR (1.74)

41548-HC4-000

$12.72

10

SPACER J, RING GEAR (1.80)

41549-HC4-000

$12.72

10

SPACER K, RING GEAR (1.86)

41550-HC4-000

$11.99

10

SPACER L, RING GEAR (1.92) (NOT AVAILABLE)

41551-HC4-000

Unavailable

10

SPACER M, RING GEAR (1.98) (NOT AVAILABLE)

41552-HC4-000

Unavailable

10

SPACER N, RING GEAR (2.04)

41553-HC4-000

Unavailable

10

SPACER O, RING GEAR (2.10) (NOT AVAILABLE)

41554-HC4-000

Unavailable

10

SPACER P, RING GEAR (2.16) (NOT AVAILABLE)

41555-HC4-000

Unavailable

10

SPACER Q, RING GEAR (2.22) (NOT AVAILABLE)

41556-HC4-000

Unavailable

10

SPACER R, RING GEAR (2.28) (NOT AVAILABLE)

41557-HC4-000

Unavailable

10

SPACER S, RING GEAR (2.34) (NOT AVAILABLE)

41558-HC4-000

Unavailable

10

SPACER T, RING GEAR (2.40)

41559-HC4-000

Unavailable

11

AXLE, RR.

42310-HC4-900

Unavailable

12

TUBE, BREATHER (3.5X1200) (NOT AVAILABLE)

43133-HC4-000

Unavailable

13

RUBBER A, STOPPER

50352-428-000

$2.75

14

RUBBER B, STOPPER

50354-428-000

$2.75

15

PLATE, SKID (SOURCE: VINTAGE PARTS INC.) This part replaces 50355-HC4-670.

50355-HM5-730

$292.90

15

PLATE, SKID (SOURCE: VINTAGE PARTS INC.)

50355-HM5-730

$292.90

16

BOLT, SEALING (8MM)

90109-371-000

$2.58

17

BOLT, FLANGE (8X10)

90116-965-000

Unavailable

18

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

19

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

20

BOLT, STUD (10X25)

90137-HA7-770

Unavailable

21

NUT, LOCK (60MM)

90244-HA0-000

$37.87

22

NUT, RR. AXLE This part replaces 90307-HC4-000.

90307-HM5-930

$3.40

22

NUT, RR. AXLE

90307-HM5-930

$3.40

23

NUT A, RR. AXLE This part replaces 90308-HC4-000.

90308-HM5-930

$3.83

23

NUT A, RR. AXLE

90308-HM5-930

$3.83

24

NUT, HEX. (16MM)

90381-HA0-000

$7.88

25

GASKET (8MM)

90471-580-000

$2.92

26

WASHER, TAPER

90481-HC4-000

$7.70

27

BEARING, RADIAL BALL (43X68X13)

91051-HC4-003

$47.70

28

BEARING, RADIAL BALL (22X56X16)

91063-HC4-771

Unavailable

29

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-013.

91251-HC5-005

$16.83

29

OIL SEAL (38X64X11) (KOYO)

91251-HC5-005

$16.83

30

DUST SEAL (42X58X11)

91252-HC4-003

$16.70

31

OIL SEAL (42X51X7)

91271-HC4-004

$10.65

32

O-RING (30.8MM)

91302-001-020

$3.75

33

O-RING (31.6X2.2)

91354-HC4-901

$2.61

34

CLIP, TUBE (B7)

95002-02070

$1.80

35

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
