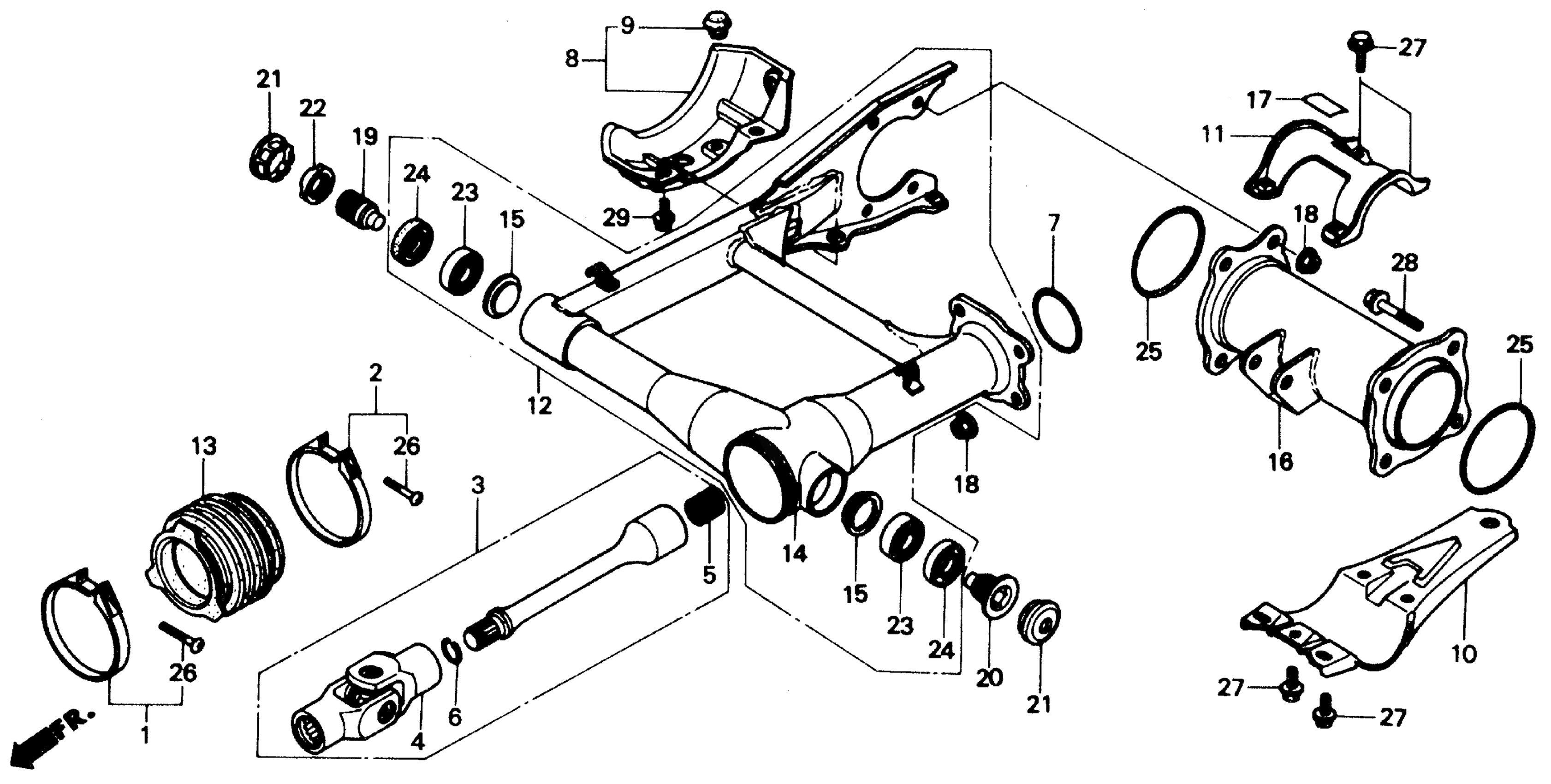

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 SWINGARM Diagram

#

Description
Price

1

BAND, BOOT JOINT

17255-HC4-000

$10.74

2

BAND, BOOT JOINT

17256-HC4-000

$12.46

3

JOINT ASSY., YOKE (NOT AVAILABLE)

40200-HC4-000

Unavailable

4

JOINT, YOKE This part replaces 40210-HC4-000.

40210-HN7-010

$52.88

4

JOINT, YOKE This part replaces 40210-HM5-730.

40210-HN7-010

$52.88

4

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$52.88

4

JOINT, YOKE

40210-HN7-010

$52.88

5

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.50

6

RING, STOPPER (NOT AVAILABLE)

40218-HC4-000

Unavailable

7

O-RING (62.4X2.5) (ARAI) This part replaces 41123-516-000.

91304-MF5-003

$5.88

7

O-RING (62.4X2.5) (ARAI)

91304-MF5-003

$5.88

8

GUARD, PANEL This part replaces 43430-HC4-000.

43430-HM5-730

Unavailable

8

GUARD, PANEL

43430-HM5-730

Unavailable

9

RUBBER B, STOPPER

50354-428-000

$2.62

10

HITCH, TRAILER (SOURCE: VINTAGE PARTS INC.)

50810-HC4-000

Unavailable

11

BRACKET, TRAILER HITCH (UPPER)

50812-HC4-000

Unavailable

12

SWINGARM ASSY., RR. This part replaces 52100-HC4-000.

52100-HM5-A80

Unavailable

12

SWINGARM ASSY., RR.

52100-HM5-A80

Unavailable

13

BOOT, JOINT

52101-HC4-000

Unavailable

15

HOLDER, SWINGARM GREASE

52112-MA1-300

$6.56

16

HOUSING, RR. AXLE (NOT AVAILABLE)

52130-HC4-000

Unavailable

17

LABEL, TRAILER HITCH (NOT AVAILABLE)

87508-HC4-670

Unavailable

18

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

19

BOLT A, PIVOT This part replaces 90121-HC4-000.

90121-HM5-930

$8.20

19

BOLT A, PIVOT

90121-HM5-930

$8.20

20

BOLT B, PIVOT This part replaces 90122-HC4-000.

90122-HM5-930

$9.45

20

BOLT B, PIVOT

90122-HM5-930

$9.45

21

CAP, LOCK NUT

90312-HA0-000

$10.53

22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

23

BEARING, ANGULAR (7203)

91066-HC4-004

$30.61

24

DUST SEAL (26X40X5)

91268-463-003

$6.16

25

O-RING (82X3)

91351-HC4-003

$5.07

26

SCREW, PAN (4X25)

93500-04025-0G

$0.59

27

BOLT, FLANGE (10X16) (NOT AVAILABLE)

90116-HC4-003

Unavailable

28

BOLT, FLANGE (10X25)

95701-10025-07

$1.29

29

BOLT, FLANGE (8X14)

95701-08014-07

$0.91
