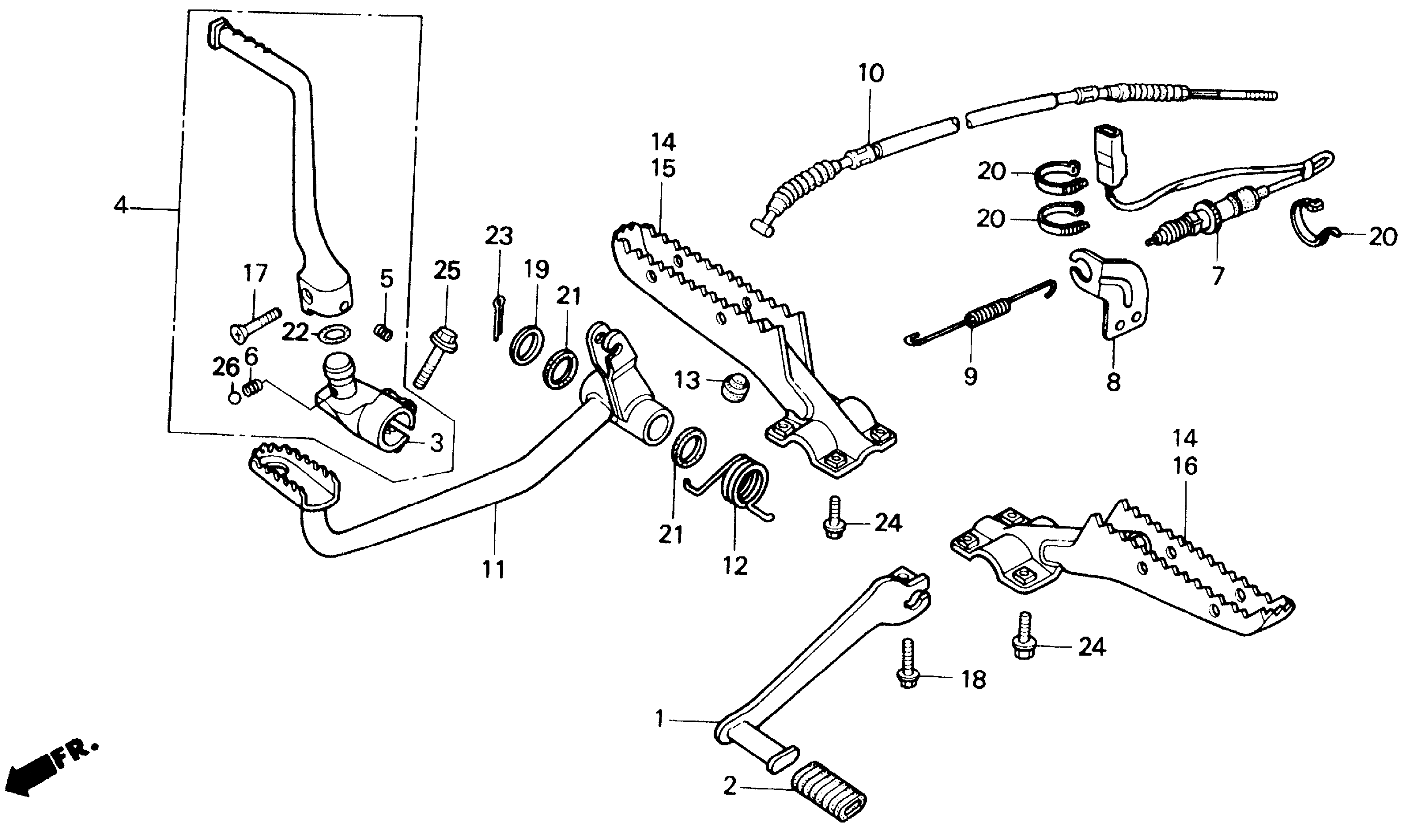

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 STEP Diagram

PEDAL, GEARSHIFT This part replaces 24700-HC4-670.

24700-HM5-850

$65.77

PEDAL, GEARSHIFT This part replaces 24700-HC4-840.

24700-HM5-850

$65.77

PEDAL, GEARSHIFT

24700-HM5-850

$65.77

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

JOINT, KICK ARM This part replaces 28241-HA8-681.

28241-HA6-680

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-HC4-750

Unavailable

PLUG, KICK ARM

28302-965-000

$2.59

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

CABLE, FOOT BRAKE

43470-HC4-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-HC4-750

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-HC4-000

Unavailable

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

BAR, R. STEP (SOURCE: VINTAGE PARTS INC.)

50610-HC4-670

Unavailable

BAR, L. STEP (SOURCE: VINTAGE PARTS INC.)

50620-HC4-670

Unavailable

SCREW, OVAL (6X28) (NOT AVAILABLE)

90101-HC4-000

Unavailable

BOLT, FLANGE (6X20)

90118-968-000

$4.24

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

O-RING (13.5X1.5) (ARAI)

91353-671-003

$2.73

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X28)

95701-08028-07

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
