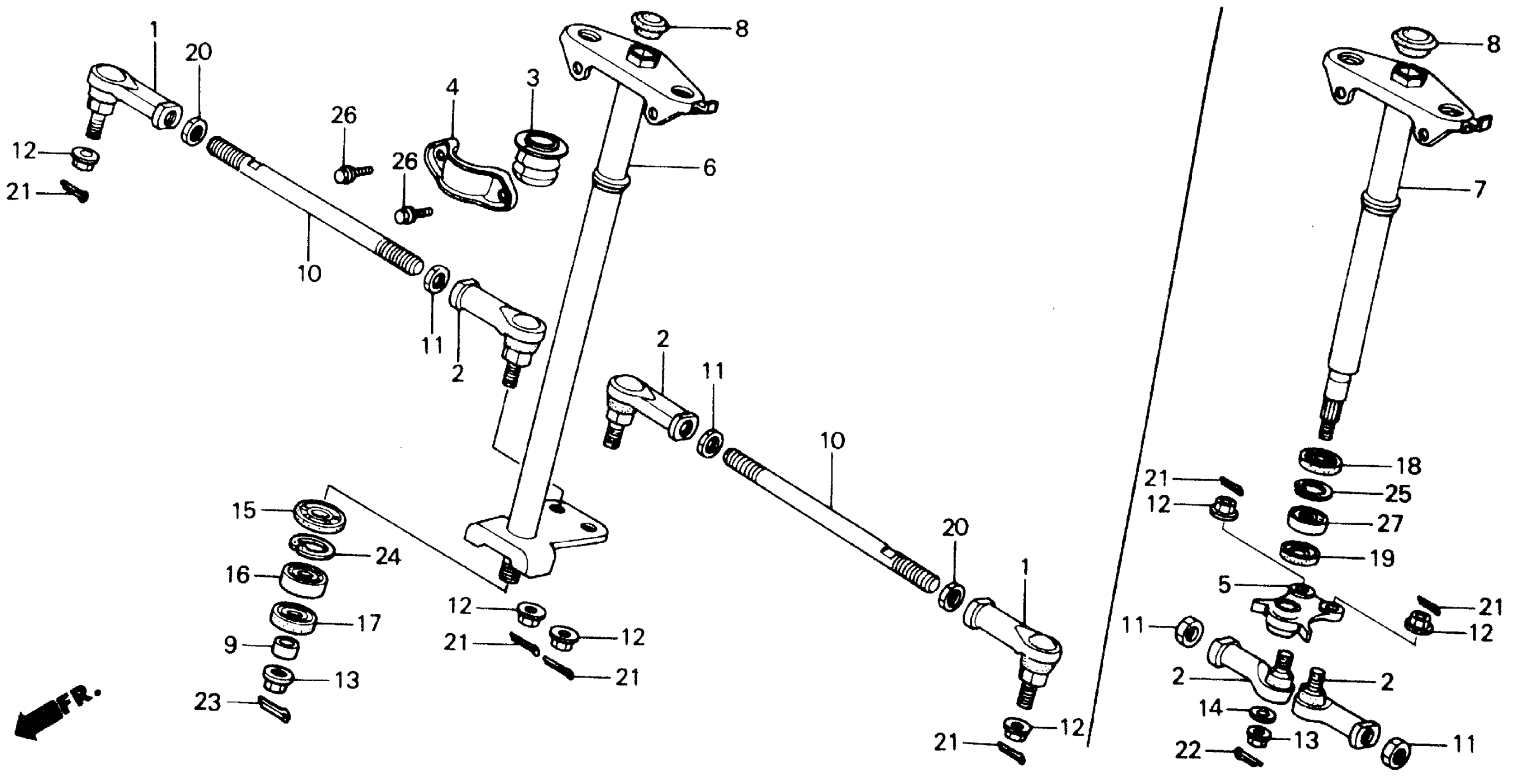

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 STEERING SHAFT Diagram

#

Description
Price

1

END, R. TIE ROD (RIGHT HAND THREAD) This part replaces 53157-HC4-003.

53157-HP0-A01

$11.90

1

END, R. TIE ROD (RIGHT HAND THREAD) This part replaces 53157-HM5-A11.

53157-HP0-A01

$11.90

1

END, R. TIE ROD (RIGHT HAND THREAD)

53157-HP0-A01

$11.90

1

END, R. TIE ROD (RIGHT HAND THREAD)

53157-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HC4-003.

53158-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HM5-A11.

53158-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HP0-A01.

53158-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD)

53158-HP5-003

$11.90

3

BUSH, STEERING

53221-HC4-004

$31.45

4

HOLDER, STEERING SHAFT

53223-HC4-000

$18.51

6

SHAFT, STEERING (NOT AVAILABLE)

53310-HC4-000

Unavailable

8

CAP, STEERING SHAFT (NOT AVAILABLE)

53314-HC4-000

Unavailable

9

COLLAR, STEERING SHAFT

53317-HC4-000

Unavailable

10

TIE ROD (SOURCE: VINTAGE PARTS INC.)

53521-HC4-750

Unavailable

11

NUT, TIE ROD LOCK (LEFT HAND THREAD)

53526-679-000

$3.10

12

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

13

NUT, U (14MM)

90305-GE8-003

$3.86

15

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

15

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

16

BEARING, RADIAL BALL (6203)

91053-HB3-771

$22.50

17

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

20

NUT, HEX. (12MM)

94031-12280

$1.49

21

PIN, SPLIT (2.0X22)

94201-20220

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

21

PIN, SPLIT (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

23

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

23

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

23

PIN, SPLIT (3.0X45)

94201-30450

$1.49

24

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

26

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
