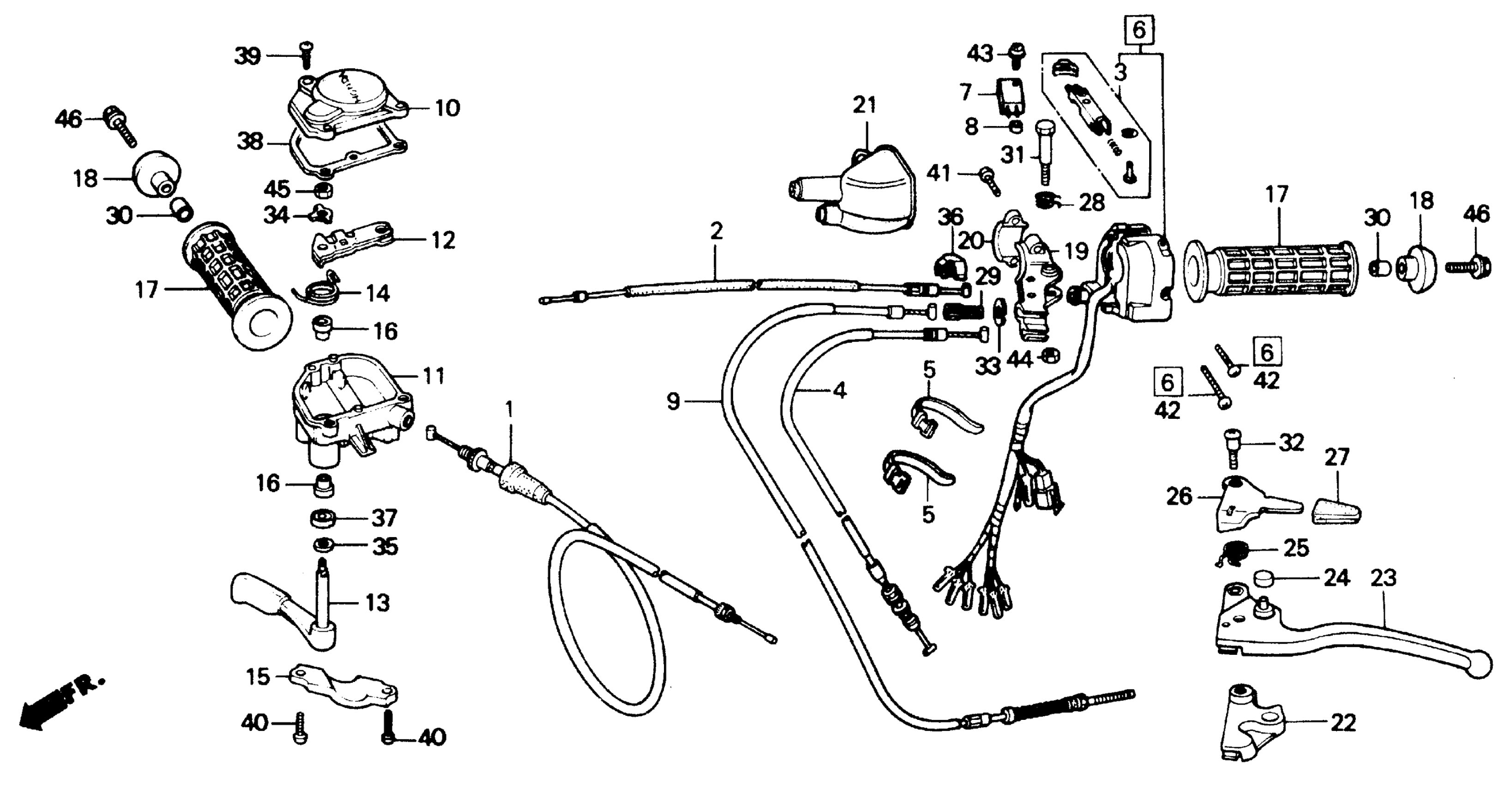

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 HANDLE SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-HC4-000

Unavailable

2

CABLE, CHOKE This part replaces 17950-HC4-670.

17950-HC4-671

$26.85

2

CABLE, CHOKE

17950-HC4-671

$26.85

3

LEVER, CHOKE

17010-HA0-305

$18.16

3

LEVER, CHOKE This part replaces 17962-HA0-680.

17010-HA0-305

$18.16

4

CABLE, REVERSE ASSIST (NOT AVAILABLE)

22880-HC4-000

Unavailable

5

BAND B1, WIRE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING & ENGINE STARTER

04100-HC4-505

Unavailable

6

SWITCH ASSY., LIGHTING & ENGINE STARTER This part replaces 35200-HC4-004.

04100-HC4-505

Unavailable

9

CABLE, HAND BRAKE This part replaces 43460-HC4-000.

43460-HC4-010

$41.40

9

CABLE, HAND BRAKE

43460-HC4-010

$41.40

10

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

11

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

13

LEVER, THROTTLE

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

15

HOLDER, THROTTLE CASE

53147-HC3-000

$9.20

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-958-010

$13.38

18

GUARD, HANDLE END

53167-958-680

$6.40

19

BRACKET, BRAKE LEVER (NOT AVAILABLE)

53172-HA8-682

Unavailable

20

HOLDER, LEVER BRACKET

53173-376-000

$10.95

21

COVER, L. HANDLE LEVER

53177-HA0-680

$11.72

22

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

23

LEVER, RR. BRAKE

53180-HA8-770

$29.38

24

CAP, REVERSE PIN

53187-VM6-000

$3.89

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

26

LEVER, PARKING BRAKE LOCK

53192-HA8-771

$11.52

27

CAP, PARKING LEVER

53193-HA0-770

$6.16

29

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

30

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

31

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

31

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.56

32

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

33

NUT, FIXING

90321-315-670

$7.31

33

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

34

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

35

WASHER (9X20)

90504-HA0-000

$2.28

36

CLIP, CHOKE CABLE

90651-HA0-680

$4.33

37

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

37

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

38

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

39

SCREW, PAN (4X16)

93500-04016-0G

$1.49

40

SCREW, PAN (5X14)

93500-05014-0G

$3.67

41

SCREW, PAN (5X18)

93500-05018-0G

$1.49

42

SCREW, PAN (5X22)

93500-05022-0G

$1.49

44

NUT, HEX. (6MM)

94001-06070-0S

$1.49

45

NUT, HEX. (6MM)

94002-06000-0S

$1.49

46

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
