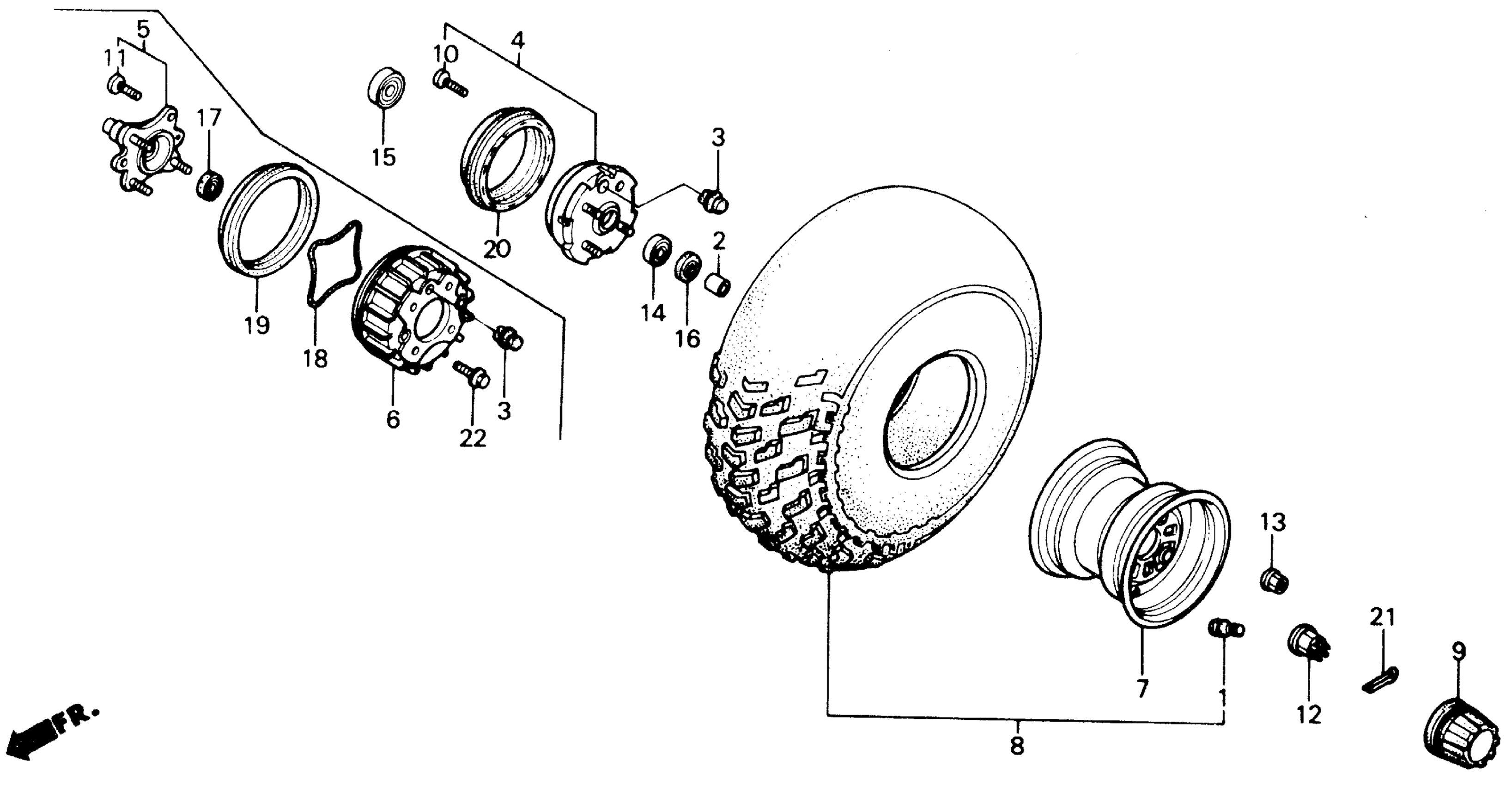

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM

42753-VM0-003

$9.25

2

COLLAR, FR. WHEEL SIDE

44312-HB3-000

$6.87

3

PLUG, ADJUSTING HOLE This part replaces 44602-HC4-000.

44602-HM5-A10

$3.71

3

PLUG, ADJUSTING HOLE

44602-HM5-A10

$3.71

4

HUB, FR. WHEEL (NOT AVAILABLE)

44610-HC4-000

Unavailable

7

RIM, FR. WHEEL (11X6.5AT) (NOT AVAILABLE)

44701-HC4-000

Unavailable

8

TIRE, WHEEL (AT23X8-11 AT504) (OHTSU) (NOT AVAILABLE) | (Optional).

44711-HC4-013

Unavailable

8

TIRE, WHEEL (AT23X8-11 AT504) (OHTSU) (NOT AVAILABLE) This part replaces 44710-HC4-013.

44711-HC4-013

Unavailable

9

CAP, WHEEL CENTER

44732-HC4-000

$20.95

10

BOLT, WHEEL (10X33)

90103-HA0-300

$7.34

12

NUT, AXLE (14MM)

90309-HC4-000

$13.83

13

NUT, WHEEL

90314-VM0-771

$5.88

14

BEARING, RADIAL BALL (6202) (OD 35MM)

91052-HC4-000

Unavailable

14

BEARING, RADIAL BALL (6202) (OD 35MM) This part replaces 91052-HC4-003.

91052-HC4-000

Unavailable

15

BEARING, RADIAL BALL (6004) (OD 42MM)

91053-HC4-000

$17.90

15

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$17.90

16

DUST SEAL (35X20X7) (ARAI)

91257-HB3-003

$7.89

20

DUST SEAL, FR. BRAKE

91751-HC4-003

$56.28

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

21

PIN, SPLIT (3.0X45)

94201-30450

$0.94
