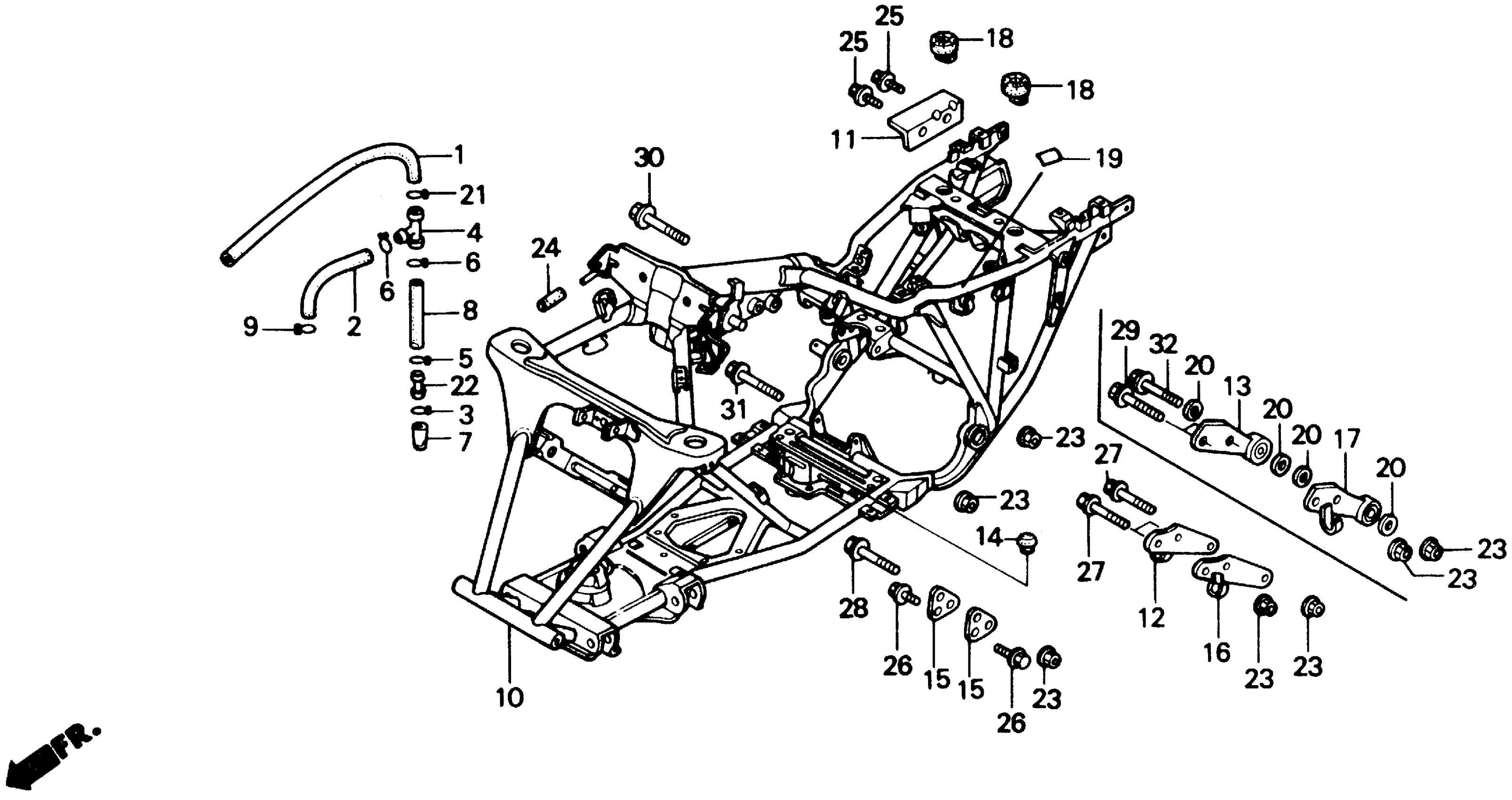

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 FRAME Diagram

#

Description
Price

1

TUBE, BREATHER (NOT AVAILABLE)

15761-HC4-000

Unavailable

2

TUBE, BREATHER (UPPER) (NOT AVAILABLE)

15762-HC4-000

Unavailable

3

CLIP, BREATHER TUBE

15772-292-010

$2.92

4

JOINT, BREATHER THREE WAY

15772-376-000

$19.49

5

CLIP, BREATHER TUBE

17316-HA0-000

$4.74

6

CLIP, BREATHER TUBE

17316-611-000

$9.23

7

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

7

TUBE, DRAIN

17358-HM8-000

$4.94

8

TUBE, BREATHER (LOWER) (NOT AVAILABLE)

15763-HC4-000

Unavailable

9

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

10

FRAME (SOURCE: VINTAGE PARTS INC.) This part replaces 50100-HC4-671.

50100-HC4-900

$1,438.48

10

FRAME (SOURCE: VINTAGE PARTS INC.)

50100-HC4-900

$1,438.48

11

PROTECTOR, HEAT (NOT AVAILABLE)

50310-HC4-000

Unavailable

12

HANGER, R. ENGINE (UPPER) (NOT AVAILABLE)

50351-HC4-000

Unavailable

14

RUBBER B, STOPPER

50354-428-000

$2.75

15

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50356-HC4-000

Unavailable

16

HANGER, L. ENGINE (UPPER) (NOT AVAILABLE)

50361-HC4-000

Unavailable

18

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

21

CLIP, BREATHER TUBE

15772-551-000

$2.05

22

JOINT, TUBE

91463-393-780

$1.80

23

NUT, FLANGE (10MM)

94050-10000

$1.59

25

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

26

BOLT, FLANGE (10X16)

95701-10016-00

$1.49

27

BOLT, FLANGE (10X70)

95701-10070-00

$2.09

28

BOLT, FLANGE (10X80)

95701-10080-00

$2.92

30

BOLT, FLANGE (10X100)

95701-10100-00

$2.68

31

BOLT, FLANGE (10X110) (NOT AVAILABLE)

95701-10110-00

Unavailable
