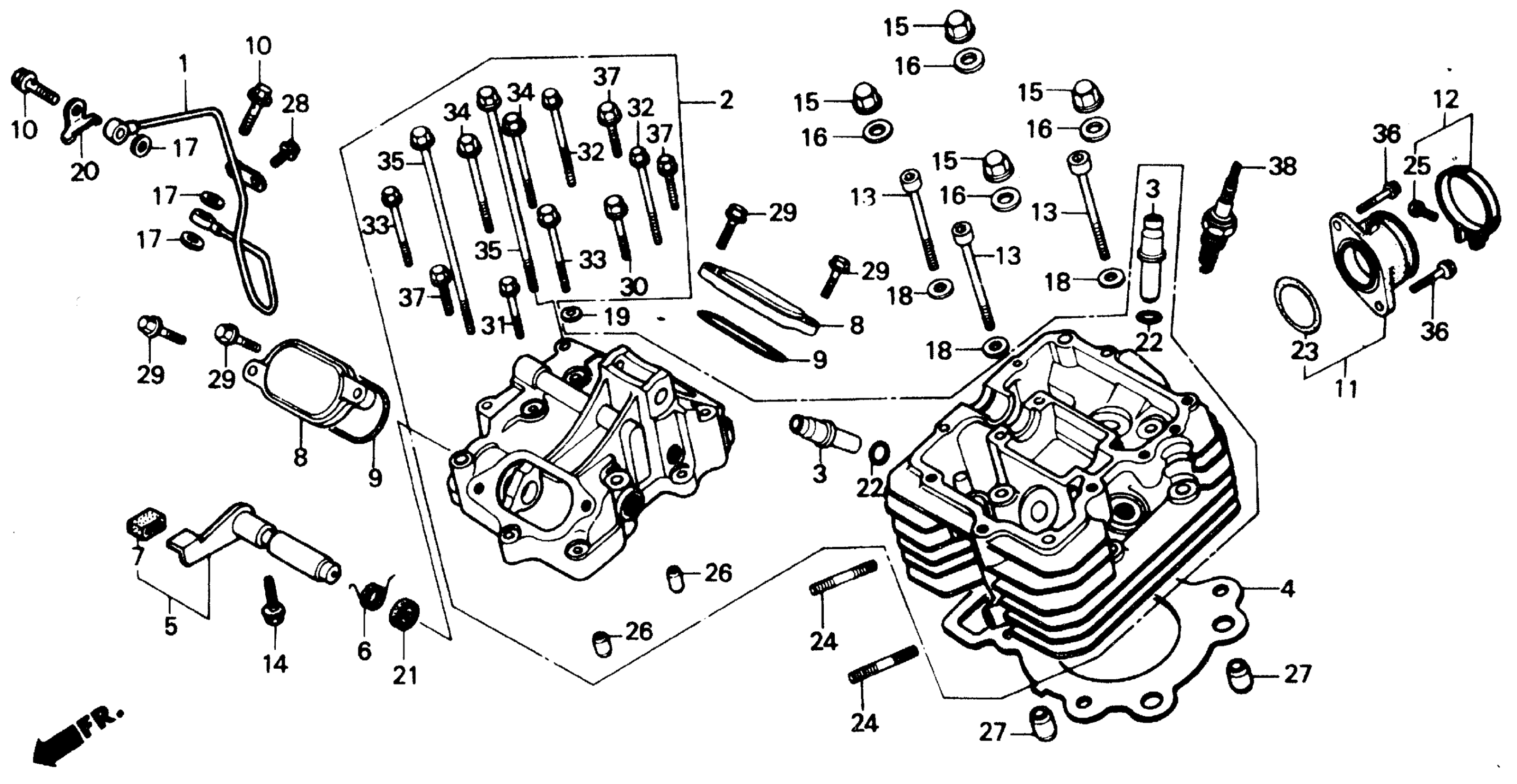

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE This part replaces 11335-HA0-000.

11335-HA0-003

Unavailable

2

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12000-HC4-000

Unavailable

3

GUIDE, VALVE (O.S)

12232-HA0-305

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-HA0-003.

12251-HA0-004

$30.12

4

GASKET, CYLINDER HEAD

12251-HA0-004

$30.12

4

GASKET, CYLINDER HEAD (FOR 0.50-1.00 O.S. PISTON) | (Optional).

12252-HA0-305

Unavailable

4

GASKET, CYLINDER HEAD (OS 0.50-1.00) | (Optional). This part replaces 12252-HA0-306.

12252-HA0-305

Unavailable

5

LIFTER, VALVE (NOT AVAILABLE)

12320-HC4-000

Unavailable

6

SPRING, VALVE LIFTER (NOT AVAILABLE)

12321-HC4-000

Unavailable

7

COVER, LEVER (NOT AVAILABLE)

12323-HB3-000

Unavailable

8

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$34.49

9

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

10

BOLT, FLANGE (7X23) This part replaces 15533-HA0-000.

15533-KL8-730

Unavailable

11

INSULATOR, CARBURETOR (KOYO) (NOT AVAILABLE)

16211-HC4-003

Unavailable

12

BAND, INSULATOR

16219-HC4-000

$10.56

13

BOLT, SOCKET (8X88)

90064-HA0-000

Unavailable

14

BOLT, FLANGE (6X17)

90081-HC4-000

Unavailable

15

NUT, CAP (10MM)

90201-HA0-000

$5.99

15

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

16

WASHER (10MM)

90410-HC4-000

$3.55

17

WASHER, SEALING (7MM)

90441-MC0-000

Unavailable

18

WASHER, SEALING (8MM)

90441-469-000

$4.92

19

WASHER, SEALING (6MM)

90441-706-000

$1.06

20

WASHER, LOCK (7MM) (NOT AVAILABLE)

90443-HA0-771

Unavailable

21

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

22

O-RING (10X1.6)

91301-200-000

$2.80

23

O-RING (33.7X2.4)

91305-HA0-680

$7.77

24

BOLT, STUD (8X25)

92900-08025-0B

$2.00

25

SCREW, PAN (5X28)

93500-05028-0G

$0.62

26

PIN, DOWEL (8X12)

90701-HC4-000

$2.70

27

PIN, DOWEL (12X20)

94301-12200

$2.25

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

29

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

30

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

31

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

32

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

33

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

34

BOLT, FLANGE (6X70)

95701-06070-00

$2.09

35

BOLT, FLANGE (6X140)

95701-06140-00

$2.80

36

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

37

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

38

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

38

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25

38

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.00

38

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.25

38

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.00

38

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.25
