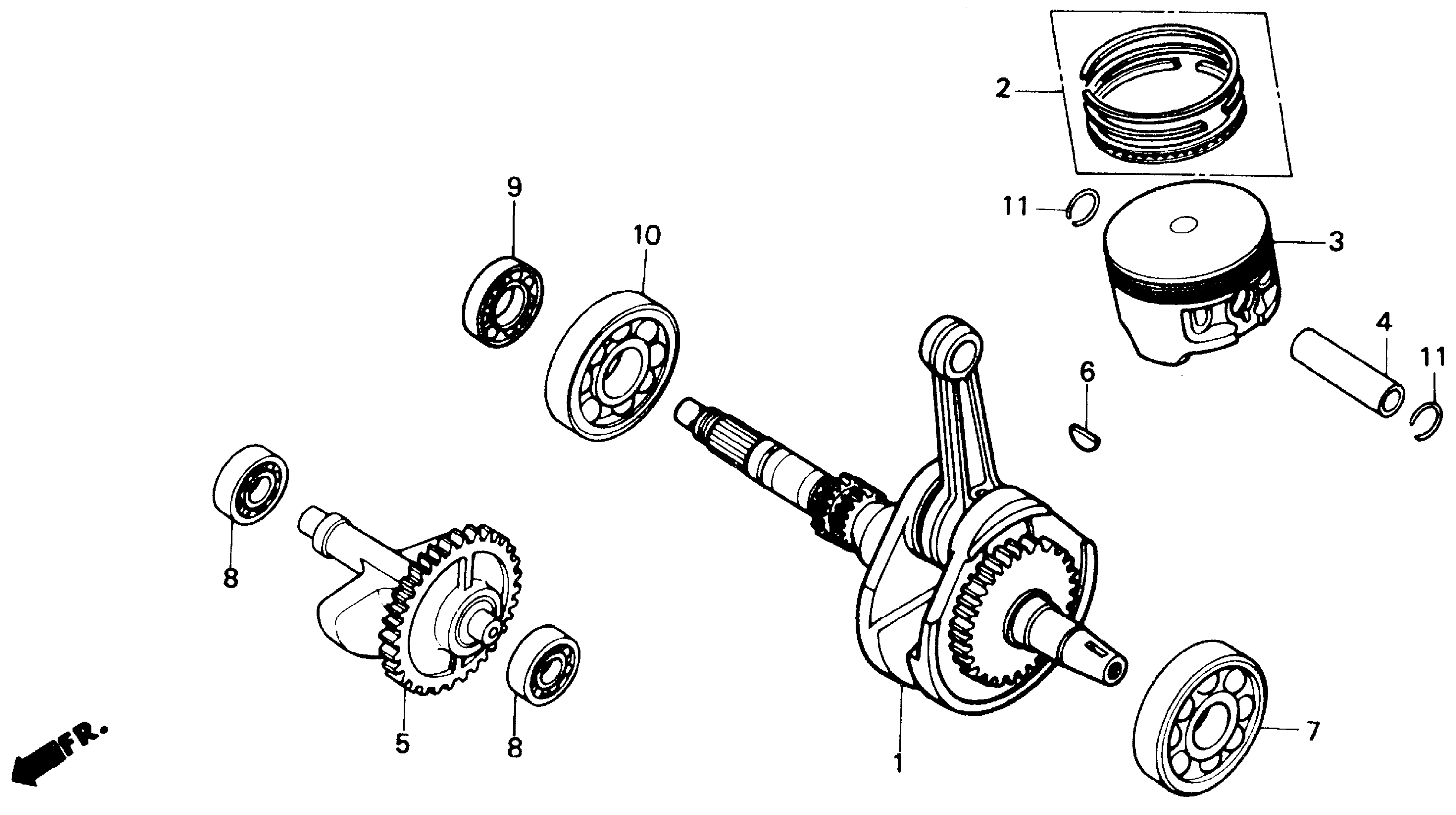

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 CRANKSHAFT Diagram

CRANKSHAFT (NOT AVAILABLE)

13000-HC4-000

Unavailable

RING SET, PISTON (STD) (TEIKOKU)

13011-HC4-306

$57.74

RING SET, PISTON (0.25) | (Optional).

13021-HC4-306

Unavailable

RING SET, PISTON (0.50) | (Optional).

13031-HC4-306

Unavailable

RING SET, PISTON (0.75) | (Optional).

13041-HC4-306

Unavailable

RING SET, PISTON (1.00) | (Optional).

13051-HC4-306

Unavailable

PISTON (STD) (NOT AVAILABLE)

13101-HC4-000

Unavailable

PISTON (0.25) | (Optional).

13102-HC4-305

Unavailable

PISTON (0.50) | (Optional).

13103-HC4-305

Unavailable

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-HC4-305

Unavailable

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-HC4-305

Unavailable

PIN, PISTON

13111-HC0-000

$27.81

SHAFT, BALANCER (34T)

13420-HC4-000

Unavailable

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

BEARING, RADIAL BALL

91001-KE5-018

Unavailable

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$39.30

BEARING, RADIAL BALL (40X76X17.5) (KOYO)

91010-HC4-004

Unavailable

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
