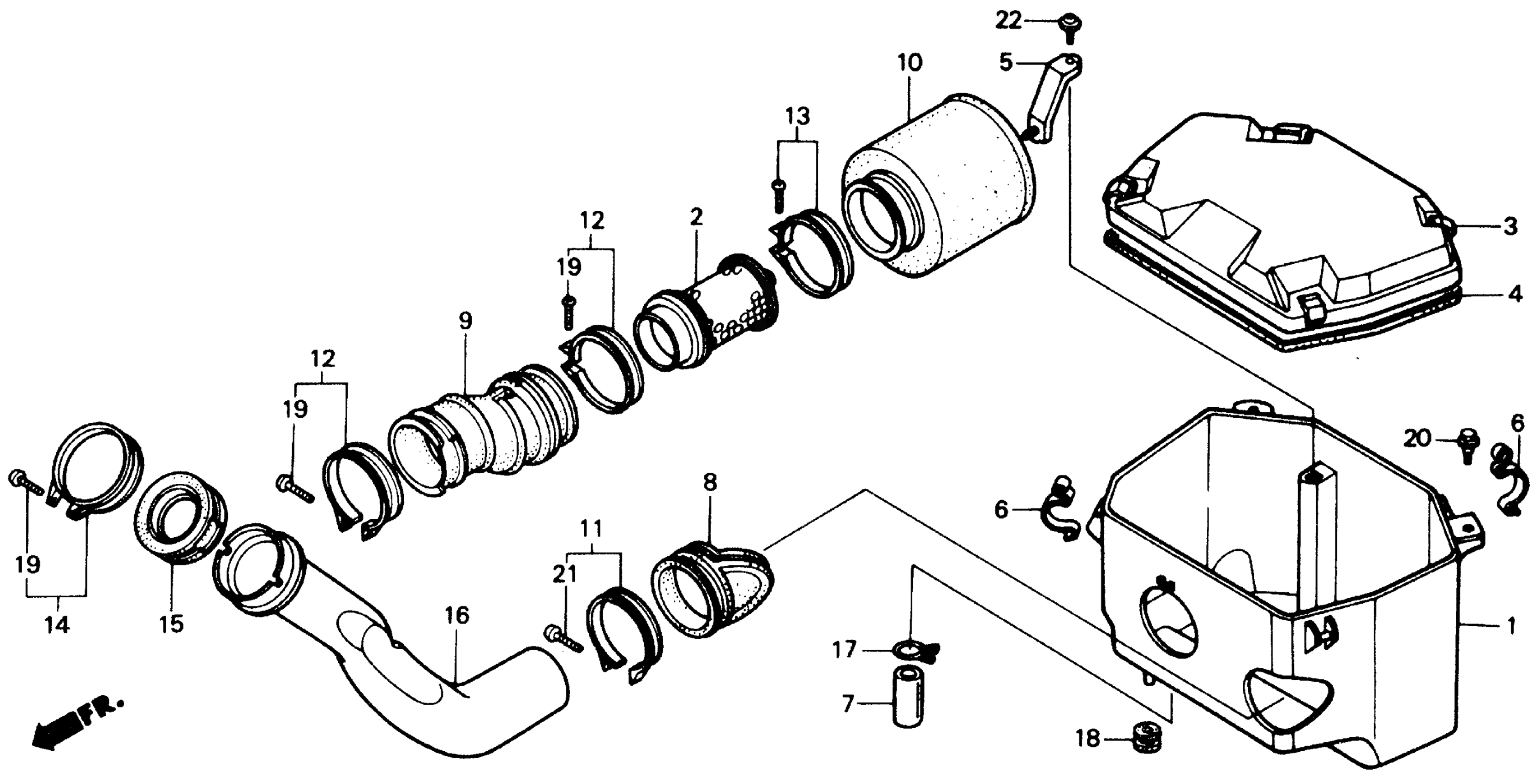

Honda TRX300A (91) FOURTRAX 300, USA, VIN# 478TE140-MA300001 TO 478TE140-MA307886 AIR CLEANER Diagram

#

Description
Price

1

AIR CLEANER HOUSING (SOURCE: VINTAGE PARTS INC.)

17210-HC4-000

Unavailable

2

BODY, AIR CLEANER (NOT AVAILABLE)

17211-HC4-000

Unavailable

3

COVER, AIR CLEANER HOUSING

17217-HC4-000

$38.82

4

SEAL, AIR CLEANER COVER This part replaces 17219-HA2-000.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-HC4-000.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-KN5-670.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-ZE3-840.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17221-MG2-000.

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.96

5

STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17221-HA6-000

Unavailable

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

7

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$10.85

7

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$10.85

8

SEAL B, AIR CLEANER DUCT

17252-HC4-000

$17.49

9

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-HC4-000

Unavailable

10

ELEMENT, AIR CLEANER This part replaces 17254-HC4-000.

17254-HC5-890

$26.85

10

ELEMENT, AIR CLEANER

17254-HC5-890

$26.85

11

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17255-GF5-770.

95018-52250

$5.14

11

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$5.14

11

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

12

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

12

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-680.

95018-60250

$6.25

12

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

13

BAND, AIR CLEANER

17257-HB5-000

$14.02

14

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17255-MN1-670.

95018-64250

$14.56

14

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 17257-HB9-000.

95018-64250

$14.56

14

BAND, AIR CLEANER CONNECTING TUBE (64) This part replaces 90652-GHB-750.

95018-64250

$14.56

14

BAND, AIR CLEANER CONNECTING TUBE (64)

95018-64250

$14.56

15

SEAL, AIR CLEANER DUCT (NOT AVAILABLE)

17258-HC4-000

Unavailable

16

DUCT, AIR CLEANER (NOT AVAILABLE)

17259-HC4-000

Unavailable

17

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

18

GROMMET, RESERVE TANK

19111-MF5-000

$2.88

19

SCREW, PAN (4X25)

90107-HA0-680

$2.52

20

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

21

SCREW, PAN (4X20)

93500-04020-0G

$1.49

22

SCREW-WASHER (6X12)

93891-06012-08

$1.49
