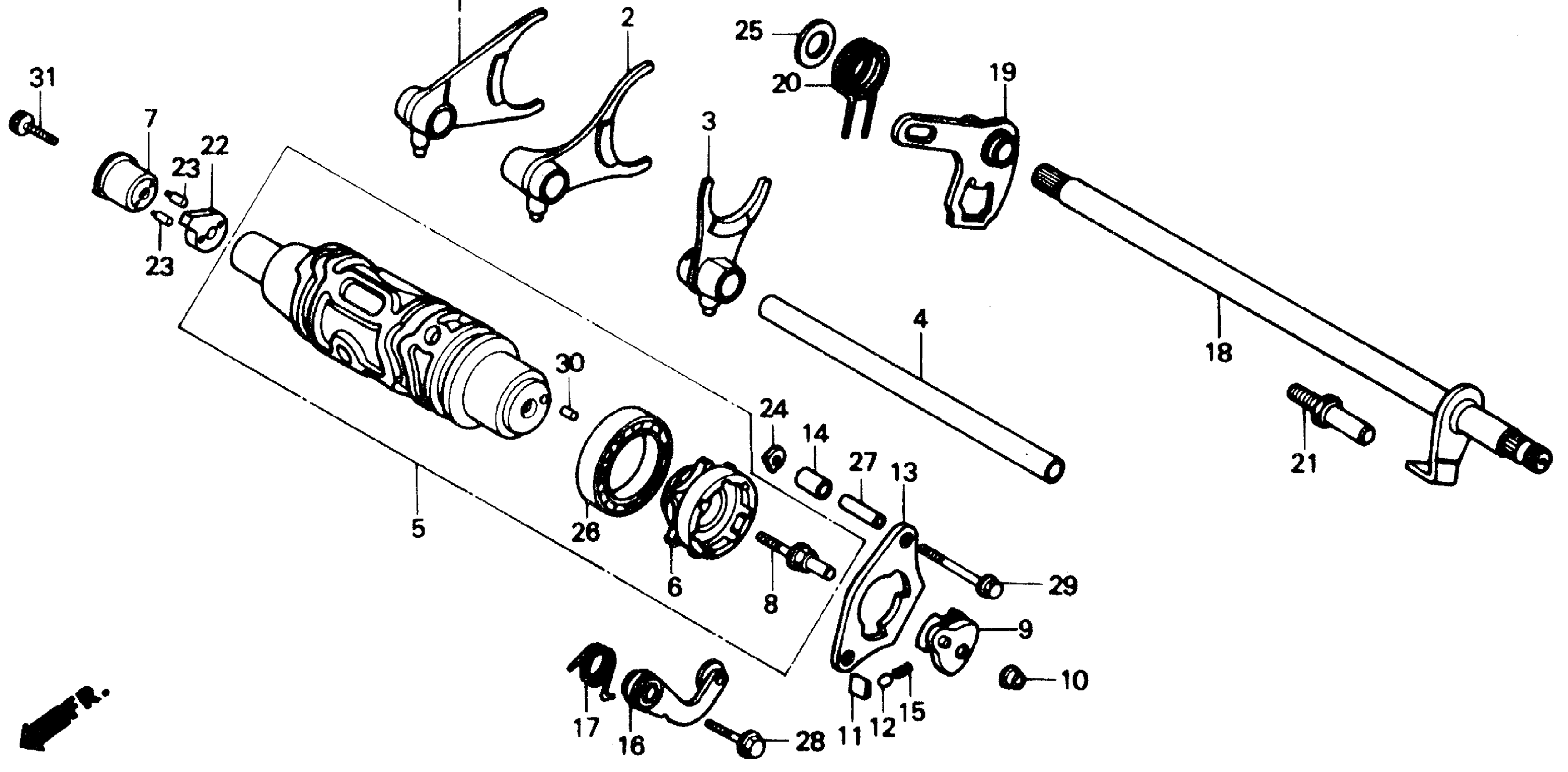

Honda TRX300A (88) FOURTRAX 300, JPN, VIN# JH3TE140-JK000018 TO JH3TE140-JK035147 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-HA0-010

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-HC4-000

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-HA0-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HA0-000.

24241-HM3-670

$35.30

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HM3-670

$35.30

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE)

24300-HA0-003

Unavailable

6

CENTER, SHIFT DRUM (NOT AVAILABLE)

24312-HA0-004

Unavailable

7

ROTOR, NEUTRAL SWITCH

24314-HA0-000

Unavailable

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM (NOT AVAILABLE)

24321-HA0-004

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL, RATCHET (NOT AVAILABLE)

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE (NOT AVAILABLE)

24328-HA0-000

Unavailable

14

COLLAR, GUIDE PLATE DISTANCE

24329-HA0-000

$5.81

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

17

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24436-HC0-000

Unavailable

18

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-HC4-000

Unavailable

19

ARM, GEARSHIFT This part replaces 24621-HA0-010.

24621-HA0-020

Unavailable

20

SPRING, GEARSHIFT RETURN

24651-HA0-000

Unavailable

21

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

22

CAM, REVERSE STOPPER (NOT AVAILABLE)

24862-HA0-000

Unavailable

23

PIN, REVERSE STOPPER CAM (NOT AVAILABLE)

24863-HA0-000

Unavailable

24

PLATE, BEARING HOLDER

90441-HA0-000

Unavailable

25

WASHER, THRUST (13MM)

90451-459-770

$2.48

26

BEARING (16005) (KOYO)

91051-719-003

$28.92

27

PIN, DOWEL (8X26.5)

91104-HA0-000

$4.74

28

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

29

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

30

ROLLER (4X8)

96220-40080

$1.49

31

BOLT, SOCKET (6X20)

96600-06020-00

$1.49

31

BOLT, SOCKET (6X20) This part replaces 96700-06020-00.

96600-06020-00

$1.49
