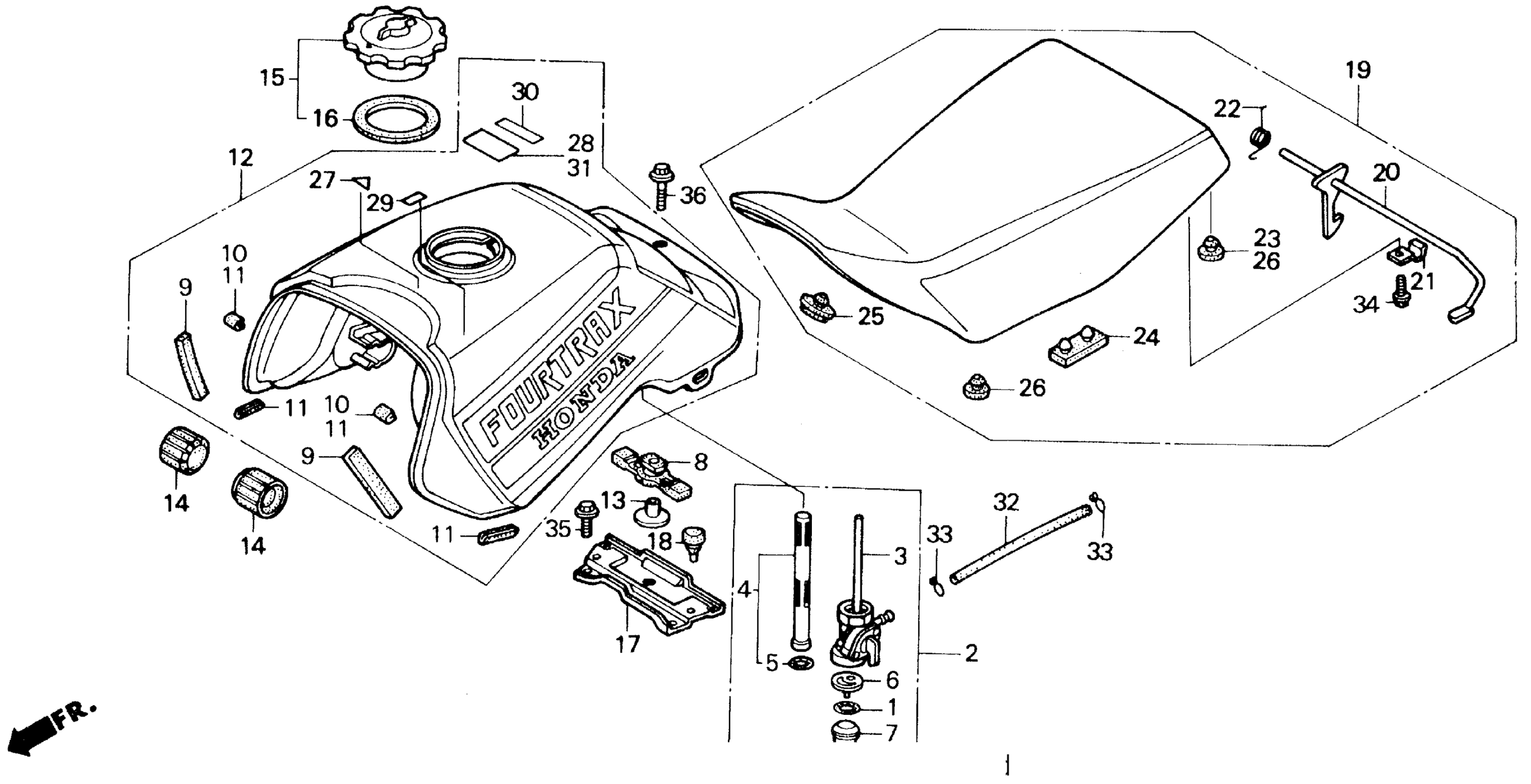

Honda TRX300A (88) FOURTRAX 300, JPN, VIN# JH3TE140-JK000018 TO JH3TE140-JK035147 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY. This part replaces 16950-HA8-005.

16950-MY6-791

$90.39

2

PETCOCK ASSY. This part replaces 16950-HC4-670.

16950-MY6-791

$90.39

2

PETCOCK ASSY. This part replaces 16950-MY6-670.

16950-MY6-791

$90.39

2

PETCOCK ASSY.

16950-MY6-791

$90.39

3

BODY, PETCOCK (NOT AVAILABLE)

16951-HA8-005

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-HA8-005

$48.23

5

O-RING

16075-GHB-720

$2.93

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

7

CUP, FUEL STRAINER

16967-MA2-771

$25.08

8

RUBBER, RR. FUEL TANK

17503-KG0-000

$20.54

9

RUBBER, TANK SPACER (NOT AVAILABLE)

17511-HC4-300

Unavailable

10

RUBBER B, TANK SPACER (NOT AVAILABLE) | Use from Frame SN JK010588

17512-HC4-300

Unavailable

11

TRIM, FUEL TANK | Use up to Frame SN JK010587

17516-HC4-000

$3.90

11

TRIM, FUEL TANK | Use from Frame SN JK010588

17516-HC4-000

$3.90

12

TANK ASSY., FUEL *R109* (WL) (PASSION RED) (NOT AVAILABLE)

17520-HC4-010ZA

Unavailable

13

COLLAR, FUEL TANK MOUNTING

17525-KC5-000

$6.72

14

CUSHION, FR. FUEL TANK (NOT AVAILABLE)

17611-HB6-000

Unavailable

15

FUEL FILL CAP (TOYOSHA)

17620-HC3-505

Unavailable

15

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

16

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

17

PLATE, FR. CROSS (NOT AVAILABLE)

50189-HC4-000

Unavailable

18

RUBBER B, STOPPER

50354-428-000

$2.75

19

SEAT (TYPE2) This part replaces 77100-HC4-000ZA.

77100-HM5-A10ZB

$251.88

19

SEAT (TYPE2) This part replaces 77100-HC4-670ZA.

77100-HM5-A10ZB

$251.88

19

SEAT (TYPE2) This part replaces 77100-HC4-900ZA.

77100-HM5-A10ZB

$251.88

19

SEAT (TYPE2) This part replaces 77100-HM5-930ZA.

77100-HM5-A10ZB

$251.88

20

LEVER, SEAT LOCK (NOT AVAILABLE)

77105-HC4-000

Unavailable

21

BRACKET, LOCK LEVER

77106-HB3-000

$3.89

22

SPRING, SEAT LOCK

77107-958-000

$4.30

23

RUBBER, SEAT CUSHION | Use from Frame SN JK022474

77201-074-000

$4.12

24

RUBBER, SEAT SETTING

77204-312-000

$5.05

25

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

26

RUBBER B, SEAT STOPPER | Use up to Frame SN JK022473

77215-GC2-000

$5.05

26

RUBBER B, SEAT STOPPER | Use from Frame SN JK022474

77215-GC2-000

$5.05

27

MARK, FUEL TANK CAP (TYPEW) (NOT AVAILABLE)

87501-HA0-830ZA

Unavailable

28

LABEL, USE WARNING (NOT AVAILABLE)

87504-HC4-000

Unavailable

29

LABEL, HELMET HOLDER

87511-323-670

$2.72

32

BULK HOSE, FUEL (7.5X8000) (7.3X180)

95001-75008-60M

$103.82

33

CLIP, TUBE (B12)

95002-02120

$2.00

34

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

35

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

36

BOLT, FLANGE (8X30)

95701-08030-08

$1.49
