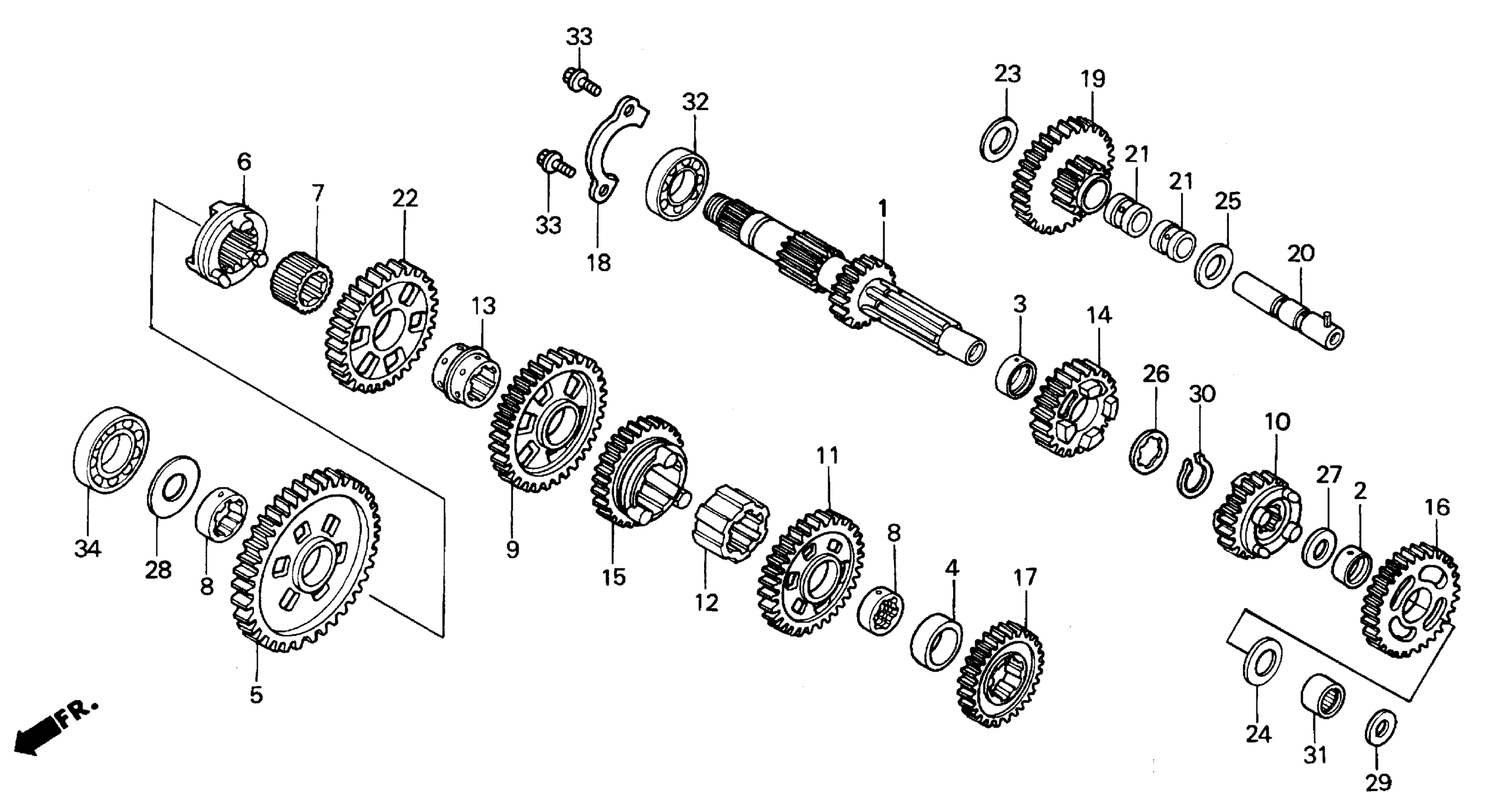

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T/18T)

23211-HN0-A11

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH A (22MM)

23214-HA0-000

$17.03

4

COLLAR, COUNTERSHAFT

23224-HC4-000

Unavailable

5

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HC4-000.

23411-HN0-670

Unavailable

5

GEAR, COUNTERSHAFT FIRST (49T)

23411-HN0-670

Unavailable

6

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HA7-670

Unavailable

7

COLLAR, SPLINE

23413-HA7-670

Unavailable

8

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

9

GEAR, COUNTERSHAFT SECOND (43T) This part replaces 23431-HC4-000.

23431-HN0-670

Unavailable

9

GEAR, COUNTERSHAFT SECOND (43T)

23431-HN0-670

Unavailable

10

GEAR, MAINSHAFT THIRD (23T)

23441-HN0-A20

Unavailable

11

GEAR, COUNTERSHAFT THIRD (37T)

23451-HC4-000

Unavailable

12

COLLAR, COUNTERSHAFT FOURTH SPLINE

23453-HC4-000

$32.64

13

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

14

GEAR, MAINSHAFT FOURTH (28T)

23461-HC4-000

Unavailable

15

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HC4-000

Unavailable

16

GEAR, MAINSHAFT FIFTH (33T)

23481-HC4-000

$89.36

17

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HC4-000

Unavailable

18

PLATE, BEARING SETTING

23521-HC4-000

Unavailable

19

GEAR, REVERSE IDLE (21T/34T)

23721-HA8-000

Unavailable

20

SHAFT, REVERSE IDLE

23730-HC4-000

Unavailable

21

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

22

GEAR, COUNTERSHAFT REVERSE (40T)

23751-HC4-000

Unavailable

23

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

24

WASHER, THRUST (17MM)

90403-HA0-000

$6.51

25

WASHER, PLAIN (14MM)

90412-HA0-000

$9.34

26

WASHER, SPLINE (22MM)

90451-KY1-000

$4.20

27

WASHER, THRUST (17MM) This part replaces 90452-HC4-000.

90452-178-000

$4.17

27

WASHER, THRUST (17MM)

90452-178-000

$4.17

28

WASHER, THRUST (20MM)

90454-HA0-000

Unavailable

29

WASHER (14MM)

90509-169-000

Unavailable

30

CIRCLIP (22MM)

90601-329-000

$2.67

31

BEARING, NEEDLE (17MM)

91001-HA0-004

Unavailable

32

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

32

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

32

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

33

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
