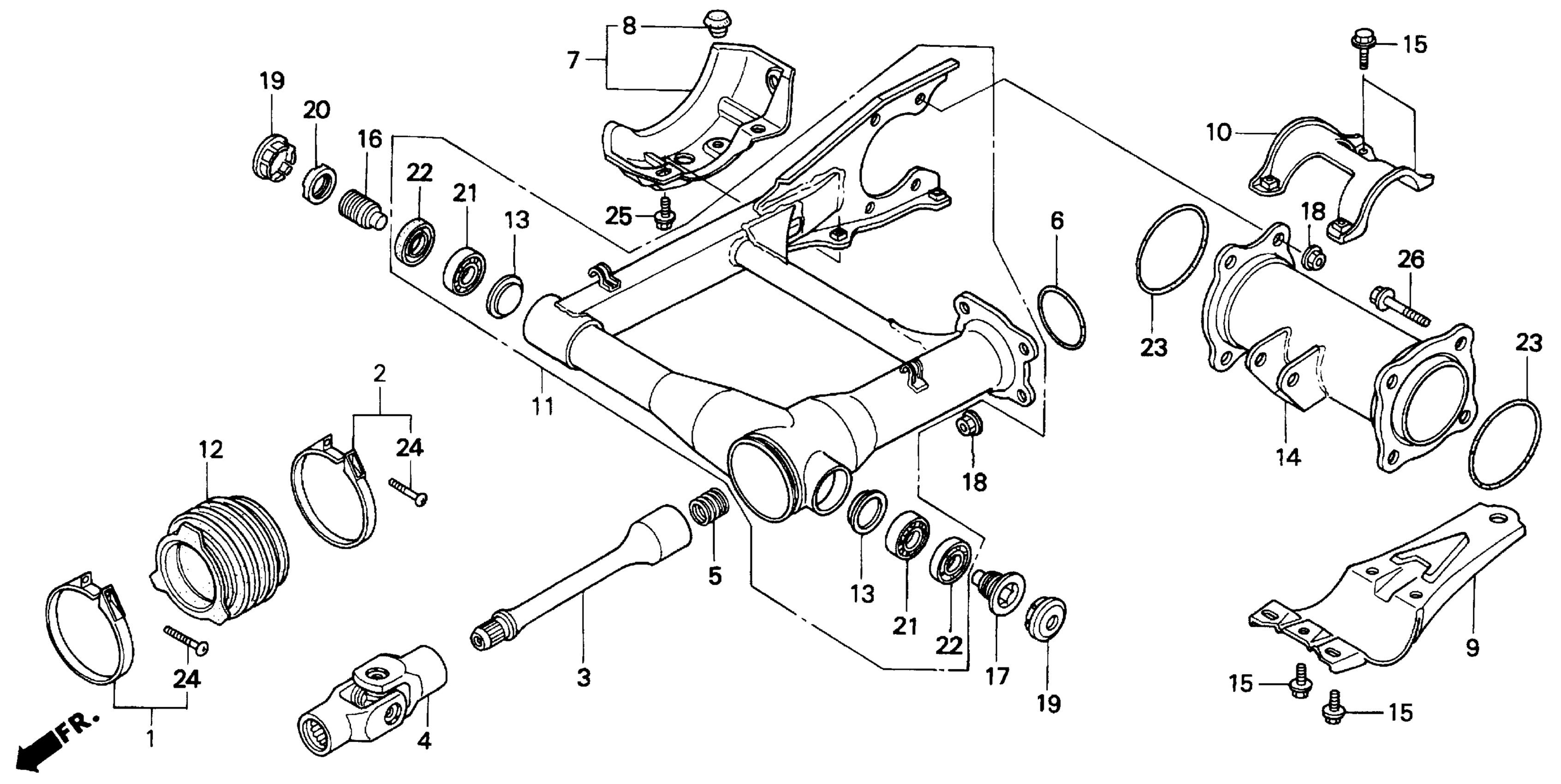

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 SWINGARM Diagram

BAND, BOOT JOINT

17255-HC4-000

$11.97

BAND, BOOT JOINT

17256-HC4-000

$13.99

SHAFT, PROPELLER

40201-HM5-850

$296.57

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$60.66

JOINT, YOKE

40210-HN7-010

$60.66

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

O-RING (62.4X2.5) (ARAI) This part replaces 41123-516-000.

91304-MF5-003

$6.31

GUARD, PANEL

43430-HM5-730

$117.65

RUBBER B, STOPPER

50354-HM5-730

$14.60

HITCH, TRAILER

50810-HC4-000

Unavailable

BRACKET, TRAILER HITCH (UPPER)

50812-HC4-000

Unavailable

SWINGARM ASSY., RR.

52100-HM5-A80

Unavailable

BOOT, JOINT

52101-HM5-930

$29.35

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

HOUSING, RR. AXLE

52130-HM5-730

Unavailable

BOLT, FLANGE (10X16)

90116-HC4-003

Unavailable

BOLT A, PIVOT

90121-HM5-930

$9.41

BOLT B, PIVOT

90122-HM5-930

$10.85

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

CAP, LOCK NUT

90312-HM5-670

$11.71

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

BEARING, ANGULAR (7203)

91066-HC4-004

$35.11

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.71

O-RING (82X3)

91351-HC4-003

$5.46

SCREW, PAN (4X25)

93500-04025-0G

$1.49

BOLT, FLANGE (8X14)

95701-08014-07

$1.49

BOLT, FLANGE (10X25)

95701-10025-07

$1.49
