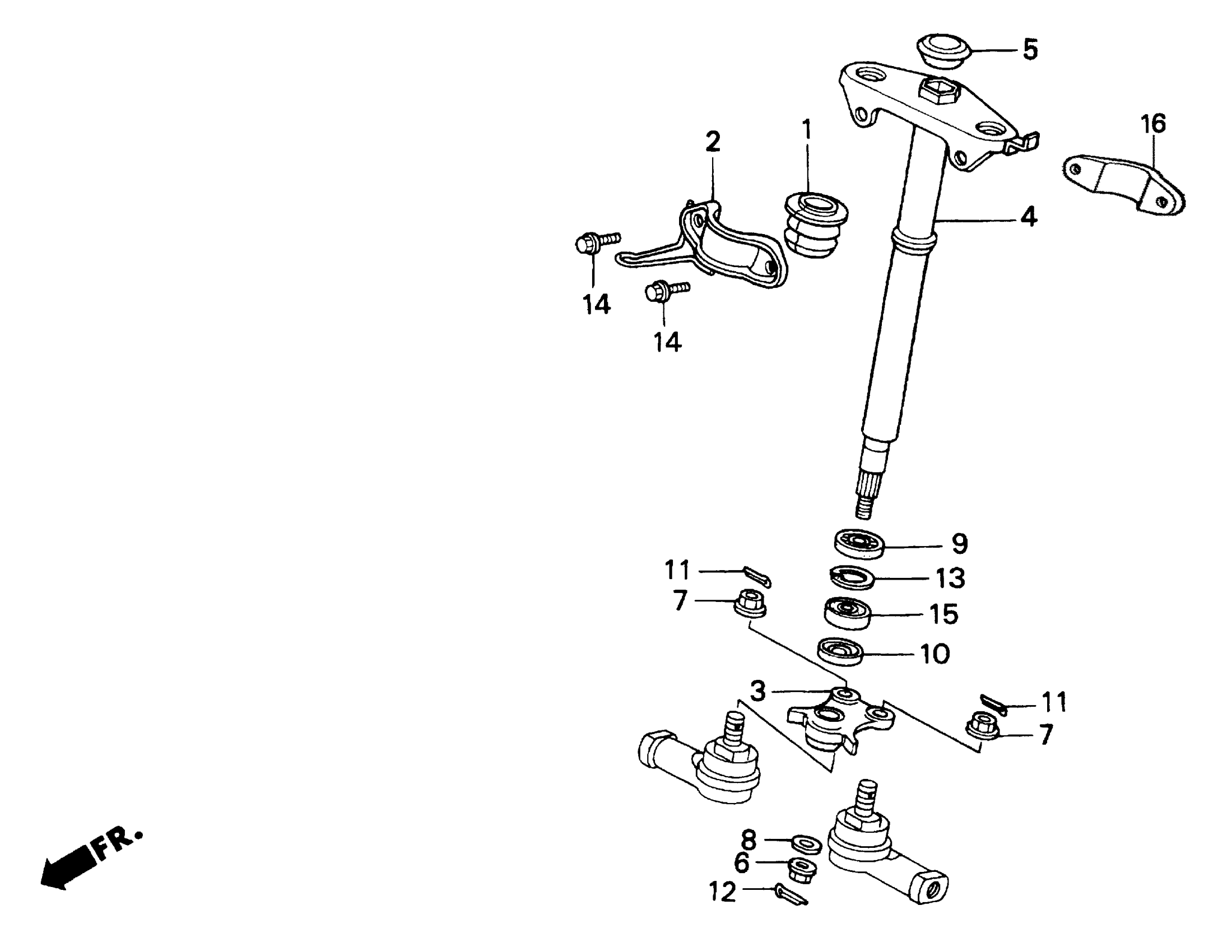

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 STEERING SHAFT Diagram

#

Description
Price

1

BUSH, STEERING

53221-HC4-004

$31.45

2

HOLDER A, STEERING SHAFT

53224-HC5-970

Unavailable

3

ARM, STEERING

53235-HM4-930

Unavailable

4

SHAFT, STEERING

53310-HM4-850

Unavailable

5

CAP, STEERING SHAFT

53314-HC4-000

Unavailable

6

NUT, U (14MM)

90305-GE8-003

$3.86

7

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

8

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

9

OIL SEAL (25X42X7) (ARAI)

91205-950-003

$9.80

10

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

11

PIN, SPLIT (2.0X22)

94201-20220

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

11

PIN, SPLIT (2.0X35)

94201-20350

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

12

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

12

PIN, SPLIT (3.0X45)

94201-30450

$1.49

13

CIRCLIP (INNER) (42MM)

94520-42000

$2.16

14

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

15

BEARING, RADIAL BALL (6004UU)

96150-60041-10

$23.60

16

HOLDER, STEERING SHAFT

53223-HC4-000

$18.51
