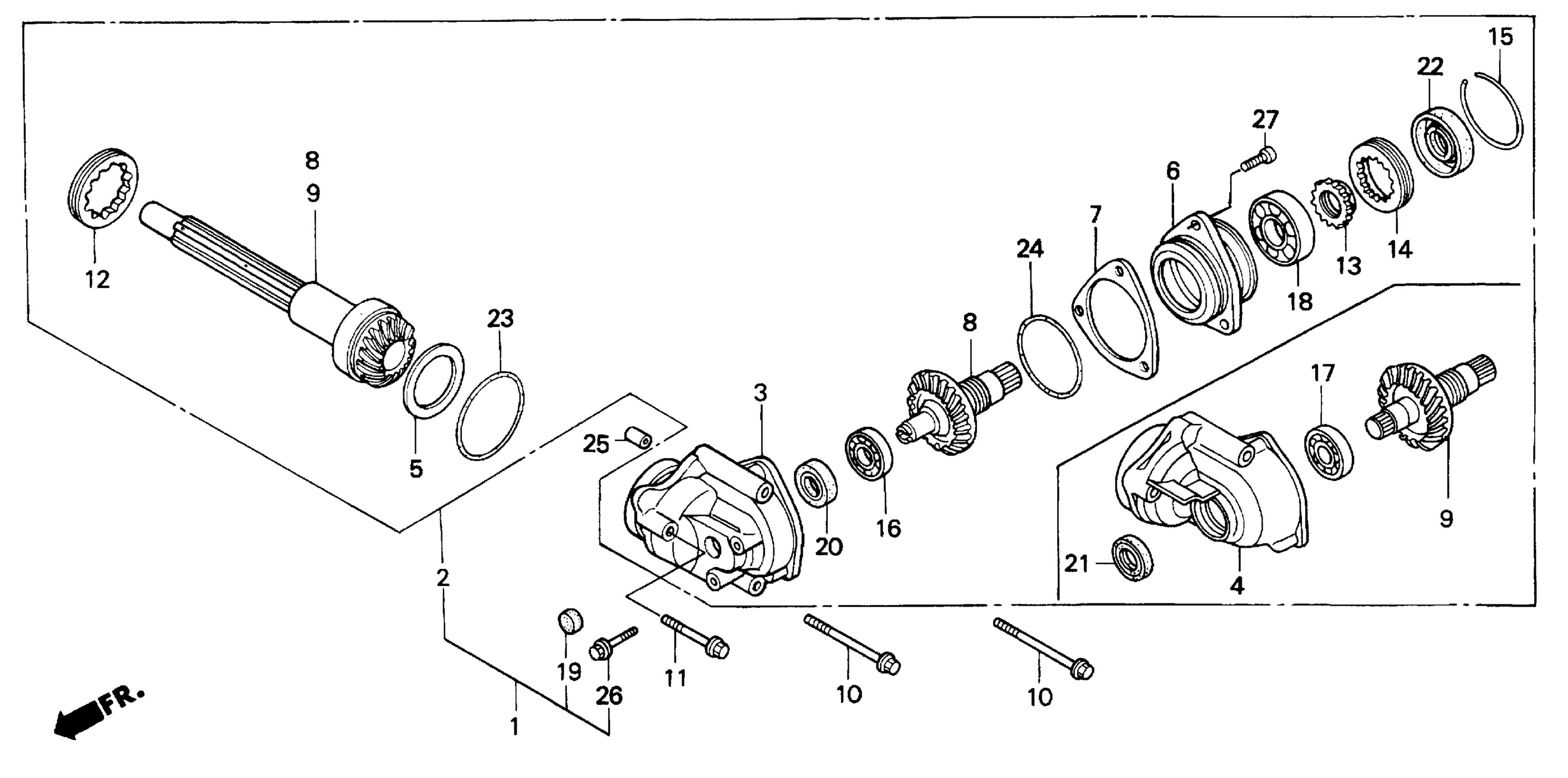

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 SIDE GEAR CASE Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-HC4-000

Unavailable

3

CASE, SIDE GEAR

21200-HC4-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.80)

21331-MF5-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.85)

21332-MF5-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.90)

21333-MF5-000

$13.66

5

SHIM, FINAL DRIVESHAFT (0.95)

21334-MF5-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (1.00)

21335-MF5-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (1.05)

21336-MF5-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (1.10)

21337-MF5-000

Unavailable

6

HOLDER, CROSS BEARING

21371-HC4-000

Unavailable

7

SHIM, CROSS SHAFT (0.20)

21381-HA0-000

$12.69

7

SHIM, CROSS SHAFT (0.25)

21382-HA0-000

Unavailable

7

SHIM, CROSS SHAFT (0.30)

21383-HA0-000

Unavailable

7

SHIM, CROSS SHAFT (0.35)

21384-HA0-000

Unavailable

7

SHIM, CROSS SHAFT (0.40)

21385-HA0-000

Unavailable

7

SHIM, CROSS SHAFT (0.45)

21386-HA0-000

Unavailable

7

SHIM, CROSS SHAFT (0.50)

21387-HA0-000

Unavailable

8

SHAFT SET, CROSS

23200-HC4-305

Unavailable

10

BOLT, UBS (8X100)

90004-HC4-000

Unavailable

11

BOLT, UBS (8X45)

90065-HA8-680

$7.10

12

NUT, LOCK (64MM)

90242-MB0-000

$32.52

13

NUT, LOCK (28MM)

90243-ME5-000

Unavailable

14

NUT, LOCK (60MM)

90244-MF5-000

Unavailable

15

CLIP, OIL SEAL

90601-HA0-000

$6.41

16

BEARING, RADIAL BALL SPECIAL (6302)

91004-HA0-004

Unavailable

18

BEARING, RADIAL BALL (62/28) (NTN)

91015-HC4-003

$19.20

19

COVER, SEAL (20X4) COVER, SEAL (20X4) (KOYO)

91201-HA8-682

$4.43

19

COVER, SEAL (20X4) (KOYO)

91206-HC4-005

Unavailable

20

OIL SEAL (15X34X7) (ARAI) OIL SEAL (15X34X7) (KOYO)

91201-HC4-003

Unavailable

20

OIL SEAL (15X34X7) (ARAI) This part replaces 91201-HC4-005.

91201-HC4-003

Unavailable

22

OIL SEAL (25X61X8.5) (KOYO)

91205-HM7-003

$16.77

22

OIL SEAL (25X61X8.5) (ARAI)

91205-ME5-003

Unavailable

23

O-RING (72X1.9)

91305-MF5-003

$8.85

24

O-RING (70X3.0)

91362-461-000

$6.93

25

PIN, DOWEL (10X16)

94303-10160

$2.34

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

27

BOLT, SOCKET (8X22)

96600-08022-10

$3.00
