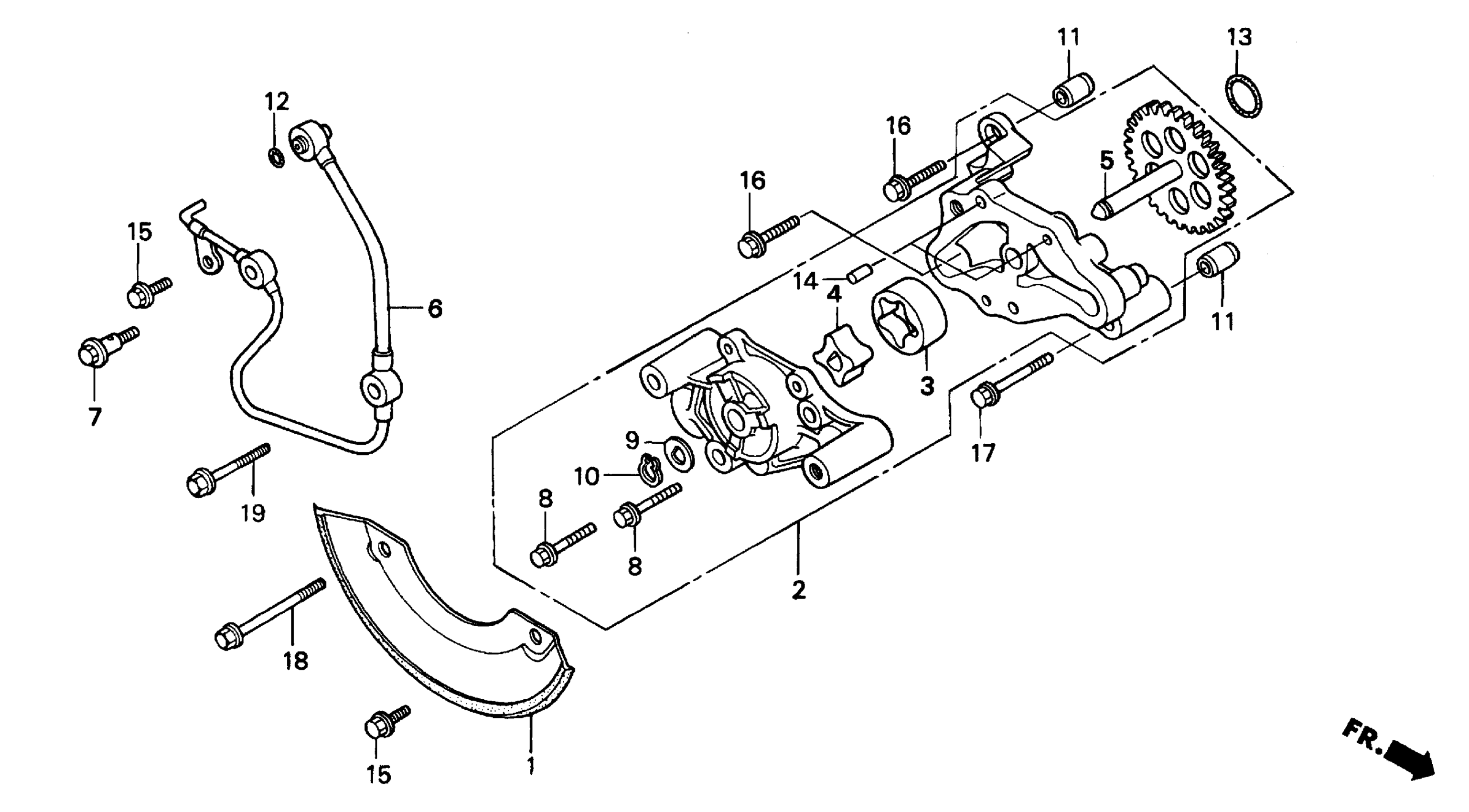

Honda TRX300A (00) FOURTRAX, USA, VIN# 478TE140-YA100001 OIL PUMP Diagram

#

Description
Price

1

PLATE, OIL SEPARATE (KOYO) (NOT AVAILABLE)

11140-HC4-005

Unavailable

2

PUMP ASSY., OIL

15100-HM5-670

Unavailable

3

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$27.48

4

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$21.29

5

GEAR, OIL PUMP DRIVEN (30T)

15140-HA0-010

Unavailable

6

PIPE, OIL

15510-HA7-670

Unavailable

7

BOLT, FLANGE (7X18.5)

15532-HA0-000

Unavailable

8

BOLT, FLANGE (5X22) This part replaces 90014-ZV1-000.

90014-ZV1-010

$0.90

8

BOLT, FLANGE (5X22)

90014-ZV1-010

$0.90

9

WASHER (8MM)

90465-HA0-000

Unavailable

10

CIRCLIP (OUTER) (8MM)

90604-HA0-000

$1.77

11

PIN, DOWEL (8X10)

91103-429-000

$2.51

12

O-RING (8.2X1.5)

91308-MC7-000

$2.10

13

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.03

14

PIN C, DOWEL (4X6.5)

94303-04065

$2.04

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

16

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

17

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

18

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

18

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

19

BOLT, FLANGE (6X35)

95801-06035-08

$1.71
